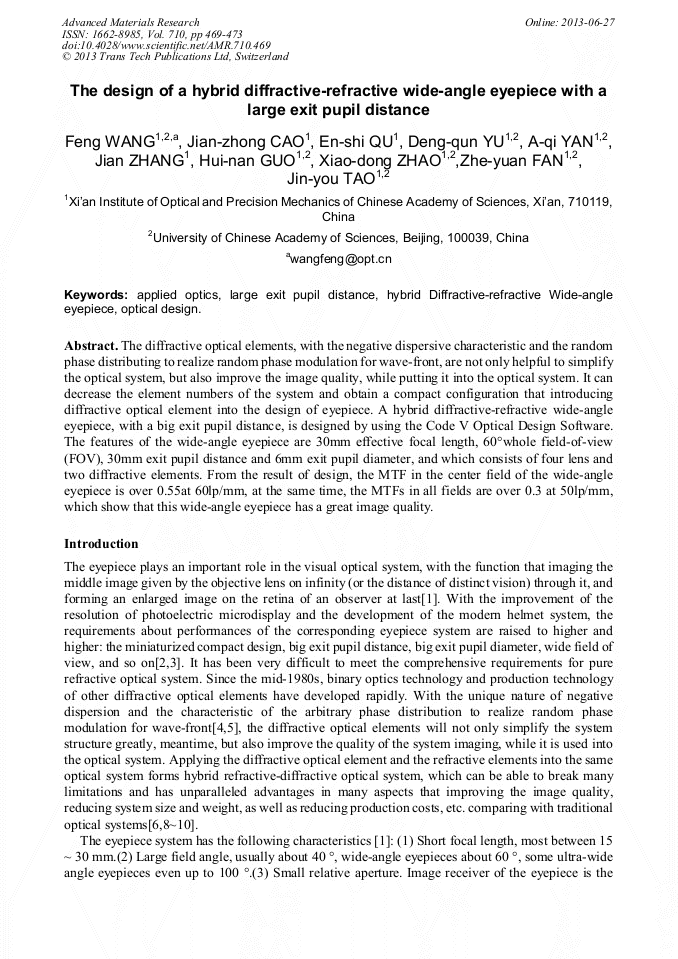

The Design of a Hybrid Diffractive-Refractive Wide-Angle Eyepiece with a Large Exit Pupil Distance

Abstract:

The diffractive optical elements, with the negative dispersive characteristic and the random phase distributing to realize random phase modulation for wave-front, are not only helpful to simplify the optical system, but also improve the image quality, while putting it into the optical system. It can decrease the element numbers of the system and obtain a compact configuration that introducing diffractive optical element into the design of eyepiece. A hybrid diffractive-refractive wide-angle eyepiece, with a big exit pupil distance, is designed by using the Code V Optical Design Software. The features of the wide-angle eyepiece are 30mm effective focal length, 60°whole field-of-view (FOV), 30mm exit pupil distance and 6mm exit pupil diameter, and which consists of four lens and two diffractive elements. From the result of design, the MTF in the center field of the wide-angle eyepiece is over 0.55at 60lp/mm, at the same time, the MTFs in all fields are over 0.3 at 50lp/mm, which show that this wide-angle eyepiece has a great image quality.

• Periodical: Advanced Materials Research (Volume 710)
• Pages: 469-473
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.710.469
• Online since: June 2013
• Authors: Feng Wang, Jian Zhong Cao, En Shi Qu, Deng Qun Yu, A Qi Yan, Jian Zhang, Hui Nan Guo, Xiao Dong Zhao, Zhe Yuan Fan, Jin You Tao
• Keywords: Applied Optics, Hybrid Diffractive-Refractive Wide-Angle Eyepiece, Large Exit Pupil Distance, Optical Design

References

[1] Xu-cang YUAN: Optical Design (Science Publishers, Beijing1983).

[2] Frank J. F.: Proc. SPIE Vol. 3689 (1999), p.178~185.

[3] Bunkenburg J. and Feritz T. A.: Proc. SPIE Vol.3430 (1998), p.41~49.

[4] Yan ZHANG, Jing-juan ZHANG, Guo-hai SITU: Chinese J. Lasers,Vol. 31(2004), p.1183~1187.

[5] Qiao-feng TAN,Ying-bai YAN, Guo-fan JIN et al.: Chinese J. Lasers, Vol. A26, (1999), p.803~807.

[6] Hui-juan ZHANG, Zhao-qi WANG, Chun-shu ZHANG et al.: Journal of Optoelectronics-Laser (in Chinese), Vol. 13 (2002), p.913~915.

[7] Zhi-jing WANG, Pei-sen GU: Handbook of Modern Optical Application technique (China machine press, Beijing 2010).

[8] Michael D. Missig, G. M. Morris: Appl. Opt., Vol. 34 (1995), p.2452~2461.

[9] Hui-juan ZHANG, Zhao-qi WANG, Ru-lian FU et al.: Acta Optica Sinica, Vol. 23(2003), p.85~88.

[10] Qiang SUN, Zhao-qi WANG, Feng-you LI et al.: Optics and Precision Engineering, Vol. 10 (2002), p.121~125.

[11] Focus Software: ZEMAX Optical Design Program User's Guide (ZEMAX Development Corporation, San Diego 2004).

[12] Hui-juan ZHANG: Chinese J. Lasers, Vol. 36(6) (2005), p.856~859..

[13] Guo-fan JIN, Ying-bai YAN, Min-xian WU: Binary Optics (National Defense Industry Press, Beijing 1999).

[14] Robert E.Fischer: Optical System Design (New York 2000).
