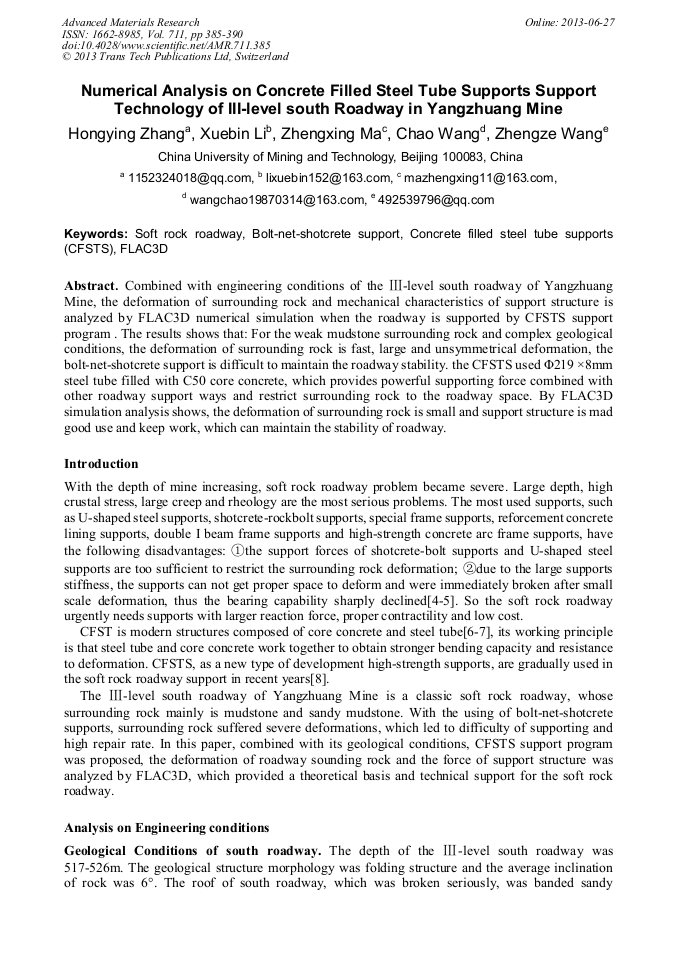

Numerical Analysis on Concrete Filled Steel Tube Supports Support Technology of III-Level South Roadway in Yangzhuang Mine

Abstract:

Combined with engineering conditions of the III-level south roadway of Yangzhuang Mine, the deformation of surrounding rock and mechanical characteristics of support structure is analyzed by FLAC3D numerical simulation when the roadway is supported by CFSTS support program . The results shows that: For the weak mudstone surrounding rock and complex geological conditions, the deformation of surrounding rock is fast, large and unsymmetrical deformation, the bolt-net-shotcrete support is difficult to maintain the roadway stability. the CFSTS used Φ219 ×8mm steel tube filled with C50 core concrete, which provides powerful supporting force combined with other roadway support ways and restrict surrounding rock to the roadway space. By FLAC3D simulation analysis shows, the deformation of surrounding rock is small and support structure is mad good use and keep work, which can maintain the stability of roadway.

• Periodical: Advanced Materials Research (Volume 711)
• Pages: 385-390
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.711.385
• Online since: June 2013
• Authors: Hong Ying Zhang, Xue Bin Li, Zheng Xing Ma, Chao Wang, Zheng Ze Wang
• Keywords: Bolt-Net-Shotcrete Support, Concrete Filled Steel Tube Supports (CFSTS), FLAC-3D, Soft Rock Roadway

References

[1] Putao Li, qizuan Zhang, Shusheng Wang. : China University of Geosciences; Beijing, Vol. 19(2007) p.17~19,in Chinese.

[2] Zirong Yang, Fuxing Jang, Baoliang Zhao.: Geology professional committee of China 2001 conference papers ( 2001.12, Xi an) p.50~55,in Chinese.

[3] Yulin Wang, Mingpeng Zhao, Guocheng Wang et.al: Liaoning Technical University, Vol. 17(1998) p.249~253, in Chinese.

[4] Huiming WANG: Coal Science and Technology, Vol. 36（2008）p.28~55,in Chinese.

[5] Dechuan Yang, Tingjun He.: Mining Industry Research and Development , Vol. 24（2004）p.24～26,in Chinese.

[6] Shaohuai Cai.:Modern steel tube concrete structure (revised edition) [M]. Beijing: People's traffic press(2007).,in Chinese.

[7] Linhai Han.: Concrete filled steel tubular structure, theory and practice [M] 2 Edition, Beijing: Science Press (2007),in Chinese.

[8] Yanfa Gao, Bo Wang, Jun Wang, et al.: Chinese Journal of Rock Mechanics and Engineering, Vol. 29(2010) pp.2604-2609. in Chinese.

[9] Xuebin Li, Guanglong Qu, Wanpeng Huang, et al.: Coal Mining Technology, Vol. 15(2010) p.48~95.in Chinese.

[10] Jingyun Wu, Xuebin Li, Pengpeng MA, et al.: Coal Science and Technology, Vol. 38(2010) p.23~26.in Chinese.

[11] Itasca Consulting Group, Inc. FLAC3D(Fast Lagrangian Analysis of Continua in Three-dimensions), Version 2.1, User manual[Z]. FLAC Consulting Group, Inc, 2002.
