In-Situ Synthesized WC Particles Reinforced Fe-Based Composite Coating by Argon Arc Cladding with Tungsten Powder

Yi Feng Xiao; Tan Ming; Ling Li Peng; Jian Xun Gong; Yue Hui He

doi:10.4028/www.scientific.net/AMR.712-715.378

Paper Titles

Research on Load-Carrying Performances of Magnetic-Fluid Lubrication for Mill Oil-Film Bearing
p.356

Non-Smooth Characteristic on Biological Surface and Development of Bionics Non-Smooth Diamond Bit
p.360

Laser Glazing of Peacock Blue Glaze on Porcelain
p.366

The Temperature-Sensitive Behaviors of SMPU/PNIPAM Semi-IPN Films
p.373

In-Situ Synthesized WC Particles Reinforced Fe-Based Composite Coating by Argon Arc Cladding with Tungsten Powder
p.378

Experimental Study and Modeling of the Zinc Coating Thickness
p.382

Research on the Relationship between Bionic Surface Friction Coefficient and Interface Medium
p.387

Improving the Efficiency of the Cutting Tools Made of Mixed Ceramics by Applying Modifying Nanoscale Multilayered Coatings
p.391

Plating Hard Chrome Plating Alternative Technologies - HVOF Tungsten Carbide Coating
p.395

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 712-715In-Situ Synthesized WC Particles Reinforced...

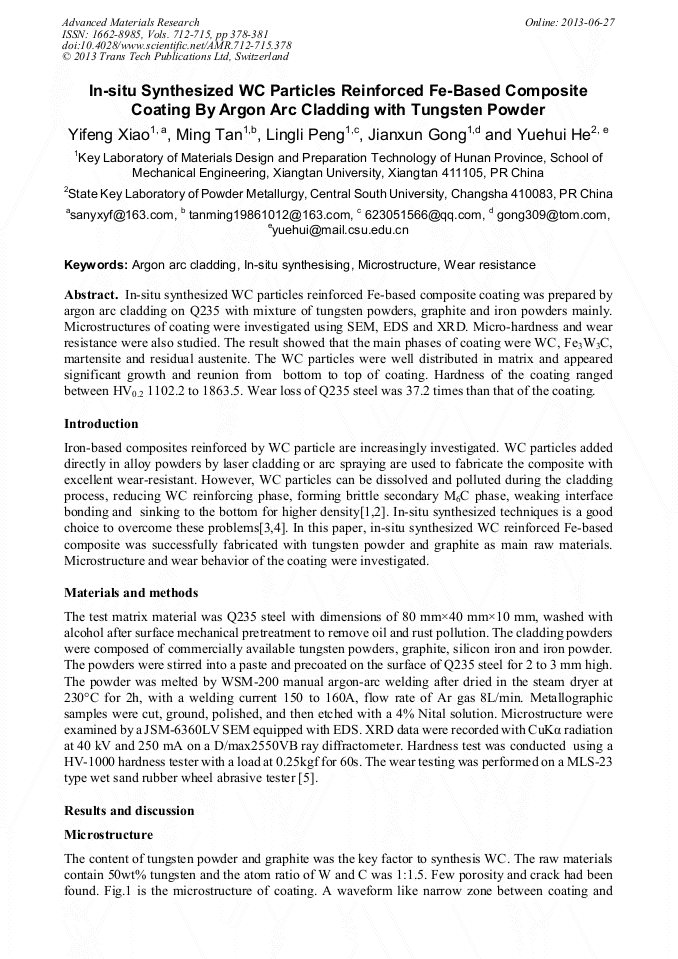

In-Situ Synthesized WC Particles Reinforced Fe-Based Composite Coating by Argon Arc Cladding with Tungsten Powder

Abstract:

In-situ synthesized WC particles reinforced Fe-based composite coating was prepared by argon arc cladding on Q235 with mixture of tungsten powders, graphite and iron powders mainly. Microstructures of coating were investigated using SEM, EDS and XRD. Micro-hardness and wear resistance were also studied. The result showed that the main phases of coating were WC, Fe₃W₃C, martensite and residual austenite. The WC particles were well distributed in matrix and appeared significant growth and reunion from bottom to top of coating. Hardness of the coating ranged between HV_0.2 1102.2 to 1863.5. The wear loss of Q235 steel was 37.2 times than that of the coating.
