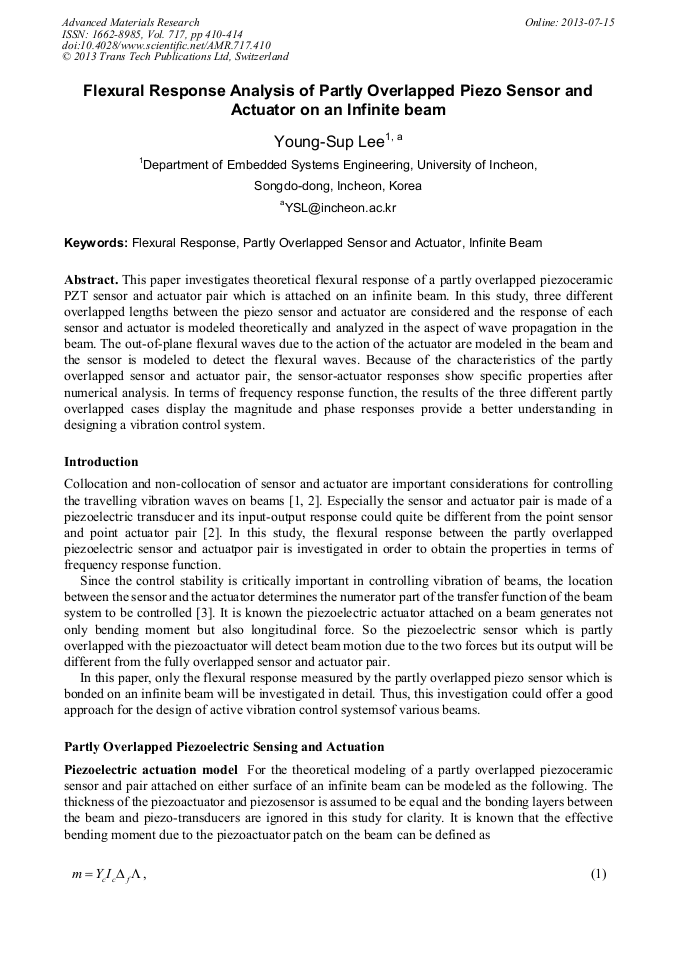

Flexural Response Analysis of Partly Overlapped Piezo Sensor and Actuator on an Infinite Beam

Abstract:

This paper investigates theoretical flexural response of a partly overlapped piezoceramic PZT sensor and actuator pair which is attached on an infinite beam. In this study, three different overlapped lengths between the piezo sensor and actuator are considered and the response of each sensor and actuator is modeled theoretically and analyzed in the aspect of wave propagation in the beam. The out-of-plane flexural waves due to the action of the actuator are modeled in the beam and the sensor is modeled to detect the flexural waves. Because of the characteristics of the partly overlapped sensor and actuator pair, the sensor-actuator responses show specific properties after numerical analysis. In terms of frequency response function, the results of the three different partly overlapped cases display the magnitude and phase responses provide a better understanding in designing a vibration control system.

• Periodical: Advanced Materials Research (Volume 717)
• Pages: 410-414
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.717.410
• Online since: July 2013
• Authors: Young Sup Lee
• Keywords: Flexural Response, Infinite Beam, Partly Overlapped Actuator, Partly Overlapped Sensor

References

[1] C. K. Lee, "Theory of laminated piezoelectric plates for the design of distributed sensors/actuators. Part I: Governing equations and reciprocal relationships," Journal of Acoustical Society of America, vol. 87 no. 3 (1990), pp.1144-1158.

DOI: 10.1121/1.398788

[2] Y.-S. Lee, P. Gardonio and S. J. Elliott, "Coupling analysis of a matched piezoelectric fluoride sensor and actuator pair for vibration control of a smart beam," Journal of Acoustical Society of America, vol. 111 no. 6 (2002), pp.2715-2726.

DOI: 10.1121/1.1476921

[3] S. Y. Yang and W. H. Huang, "Is a collocated piezoelectric sensor/actuator pair feasible for an intelligent beam," Journal of Sound and Vibration, vol. 216 no. 3 (1998), pp.529-538..

DOI: 10.1006/jsvi.1998.1753

[4] M. J. Brennan, S. J. Elliott, and R. J. Pinnington, " The dynamic coupling between piezoceramic actuators and a beam," Journal of Acoustical Society of America, vol. 102 no. 4 (1997), pp.1931-1942.

DOI: 10.1121/1.419687
