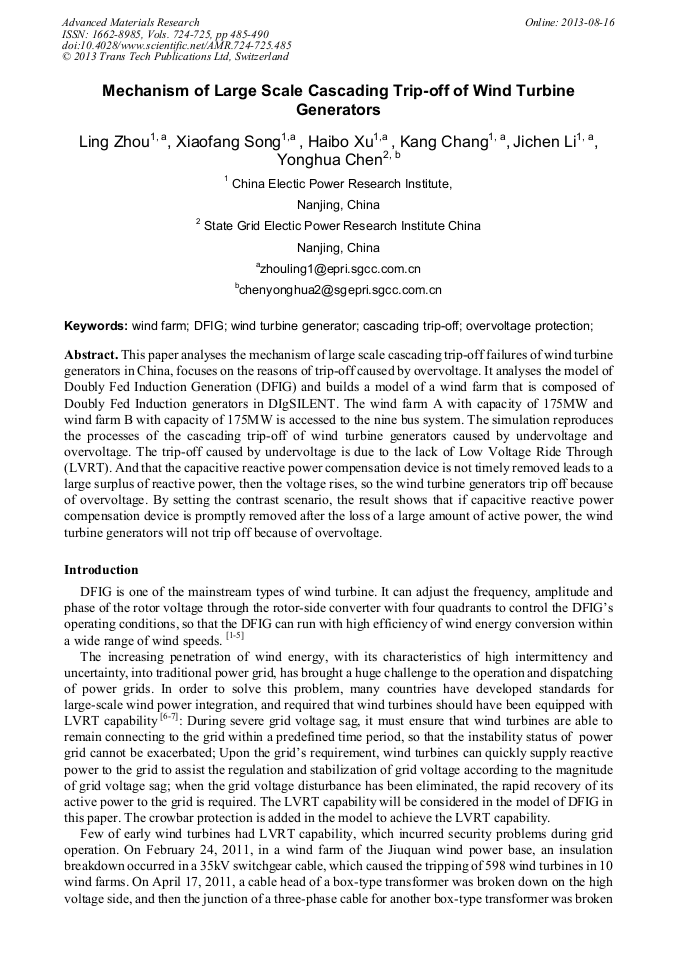

Mechanism of Large Scale Cascading Trip-Off of Wind Turbine Generators

Abstract:

This paper analyses the mechanism of large scale cascading trip-off failures of wind turbine generators in China, focuses on the reasons of trip-off caused by overvoltage. It analyses the model of Doubly Fed Induction Generation (DFIG) and builds a model of a wind farm that is composed of Doubly Fed Induction generators in DIgSILENT. The wind farm A with capacity of 175MW and wind farm B with capacity of 175MW is accessed to the nine bus system. The simulation reproduces the processes of the cascading trip-off of wind turbine generators caused by undervoltage and overvoltage. The trip-off caused by undervoltage is due to the lack of Low Voltage Ride Through (LVRT). And that the capacitive reactive power compensation device is not timely removed leads to a large surplus of reactive power, then the voltage rises, so the wind turbine generators trip off because of overvoltage. By setting the contrast scenario, the result shows that if capacitive reactive power compensation device is promptly removed after the loss of a large amount of active power, the wind turbine generators will not trip off because of overvoltage.

• Periodical: Advanced Materials Research (Volumes 724-725)
• Pages: 485-490
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.724-725.485
• Online since: August 2013
• Authors: Ling Zhou, Xiao Fang Song, Hai Bo Xu, Kang Chang, Ji Chen Li, Yong Hua Chen
• Keywords: Cascading Trip-Off, Double Fed Induction Generation (DFIG), Overvoltage Protection, Wind Farm, Wind Turbine Generator

References

[1] Hong liang, ZHAO Haixiang, CHI Yongning, et al. "Requirement for LVRT Capability of Wind Turbine Generator in Power System", Power system technology, 2007,31(7):79-82.

[2] Yan Gangui, Wang Maochun, Mu Gang, et al. "Modeling of Grid-Connected Doubly-Fed Induction Generator for Reactive Power Static Regulation Capacity Study", Transactions of China Electrotechnical Society, 2008,23(7):98-104.

[3] Case C. "Connecting Wind Farms to the Grid-w hat You Need to Know", Vancouver, Canada: 2006.

[4] LI Mei, LI Jianlin, ZHAO Bin, et al. "Comparison of Response of Wind Turbine with DFIG During Different Grid Voltage Dips", High Voltage Engineering, 2008,34(4):777-782.

[5] LIANG Liang, LI Jianlin, XU Honghua, "Reactive Power Control Strategy for Doubly-Fed Induction Wind Power Generation System Under Fault in Power Network", Power system technology, 2008,32(11):70-73.

DOI: 10.1109/mmit.2008.45

[6] ZHANG Xianping, "Study on Low Voltage Ride Through for Direct-drive VSCF Wind Power System" High-power converter technology, 2010(4):28-31.

[7] HU Shuju, LI Jianlin, XU Honghua. "Analysis on the Low-voltage-ride-through Capability of Direct-drive Permanent Magnetic Generator Wind Turbines", Automation of electric power systems, 2007,31(17):73-77.

DOI: 10.1109/ipemc.2009.5157770

[8] LI Jianlin, XU Honghua. "Wind power system low voltage ride through technology", China machine press,2008.

[9] Wang jing, Weng guoqing, Zhang youbin. "Simulation and application of power system based on MATLAB/SIMULINK", Xi'an University of Electronic Science and Technology press, 2008.

[10] CUI Yang, YAN Gangui, MENG Lei, et al. "Analysis on Abnormal Disconnection of Doubly Fed Induction Generator Wind Turbines From Power Grid and Its Demand on Reactive Power", Power system technology, 2011,35(1):158-163.

DOI: 10.1007/978-3-658-06882-0_6
