Strength Analysis of Bolt Connection on Yaw Gear of the MW Wind Turbine Generator System

Abstract:

The 3D model of bolt connection between flange and yaw gear was established in Pro/E and pre-processed in Hypermesh. Then build the contact model of bolts in ABAQUS and analyzed the statics performance by taking different preload in two kinds of working condition, which stimulated the preload and limit load condition. The results show that, through comparing the stress strength under different preload condition, the author puts forward a value range of preload for reference: F_v = (0.6~0.8) A_S · σ_p0.2. The research provides a reference for strength check, fatigue analysis etc. of the bolt connection on yaw gear of the MW wind turbine generator system and other bolt connection systems, to facilitate further optimal design.

You might also be interested in these eBooks

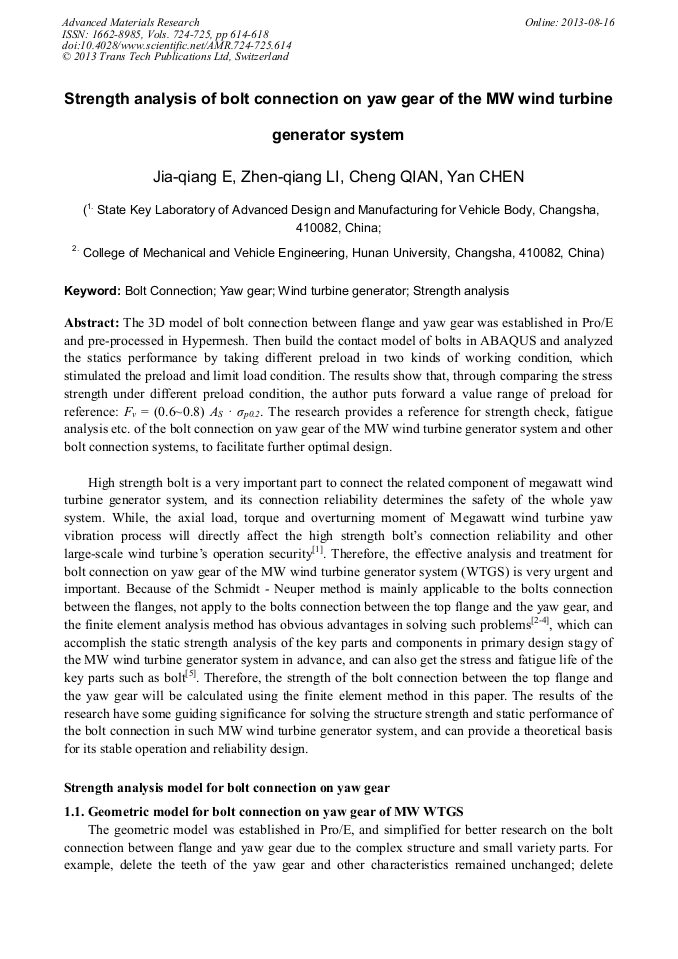

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 724-725)

Pages:

614-618

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.724-725.614

Citation:

Cite this paper

Online since:

August 2013

Authors:

Jia Qiang E, Zhen Qiang Li, Cheng Qian, Yan Chen

Keywords:

Bolt Connection, Strength Analysis, Wind Turbine Generator, Yaw Gear

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Göncz, P. & Glodež, S．CALCULATION MODEL FOR PRE-STRESSED BOLTED JOINTS OF SLEWING BEARINGS[J]. ADVANCED ENGINEERING, 2009, 3(2): 175-186.

Google Scholar

[2] Tomohiro NARUSE, Yoji SHIBUTANI. Equivalent Stiffness Evaluations of Clamped Plates in Bolted Joints under Loading[J]. Journal of Solid Mechanics and Materials Engineering, 2010, 4(12): 1791-1805.

DOI: 10.1299/jmmp.4.1791

Google Scholar

[3] Dario Croccolo, Massimiliano De Agostinis, Nicolò Vincenzi. A contribution to the selection and calculation of screws in high duty bolted joints[J]. International Journal of Pressure Vessels and Piping, 2012, 96: 38-48.

DOI: 10.1016/j.ijpvp.2012.05.010

Google Scholar

[4] Jamel Chakhari, Alain Daidié, etc. Numerical model for two-bolted joints subjected to compressive loading[J]. Finite Elements in Analysis and Design, 2008, 44(4): 162-173.

DOI: 10.1016/j.finel.2007.11.010

Google Scholar

[5] Chen Zhen. Study of High Strength Bolt Jointon Wind Turbine[D]. Chong Qing: Chong Qing University, 2011: 43-51.

Google Scholar

[6] Chaib, Z; Daidie, A & Leray, D. screw behavior in large diameter slewing bearing assemblies: numerical and experimental analyses[J], international journal on interactive design and manufacturing, 2007, 1(1): 21-31.

DOI: 10.1007/s12008-007-0003-7

Google Scholar
