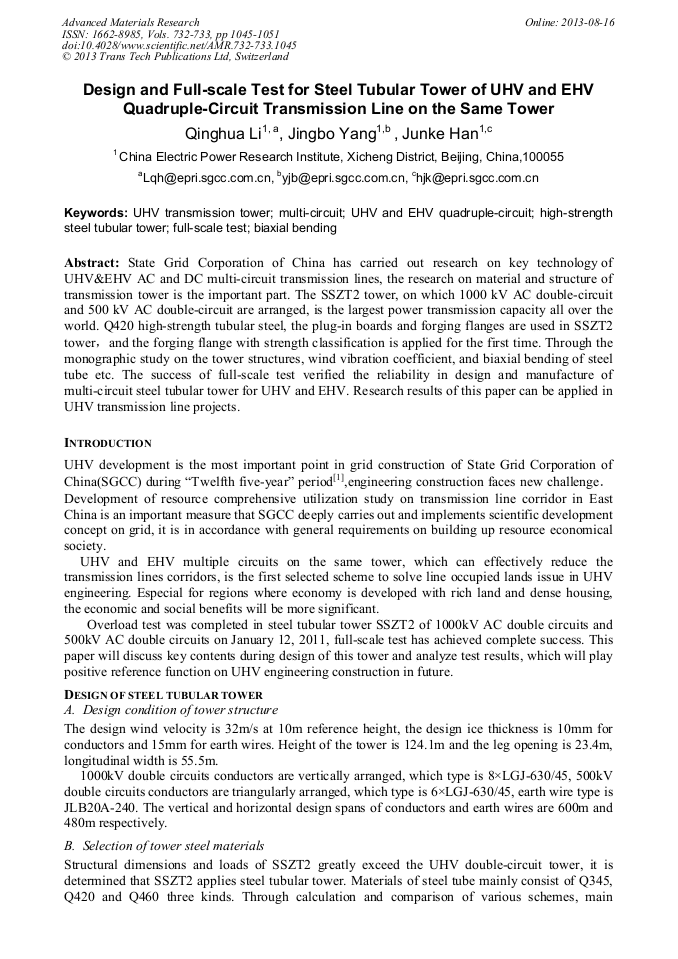

Design and Full-Scale Test for Steel Tubular Tower of UHV and EHV Quadruple-Circuit Transmission Line on the same Tower

Abstract:

State Grid Corporation of China has carried out research on key technology of UHV&EHV AC and DC multi-circuit transmission lines, the research on material and structure of transmission tower is the important part. The SSZT2 tower, on which 1000 kV AC double-circuit and 500 kV AC double-circuit are arranged, is the largest power transmission capacity all over the world. Q420 high-strength tubular steel, the plug-in boards and forging flanges are used in SSZT2 tower,and the forging flange with strength classification is applied for the first time. Through the monographic study on the tower structures, wind vibration coefficient, and biaxial bending of steel tube etc. The success of full-scale test verified the reliability in design and manufacture of multi-circuit steel tubular tower for UHV and EHV. Research results of this paper can be applied in UHV transmission line projects.

• Periodical: Advanced Materials Research (Volumes 732-733)
• Pages: 1045-1051
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.732-733.1045
• Online since: August 2013
• Authors: Qing Hua Li, Jing Bo Yang, Jun Ke Han
• Keywords: Biaxial Bending, Full-Scale Test, High-Strength Steel Tubular Tower, Multi-Circuit, UHV and EHV Quadruple-Circuit, UHV Transmission Tower

References

[1] Jingyao Hu, Bai Lei and Hui Ming, Modern power grid system in national strategy, State Grid, vol. 4, pp.40-42, 2011(In Chinese).

[2] Maohua Li, Jianyao Dong and Jingbo Yang etc, Full-scale test for tubular steel tower applied in UHV AC double-circuit transmission line, Proceedings of the CSEE, vol. 29, pp.102-107, 2009(In Chinese).

[3] State Grid Corporation of China, Technical regulation for conformation design of steel tubular towers of transmission lines. China Electric Power Press, 2009(In Chinese).

[4] Guoqiang Wu, Changhua He and Jingdu Geng etc, Research on bolt calculation in forging flanges used in steel tube tower, Electric Power Construction, vol. 30, pp.1-5, 2009(In Chinese).

[5] Qinghua Li and Jingbo Yang, Study on rapid modeling of dynamic characteristic analysis for UHV transmission towers, Electric Power Construction, vol. 27, pp.5-7, 2006(In Chinese).

[6] Hongwei Xiao, Xila Li and Zonggao Liao etc, Discussion on calculation of transmission line wind load adiustment coefficients, Electric Power Construction, vol. 28, pp.33-38, 2007(In Chinese).

[7] State Grid Corporation of China, Provisional technical code of designing 1000kV overhead transmission line. China Electric Power Press, 2008(In Chinese).

[8] Ministry of housing and urban-rural development of the People's Republic of China and General administration of quality supervision, inspection and quarantine of the People's Republic of China, Load code of the design of building structures, China Architecture & Building Press, 2006(In Chinese).

[9] Xiangting Zhang, Wind Engineering, China Architecture & Building Press, 2006(In Chinese).

[10] Junke Han, Jingbo Yang and Fengli Yang etc, Value selection of slenderness ratio and diameter-thickness ratio of steel tube for 1000 kV transmission steel tubular tower legs, Power System Technology, vol. 33, pp.17-20, 2009(In Chinese).

[11] Ministry of housing and urban-rural development of the People's Republic of China and General administration of quality supervision, inspection and quarantine of the People's Republic of China, Code for design of steel structures, China Planning Press, 2003(In Chinese).

[12] Baiping Dong, Yiyi Chen. Stability capacity calculation of circular steel tube beam-columns under biaxial bending, Industrial Construction, vol. 40, pp.107-111, 2010(In Chinese).

[13] Jia Cui, MingZhong Wei and Xiyuan Zhao etc. Understanding and application of code for design of steel structures, China Architecture & Building Press, 2004(In Chinese).
