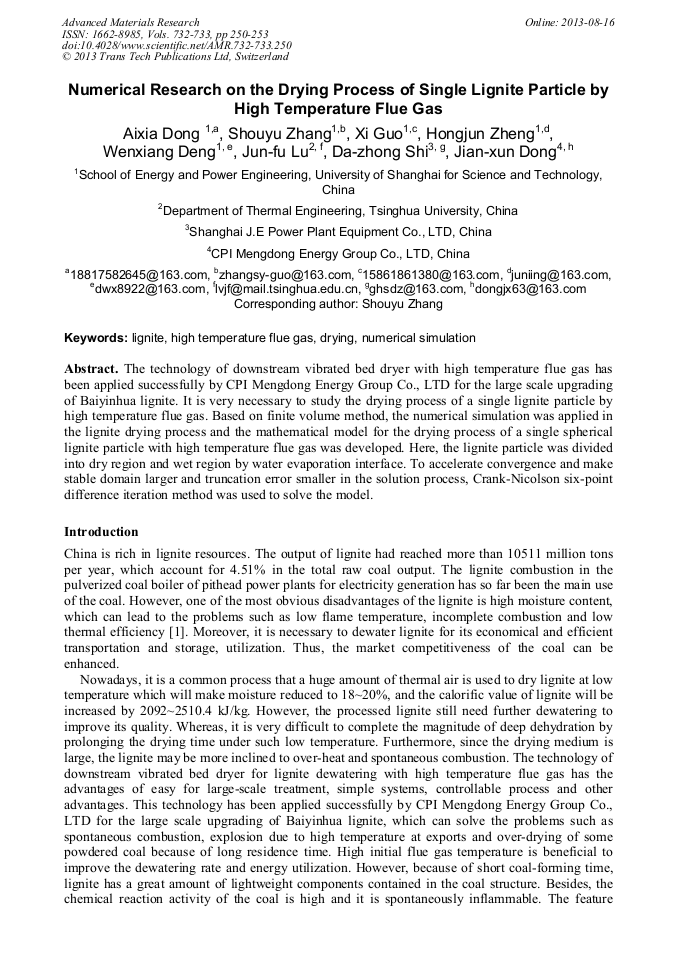

Numerical Research on the Drying Process of Single Lignite Particle by High Temperature Flue Gas

Abstract:

The technology of downstream vibrated bed dryer with high temperature flue gas has been applied successfully by CPI Mengdong Energy Group Co., LTD for the large scale upgrading of Baiyinhua lignite. It is very necessary to study the drying process of a single lignite particle by high temperature flue gas. Based on finite volume method, the numerical simulation was applied in the lignite drying process and the mathematical model for the drying process of a single spherical lignite particle with high temperature flue gas was developed. Here, the lignite particle was divided into dry region and wet region by water evaporation interface. To accelerate convergence and make stable domain larger and truncation error smaller in the solution process, Crank-Nicolson six-point difference iteration method was used to solve the model.

• Periodical: Advanced Materials Research (Volumes 732-733)
• Pages: 250-253
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.732-733.250
• Online since: August 2013
• Authors: Ai Xia Dong, Shou Yu Zhang, Xi Guo, Hong Jun Zheng, Wen Xiang Deng, Jun Fu Lu, Da Zhong Shi, Jian Xun Dong
• Keywords: Drying, High Temperature Flue Gas, Lignite, Numerical Simulation

References

[1] Yuehua Gong. Coal resources in Inner Mongolia and its application. Coal Processing & Comprehensive Utilization (in Chinese), Vol.6 (2005), pp.17-18.

[2] Martin H, saleh A H. The drying of fine granular material in a pneumatic drier. International Chemical Engineering, Vol.24 (1984), pp.13-22.

[3] Pelegrina A H, Crapiste G H. Modeling the pneumatic drying of food particles. Journal of Food Engineering, Vol.48 (2001), pp.301-310.

DOI: 10.1016/s0260-8774(00)00170-9

[4] Choi Jeonghoo. Kim Minha Kim and Jihye. Drying characteristics of bean-curd refuse. Journal of the Taiwan Institute of Chemical Engineers, Vol.41 (2009), pp.157-161.

DOI: 10.1016/j.jtice.2009.06.001

[5] Malcolm J. McIntosh. Mathematical model of drying in a brown coal mill system 1. Formulation of model. Fuel, Vol.55 (1976), pp.47-52.

DOI: 10.1016/0016-2361(76)90069-7

[6] Xiujun Wang, Shouyu Zhang and Dingmao Peng. Application of the drying mechanism of porous media in the thermaldehydaration for lignite. Coal Conversion (in Chinese), Vol.34 (2011), pp.82-86.

[7] Aixia Dong, Shouyu Zhang and Xi Guo. Research on Single Lignite Particle Drying Process by Hot Gas. Coal Conversion (in Chinese). Vol.36 (2013), pp.59-64.
