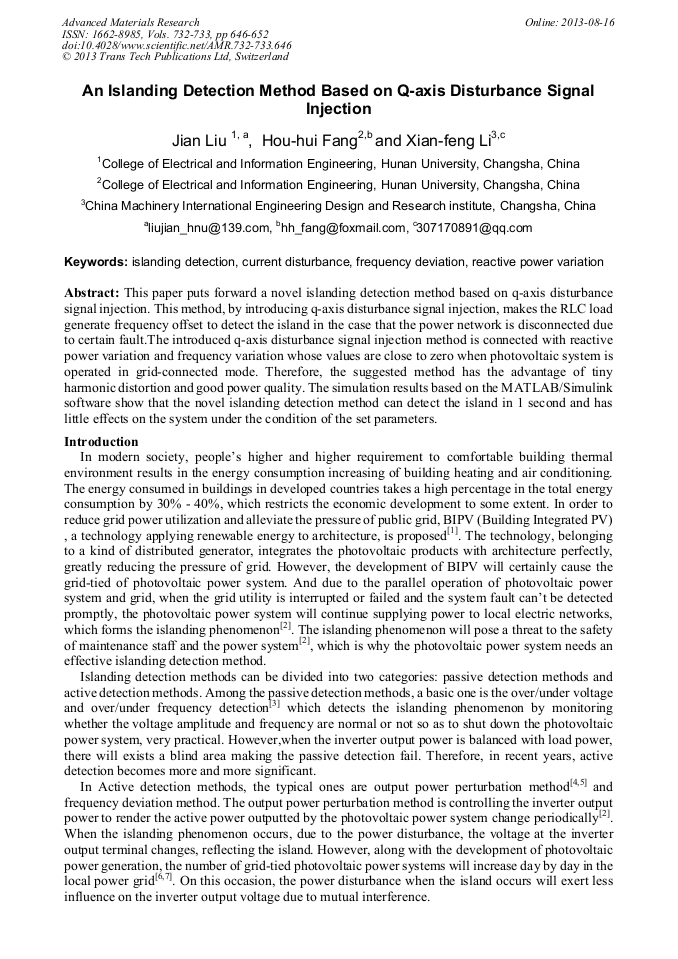

An Islanding Detection Method Based on Q-Axis Disturbance Signal Injection

Abstract:

This paper puts forward a novel islanding detection method based on q-axis disturbance signal injection. This method, by introducing q-axis disturbance signal injection, makes the RLC load generate frequency offset to detect the island in the case that the power network is disconnected due to certain fault.The introduced q-axis disturbance signal injection method is connected with reactive power variation and frequency variation whose values are close to zero when photovoltaic system is operated in grid-connected mode. Therefore, the suggested method has the advantage of tiny harmonic distortion and good power quality. The simulation results based on the MATLAB/Simulink software show that the novel islanding detection method can detect the island in 1 second and has little effects on the system under the condition of the set parameters.

• Periodical: Advanced Materials Research (Volumes 732-733)
• Pages: 646-652
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.732-733.646
• Online since: August 2013
• Authors: Jian Liu, Hou Hui Fang, Xian Feng Li
• Keywords: Current Disturbance, Frequency Deviation, Islanding Detection, Reactive Power Variation

References

[1] SHI Tao,SHEN Jiayan,JIANG Jinyang. Current application about building-Integrated photovoltaic [J]. New Building Materialb，2011(11):38-41.

[2] ZHANG Chao.SHEN Jiayan,JIANG Jinyang. The study of photovoltaic (pv) grid generation system MPPT and island testing technology [D].Hangzhou:Zhejiang University,2006.

[3] GUO Xiaoqiang,ZHAO Qinglin,WU Weiyang.Islanding detection method for photovoltaic grid-connected power system [J].Transactions of China Electrotechnical Society,2007,22 (4):157—161.

[4] REN Biying,SUN Xiangdong,ZHONG Yanru,et a1.A novel current-disturbing method for islanding detection in single-phase distributed power generation systems[J].Transactions of China Electrotechnical Society,2009,24(7):157—163.

DOI: 10.1109/peam.2011.6134821

[5] CHEN Weimin,CHEN Guocheng,CUI Kaiyong,et a1. Running control of grid-connected dispersed generation system in islanding situation[J].Automation of Electric Power Systems,2008,32(9):88—91.

[6] LIU Fangrui,YU Mi,ZHANG Yu,et a1.Islanding detection evaluation for active frequency drifting methods in multiple photovoltaic grid-connected converters[J].Proceedings of the CSEE,2009,29(12):47-51.

DOI: 10.1109/ipemc.2009.5157757

[7] LIU Furong,KANG Yong,DUAN Shanxu,et a1.Parameter optimization of active frequency drift islanding detection method [J].Proceedings of the CSEE,2008,28(1):95—99.

[8] Zhihong Ye,Amol Kolwalkar,Yu Zhang,Pengwei Du,and Reigh Walling."Evaluation of Anti-Islanding Schemes Based on Non-detection Zone Concept"[J]. IEEE Transactions on power electronics,vol. 19,no. 5,p.1171–1176,September 2004.

DOI: 10.1109/tpel.2004.833436

[9] G. Hernandez-Gonzalez and R. Iravani,"Current injection for active islanding detection of electronically-interfaced distributed resources"[J].IEEE Trans. Power Del.,vol. 21,no. 3,pp.1698-1705，July 2006.

DOI: 10.1109/tpwrd.2006.876980

[10] IEEE,Std. 1547,"IEEE standard for interconnecting distributed resources with electric power systems,"2003.

DOI: 10.1109/ieeestd.2008.4816078

[11] T.T. Ma,"Novel voltage stability constrained positive feedback anti-islanding algorithms for the inverter-based distributed generator systems," IET Renew. Power Gener., vol.4, no. 2, pp.176-185, March 2010.

DOI: 10.1049/iet-rpg.2009.0056

[12] Faa-Jeng Lin, Kuang-Hsiung Tan, Jian-Hsing Chiu."Active Islanding Detection Method Using Wavelet Fuzzy Neural Network,"WCCI 2012 IEEE World Congress on Comuputational Intelligence June,10-15,2012-Brisbance,Australia.

DOI: 10.1109/fuzz-ieee.2012.6251276
