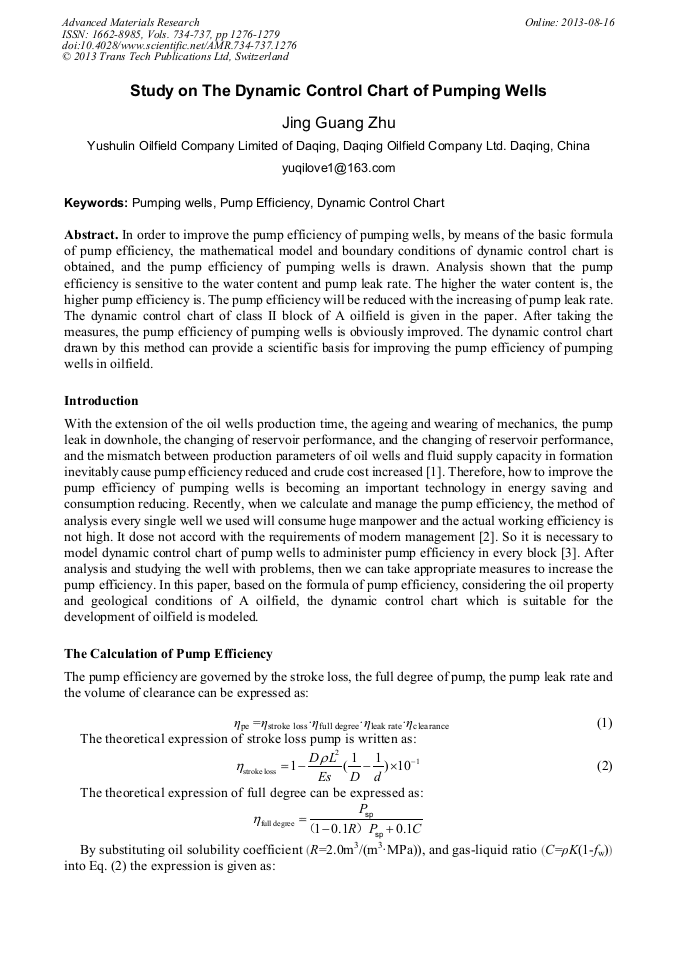

Study on the Dynamic Control Chart of Pumping Wells

Abstract:

In order to improve the pump efficiency of pumping wells, by means of the basic formula of pump efficiency, the mathematical model and boundary conditions of dynamic control chart is obtained, and the pump efficiency of pumping wells is drawn. Analysis shown that the pump efficiency is sensitive to the water content and pump leak rate. The higher the water content is, the higher pump efficiency is. The pump efficiency will be reduced with the increasing of pump leak rate. The dynamic control chart of class II block of A oilfield is given in the paper. After taking the measures, the pump efficiency of pumping wells is obviously improved. The dynamic control chart drawn by this method can provide a scientific basis for improving the pump efficiency of pumping wells in oilfield.

• Periodical: Advanced Materials Research (Volumes 734-737)
• Pages: 1276-1279
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.734-737.1276
• Online since: August 2013
• Authors: Jing Guang Zhu*
• Keywords: Dynamic Control Chart, Pump Efficiency, Pumping Wells

References

[1] Fazhen Yu, Hongtao Hou and Zhibin Lin. Diagnostic technology of rod-pumped well condition in Zhuangxi Oilfield. Fault-Block Oil & Gas Field, Vol. 3 (2009) pp.45-47 (in Chinese).

[2] Guofu Sheng, Peng Ye, Yunfei Li and Jian DING. Development and Application of Rational Submersion Degree Control Diagram in Screw Pumping Wells. Journal of Oil and Gas Technology, S1 (2005) pp.21-24 (in Chinese).

[3] Yongqiang Gu, Jianjun Li, Qianze Wang and Lijun Wu. Application of Water Well Performance Control Plot in Stabilizing Oil Production by Water Control. OIL & GAS RECOVERY TECHINOLOGY, Vol. 1 (1996) pp.62-67 (in Chinese).

[4] Zengshun Sheng, Wenhua Li. The Option Table of Pumping Clearance. China Petroleum Machinery, Vol. 22 (1994) pp.29-38 (in Chinese).
