Shape Optimization of a Small Bus Steering Knuckle Considering a Fatigue Load

Abstract:

Finite element analysis was accomplished for a steering knuckle component of a small bus to see whether the static and fatigue strength requirements were satisfied or not. The knuckle was modeled with ANSYS 10-node quadratic elements. The cyclic fatigue load was applied and Soderberg criteria were applied to check the fatigue life. The knuckle structure has an infinite life (10^-6 cycle) judging from the fatigue analyses. Shape optimization based on the gradient based method has been performed in order to find out the knuckle shape that has a minimum weight and satisfies the static and fatigue strength requirements. As a result of shape optimization, the weight of the steering knuckle was reduced 8%.

You might also be interested in these eBooks

Materials, Mechatronics and Automation II

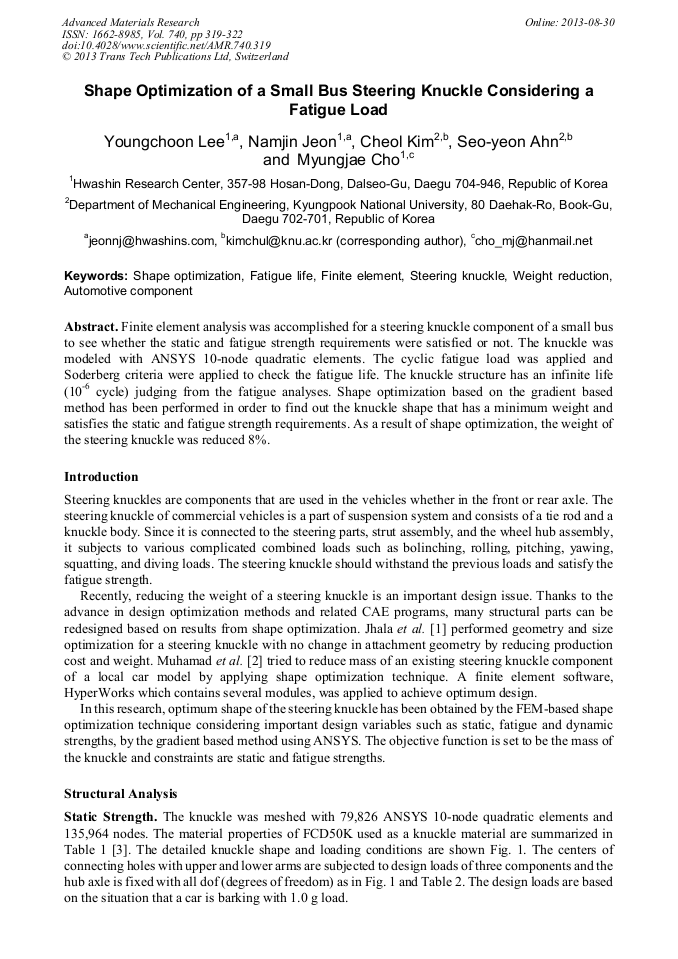

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 740)

Pages:

319-322

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.740.319

Citation:

Cite this paper

Online since:

August 2013

Authors:

Young Choon Lee, Nam Jin Jeon, Cheol Kim, Seo Yeon Ahn, Myung Jae Cho

Keywords:

Automotive Component, Fatigue Life, Finite Element, Shape Optimization, Steering Knuckle, Weight Reduction

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] R. L. Jhala, K. D. Kothari and S.S. Khandare: Int'l J. Adv. Engr. & Appl., ( Jan. 2010), p.322.

Google Scholar

[2] W. M. W. Muhamad, E. Sujatmika, H. Hamid and F. Tarlochan: Int'l J. Adv. Comp.Sci., Vol. 2, No. 2, (2011), pp.65-69.

Google Scholar

[3] W. Y. Rha, S. H. Lee and S. K. Oh, "A Study on the Shape Optimization of the Knuckle by the Finite Element Analysis", Journal of the Korea Society For Power System Engineering, Vol. 12, No. 1, pp.53-57, (2008)

Google Scholar

[4] E. A. Azrulhisham, Y. M. Asri, A. W. Dzuraidah, N. M. Nik Abdullah, A. Shahrum, C. H. Hassan, "Evaluation of Fatigue Life Reliability of Steering Knuckle Using Pearson Distribution Model", International Journal of Quality, Static, and Reliability, Vol. 2010, Article ID 816407, p.8, (2010)

DOI: 10.1155/2010/816407

Google Scholar

[5] Y. C. Park, J. H. Kang, D. H. Lee, S. H. Oh, W. D. Ko, K. H. Lee, "Shape Optimization of a Knuckle using the Design of Experiments", Key Engineering Materials, Vol. 345-346, pp.905-908, (2007)

DOI: 10.4028/www.scientific.net/kem.345-346.905

Google Scholar
