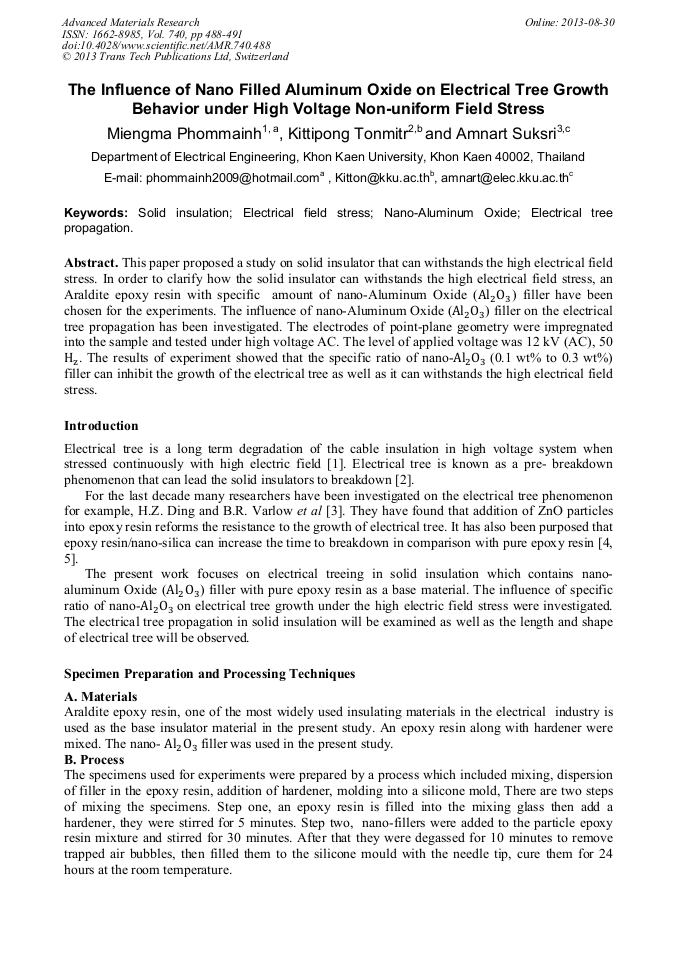

The Influence of Nanofilled Aluminum Oxide on Electrical Tree Growth Behavior under High Voltage Non-Uniform Field Stress

Abstract:

This paper proposed a study on solid insulator that can withstands the high electrical field stress. In order to clarify how the solid insulator can withstands the high electrical field stress, an Araldite epoxy resin with specific amount of nanoAluminum Oxide (Al2O3) filler have been chosen for the experiments. The influence of nanoAluminum Oxide (Al2O3) filler on the electrical tree propagation has been investigated. The electrodes of point-plane geometry were impregnated into the sample and tested under high voltage AC. The level of applied voltage was 12 kV (AC), 50 Hz. The results of experiment showed that the specific ratio of nanoAl2O3 (0.1 wt% to 0.3 wt%) filler can inhibit the growth of the electrical tree as well as it can withstands the high electrical field stress.

You might also be interested in these eBooks

Materials, Mechatronics and Automation II

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 740)

Pages:

488-491

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.740.488

Citation:

Cite this paper

Online since:

August 2013

Authors:

Miengma Phommainh, Kittipong Tonmitra, Amnart Suksri

Keywords:

Electrical Field Stress, Electrical Tree Propagation, Nanoaluminum Oxide, Solid Insulation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] L. A. Dissado and J. C. Fothergill, Electrical Degradation and Breakdown in Polymers, G. C Stevens, Ed., Peter Peregrinus, London (1992).

Google Scholar

[2] R. Huuva1, V. Englund2, S.M. Gubanski1 and T. Hjertberg2, A Versatile Method to Study Electrical Treeing in Polymeric Materials, IEEE Dielectrics and Electrical Insulation, Sweden, Vol. 16, pp.171-178, 20 February, (2009).

DOI: 10.1109/tdei.2009.4784565

Google Scholar

[3] H. Z. Ding and B. R. Varlow, Effect of Nano Fillers on Electrical Treeing in Epoxy Resin Subjected to AC Voltage, IEEE Conference on Electrical Insulation and Dielectric Phenomena, Boulder, Colorado, USA, October 17-20, 2004, pp.332-335.

DOI: 10.1109/ceidp.2004.1364255

Google Scholar

[4] T. Imai, F. Sawa, T. Ozaki, T. Shimizu, S. Kuge, M. Kozako, and T. Tanaka, Effect of Epoxy/Filler Interface on Properties of Nano or Micro-composites, IEEJ Transactions on Fundamentals of Materials, Vol. 126, No. 2, pp.84-91, (2006).

DOI: 10.1541/ieejfms.126.84

Google Scholar

[5] Sridhar Alapati1 and M. Joy Thomas2, Electrical Treeing in Polymer nanocomposites, IEEE Fifteeth National Power System Conference (NPSC), IIT Bombay, December, (2008).

Google Scholar
