Silica-Reinforced Natural Rubber with Epoxidized Low Molecular Weight Rubber as a Compatibilizer

Prachid Saramolee; Kannika Sahakaro; Natinee Lopattananon; Wilma Dierkes; Jacques W.M. Noordermeer

doi:10.4028/www.scientific.net/AMR.747.522

Paper Titles

Synthesis and Characterization of Supramolecular Elastomers from Polyacids Composed of Vegetable Oils
p.505

Functional Modification of Bamboo Rayon (Cellulose) Fabric to Render it Antibacterial and UV Protective
p.509

Synthesis of High Quality Graphene Films by Atmospheric Pressure CVD and their Application in Laser Q-Switching
p.514

Photocatalytic Recovery of Noble Metals from Waste Solutions Using a Polyoxometallate (POM)-Based Hybrid Photocatalyst
p.518

Silica-Reinforced Natural Rubber with Epoxidized Low Molecular Weight Rubber as a Compatibilizer
p.522

Investigation of ZnO Buffer for the Optical and Electrical Characteristics of Polymer/Carbon Nanotube Composite Sol Deposited on Flexible Substrates
p.526

Comparison of Coupling Effectiveness among Amino-, Chloro-, and Mercapto Silanes in Chloroprene Rubber
p.530

Intermetallic Electrode Structure Produced by Thermal Spraying of Water-Atomized Cu-Sn Powders
p.534

Influence of Natural Rubber/Poly (3-Trimethoxysilyl Propyl Methacrylate) Core-Shell Compatibilizer on Dynamic, Mechanical and Morphological Properties of PMMA/ENR Blends
p.538

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 747Silica-Reinforced Natural Rubber with Epoxidized...

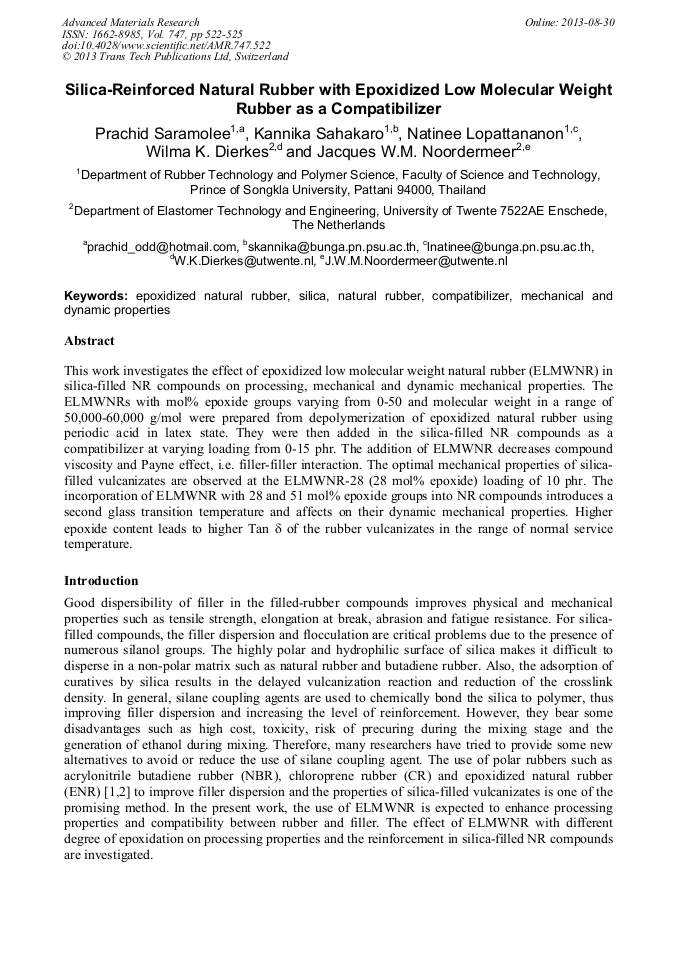

Silica-Reinforced Natural Rubber with Epoxidized Low Molecular Weight Rubber as a Compatibilizer

Abstract:

This work investigates the effect of epoxidized low molecular weight natural rubber (ELMWNR) in silica-filled NR compounds on processing, mechanical and dynamic mechanical properties. The ELMWNRs with mol% epoxide groups varying from 0-50 and molecular weight in a range of 50,000-60,000 g/mol were prepared from depolymerization of epoxidized natural rubber using periodic acid in latex state. They were then added in the silica-filled NR compounds as a compatibilizer at varying loading from 0-15 phr. The addition of ELMWNR decreases compound viscosity and Payne effect, i.e. filler-filler interaction. The optimal mechanical properties of silica-filled vulcanizates are observed at the ELMWNR-28 (28 mol% epoxide) loading of 10 phr. The incorporation of ELMWNR with 28 and 51 mol% epoxide groups into NR compounds introduces a second glass transition temperature and affects on their dynamic mechanical properties. Higher epoxide content leads to higher Tan δ of the rubber vulcanizates in the range of normal service temperature.
