Preparation of Ultrafine Zirconia Suspension Using Glutin-Urea Gelcasting System

Jin Feng Wang; Jiao Du; Xiu Dong Zhu

doi:10.4028/www.scientific.net/AMR.750-752.488

Paper Titles

The Galvanic Corrosion Behaviors of 13Cr-N80 Steel Couples in NaCl Solution at Different Temperature
p.467

Dendrite Grow up Relations with Cooling Speed
p.473

The Effect of Precipitate Agent in Co-Precipitation Synthesis Y₃Al₅O₁₂ and Y₃Fe₅O₁₂ Powders
p.479

Preparation of Mullite-Aluminum Titanate-Cordierite Multiphase Ceramics
p.484

Preparation of Ultrafine Zirconia Suspension Using Glutin-Urea Gelcasting System
p.488

Dielectric Properties of Na₂O Doped Cao-B₂O₃-SiO₂ System Glass-Ceramics
p.492

Two Morphologies of Tetragonal Phase in the MgO-PSZ Ceramics
p.497

Study on Defect Complexes in High-K Sr and Zr Co-Doped BaTiO₃ Ceramics
p.501

Effect of Sintering Temperatures and Ba/Ti Ratio on Dielectric Properties of BaTiO₃ Ceramic
p.506

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 750-752Preparation of Ultrafine Zirconia Suspension Using...

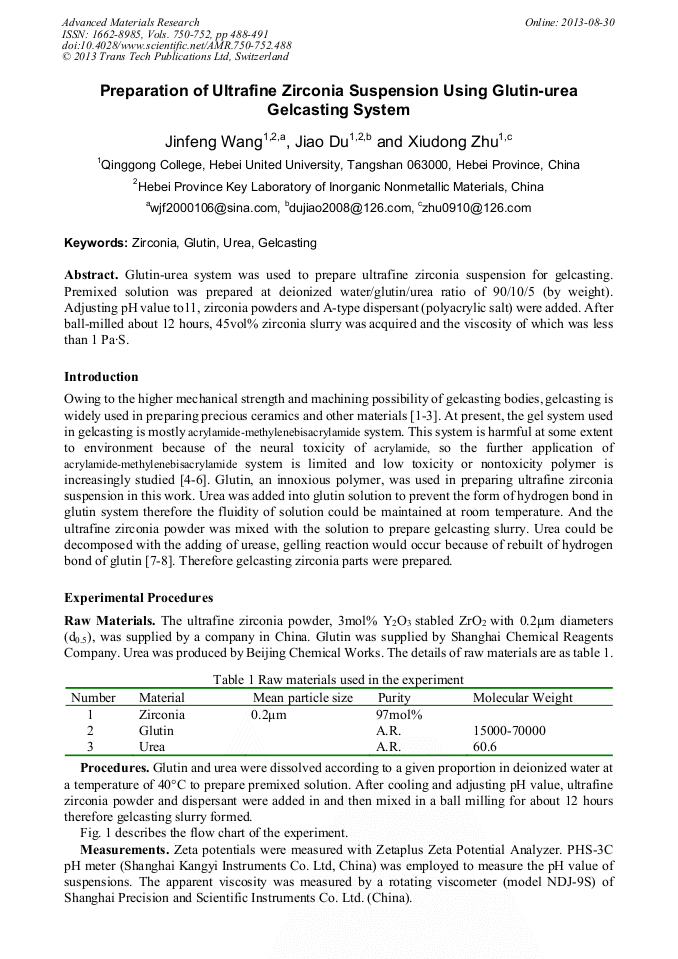

Preparation of Ultrafine Zirconia Suspension Using Glutin-Urea Gelcasting System

Abstract:

Glutin-urea system was used to prepare ultrafine zirconia suspension for gelcasting. Premixed solution was prepared at deionized water/glutin/urea ratio of 90/10/5 (by weight). Adjusting pH value to11, zirconia powders and A-type dispersant (polyacrylic salt) were added. After ball-milled about 12 hours, 45vol% zirconia slurry was acquired and the viscosity of which was less than 1 PaS.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 750-752)

Pages:

488-491

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.750-752.488

Citation:

Cite this paper

Online since:

August 2013

Authors:

Jin Feng Wang*, Jiao Du, Xiu Dong Zhu

Keywords:

Gelcasting, Glutin, Urea, Zirconia

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] X. F. Wang, R. C. Wang, and C. Q. Peng, et al: The Chinese Journal of Nonferrous Metals (In Chinese). Vol. 20 (2010), No. 3, pp.496-509.

Google Scholar

[2] P. Bednarek, M. Szafran, and Y. Sakka, et al: Journal of the European Ceramic Society. Vol. 30 (2010), pp.1795-1801.

Google Scholar

[3] R. Gilissen, J.P. Erauw, and A. Smoldres, et al: Materials and Design. Vol. 21 (2000), pp.251-257.

Google Scholar

[4] H. Akhondi, E. Taheri-Nassaj, and H. Sarpoolaky, et al: Ceramics International. Vol. 35 (2009), pp.1033-1037.

DOI: 10.1016/j.ceramint.2008.04.023

Google Scholar

[5] Santacruz I, Nieto M I, and Moreno R: Ceramics International. Vol. 31 (2005), pp.439-445.

Google Scholar

[6] Z. P. Xie, Y. Huang, and Y. L. Chen, et al: Journal of the Chinese Ceramic Society (In Chinese). Vol. 27 (1999), pp.527-534.

Google Scholar

[7] Z. P. Xie, T. Z. Bo: Journal of Ceramics (In Chinese). Vol. 32 (2011), No. 2, pp.312-319.

Google Scholar

[8] T. G. Liu, L. X. Yang, and B. Zhou, et al: Ion Exchange and Adsorption (In Chinese). Vol. 28 (2012), No. 2, pp.183-192.

Google Scholar
