Vickers Hardness of Multi-Wall Carbon Nanotube Reinforced Alumina

Abstract:

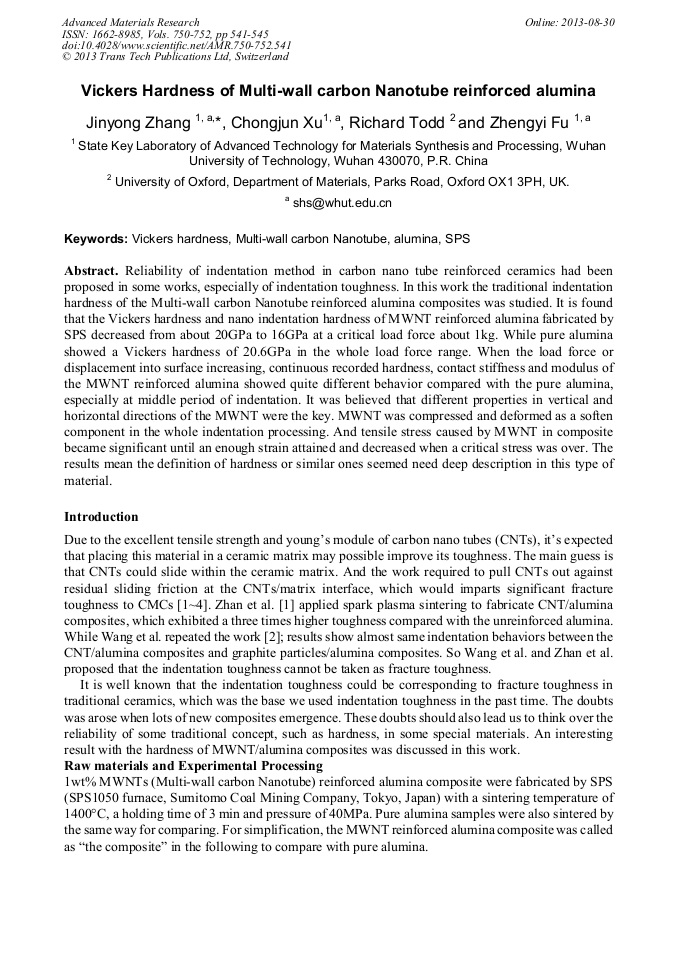

Reliability of indentation method in carbon nanotube reinforced ceramics had been proposed in some works, especially of indentation toughness. In this work the traditional indentation hardness of the Multi-wall carbon Nanotube reinforced alumina composites was studied. It is found that the Vickers hardness and nanoindentation hardness of MWNT reinforced alumina fabricated by SPS decreased from about 20GPa to 16GPa at a critical load force about 1kg. While pure alumina showed a Vickers hardness of 20.6GPa in the whole load force range. When the load force or displacement into surface increasing, continuous recorded hardness, contact stiffness and modulus of the MWNT reinforced alumina showed quite different behavior compared with the pure alumina, especially at middle period of indentation. It was believed that different properties in vertical and horizontal directions of the MWNT were the key. MWNT was compressed and deformed as a soften component in the whole indentation processing. And tensile stress caused by MWNT in composite became significant until an enough strain attained and decreased when a critical stress was over. The results mean the definition of hardness or similar ones seemed need deep description in this type of material.

• Periodical: Advanced Materials Research (Volumes 750-752)
• Pages: 541-545
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.750-752.541
• Online since: August 2013
• Authors: Jin Yong Zhang*, Chong Jun Xu, Richard Todd, Zheng Yi Fu
• Keywords: Alumina, Multi-Wall Carbon Nanotube, SPS, Vickers Hardness

References

[1] Zhan, G. -D., Kuntz, J. D., Wan, J. & Mukherjee, A. K. Single-wall carbon nanotubes as attractive toughening agents in alumina-based nanocomposites, Nature Mater. 2003, 2, 38–42.

DOI: 10.1038/nmat793

[2] Wang, X., Padture, N. P. & Tanaka, H. Contact-damage-resistant ceramic/singlewall carbon nanotubes and ceramic/graphite composites, Nature Mater, 2004, 3, 539–544.

DOI: 10.1038/nmat1161

[3] Xia, Z. et al. Direct observation of toughening mechanisms in carbon nanotube ceramic matrix composites. Acta Mater. 2004, 52, 931–944.

DOI: 10.1016/j.actamat.2003.10.050

[4] A. Peigney, Ch. Laurent, E. Flahaut, A. Rousset, Carbon nanotubes in novel ceramic matrix nanocomposites, Ceramics International 26, 677-683 (2000).

DOI: 10.1016/s0272-8842(00)00004-3

[5] M. S. Dresselhaus, G. Dresselhaus, and P. C. Ecklund, Science of Fullerenes and Carbon Nanotubes, Academic Press, San Diego, CA, (1996).

DOI: 10.1002/adma.19970091518

[6] Vickers Test. Instron website: http: /www. instron. us/wa/applications/test_types/hardness/ vickers. aspx.

[7] H SHI, M ATKINSON, A friction effect in low-load hardness testing of copper and aluminium, JOURNAL OF MATERIALS SCIENCE, 25 (1990) 2111-2114.

DOI: 10.1007/bf01045774
