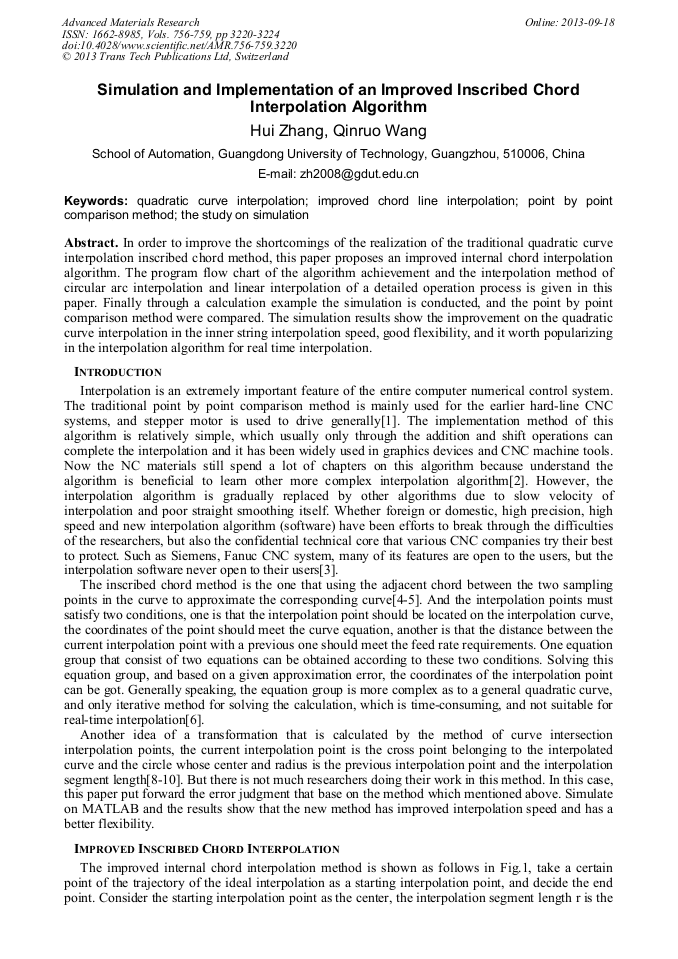

Simulation and Implementation of an Improved Inscribed Chord Interpolation Algorithm

Abstract:

In order to improve the shortcomings of the realization of the traditional quadratic curve interpolation inscribed chord method, this paper proposes an improved internal chord interpolation algorithm. The program flow chart of the algorithm achievement and the interpolation method of circular arc interpolation and linear interpolation of a detailed operation process is given in this paper. Finally through a calculation example the simulation is conducted, and the point by point comparison method were compared. The simulation results show the improvement on the quadratic curve interpolation in the inner string interpolation speed, good flexibility, and it worth popularizing in the interpolation algorithm for real time interpolation.

• Periodical: Advanced Materials Research (Volumes 756-759)
• Pages: 3220-3224
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.756-759.3220
• Online since: September 2013
• Authors: Hui Zhang, Qin Ruo Wang
• Keywords: Improved Chord Line Interpolation, Point by Point Comparison Method, Quadratic Curve Interpolation, Study on Simulation
