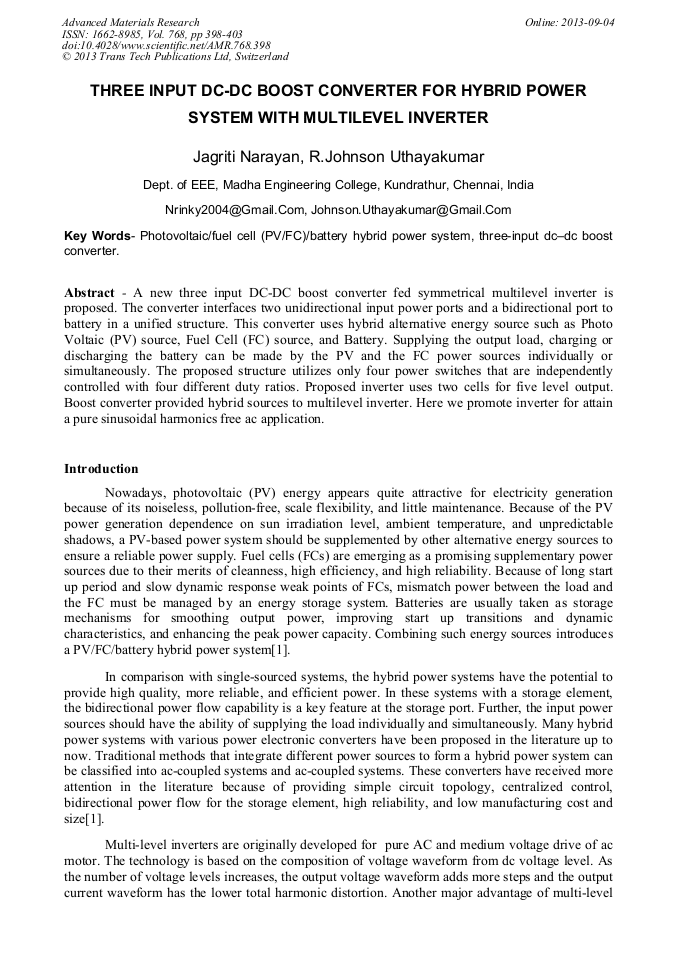

Three Input DC-DC Boost Converter for Hybrid Power System with Multilevel Inverter

Abstract:

A new three input DC-DC boost converter fed symmetrical multilevel inverter is proposed. The converter interfaces two unidirectional input power ports and a bidirectional port to battery in a unified structure. This converter uses hybrid alternative energy source such as Photo Voltaic (PV) source, Fuel Cell (FC) source, and Battery. Supplying the output load, charging or discharging the battery can be made by the PV and the FC power sources individually or simultaneously. The proposed structure utilizes only four power switches that are independently controlled with four different duty ratios. Proposed inverter uses two cells for five level output. Boost converter provided hybrid sources to multilevel inverter. Here we promote inverter for attain a pure sinusoidal harmonics free ac application.Key Words-Photovoltaic/fuel cell (PV/FC)/battery hybrid power system, three-input dcdc boost converter.

• Periodical: Advanced Materials Research (Volume 768)
• Pages: 398-403
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.768.398
• Online since: September 2013
• Authors: Jagriti Narayan, R. Johnson Uthayakumar
• Keywords: Photovoltaic/Fuel Cell (PV/FC)/Battery Hybrid Powersystem, Three-Input DC–DC Boost Converter

References

[1] Farzam Nejabatkhah Modeling & Control of a New Three-Input DC-DC Boost Converter For Hybrid PV/FC/Battery Power System, IEEE Trans. Ind. Electron., vol. 2, no. 3, pp.230-237, March (2012).

DOI: 10.1109/tpel.2011.2172465

[2] Kaushik Rajashekara Hybrid Fuel-Cell Strategies Clean Power Generation, IEEE Trans. Ind. Electron., vol. 41, no. 3, pp.230-237, May/June (2012).

[2] Wei Jiang Active Current Sharing & Source Management in Fuel Cell-Battery Hybrid power System, IEEE Trans. Ind. Electron., vol. 57, no. 2, pp.12-17, February (2010).

DOI: 10.1109/tie.2009.2027249

[3] M. Chithra Analysis of Cascaded H Bridge Multilevel Inverters with Photovoltaic Arrays,. IEEE Trans. Ind. Electron., pp.242-247, March (2010).

[4] C. Kiruthika Implementation of Digital Control Strategy For Asymmertric Cascaded Multilevel Inverter, IEEE Trans. Ind. Electron., pp.295-300, March (2010).

[5] Yaosuo Xue A New Class of Single-Phase Multilevel Inverters, IEEE Trans. Ind. Electron., pp.565-571, June (2010).

[6] Sergio Pires Pimental Asynchronous Distributed Generation System Based on Asymmetrical Cascaded Multilevel Inverter, IEEE Trans. Ind. Electron., pp.3227-3232, November (2008).

DOI: 10.1109/iecon.2008.4758477

[7] M. A. S. Masoum, H. Dehbonei, and E. F. Fuchs, Theoretical and experimental analyses of photovoltaic systems with voltage and current-based maximum power-point tracking, IEEE Trans. Energy Convers., vol. 17, no. 4, p.514–522, Dec. (2002).

DOI: 10.1109/tec.2002.805205
