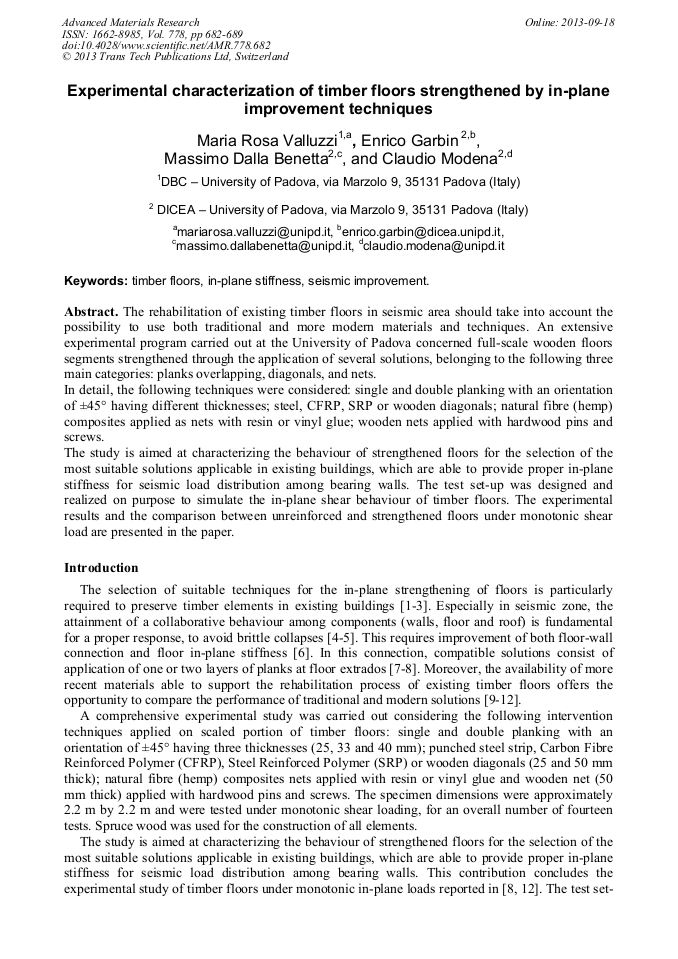

Experimental Characterization of Timber Floors Strengthened by in-Plane Improvement Techniques

Abstract:

The rehabilitation of existing timber floors in seismic area should take into account the possibility to use both traditional and more modern materials and techniques. An extensive experimental program carried out at the University of Padova concerned full-scale wooden floors segments strengthened through the application of several solutions, belonging to the following three main categories: planks overlapping, diagonals, and nets.In detail, the following techniques were considered: single and double planking with an orientation of ±45° having different thicknesses; steel, CFRP, SRP or wooden diagonals; natural fibre (hemp) composites applied as nets with resin or vinyl glue; wooden nets applied with hardwood pins and screws.The study is aimed at characterizing the behaviour of strengthened floors for the selection of the most suitable solutions applicable in existing buildings, which are able to provide a proper in-plane stiffness for seismic load distribution among bearing walls. The test set-up was designed and realized on purpose to simulate the in-plane shear behaviour of timber floors. The experimental results and the comparison between unreinforced and strengthened floors under monotonic shear load are presented in the paper.

• Periodical: Advanced Materials Research (Volume 778)
• Pages: 682-689
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.778.682
• Online since: September 2013
• Authors: Maria Rosa Valluzzi, Enrico Garbin, Massimo dalla Benetta, Claudio Modena
• Keywords: In-Plane Stiffness, Seismic Improvement, Timber Floor

References

[1] U. Barbisan, F. Laner, I solai in legno, Franco Angeli, Milano, Italy, (1995).

[2] G. Tampone, Il restauro delle strutture di legno, Ed. Hoepli, Milano, Italy, (1996).

[3] G. Giordano, Tecnica delle costruzioni in legno. Ed. Hoepli, Milano, Italy, (1999).

[4] L. Binda, G. Cardani, A. Saisi, M.R. Valluzzi, Vulnerability analysis of the historical buildings in seismic area by a multilevel approach. Asian Journal of Civil Engineering, 7(4) (2006) 343-357.

[5] M.R. Valluzzi, M. Munari, C. Modena, L. Binda, G. Cardani, A. Saisi, Multilevel approach to the vulnerability analysis of historic buildings in seismic areas - Part 2: Analytical interpretation of mechanisms for the vulnerability analysis and the structural improvement, International Journal for Restoration of Buildings and Monuments, 13(6) (2007).

DOI: 10.1515/rbm-2007-6172

[6] A. Ceccotti, M. Follesa, M.P. Lauriola M.P., Le strutture di legno in zona sismica, Ed. CLUT, Torino, Italy, (2005).

[7] A.W. Wilson, P.J.H. Quenneville, J.M., Ingham, In-plane orthotropic behavior of timber floor diaphragms in unreinforced masonry buildings, ASCE Jour. of Structural Engineering, 10. 1061/(ASCE)ST. 1943-541X. 0000819 (Feb. 5, 2013).

DOI: 10.1061/(asce)st.1943-541x.0000819

[8] M.R. Valluzzi, E. Garbin, M. Dalla Benetta, C. Modena, Experimental assessment and modelling of in-plane behaviour of timber floors, Proc. Intern. Conf. 6th Structural Analysis of Historical Constructions, Bath, UK, (2008) 755-762.

DOI: 10.1201/9781439828229.ch85

[9] M. Corradi, E. Speranzini, A. Borri, A. Vignoli, In-plane shear reinforcement of wood beam floors with FRP, Composites: Part B, 37(4-5) (2006), 310-319.

DOI: 10.1016/j.compositesb.2005.11.003

[10] N. Gattesco, L. Marcorini, High reversibility technique for in-plane stiffening of wooden floors, Proc. Intern. Conf. 6th Structural Analysis of Historical Constructions, Bath, UK, (2008) 1035-1042.

DOI: 10.1201/9781439828229.ch118

[11] R. Tomasi, C. Baldessari, M. Piazza, The refurbishment of existing timber floors: characterization of the In-Plane behaviour, Proc. Prohitech Conference, Rome, Italy, (2009) 255-260.

[12] M.R. Valluzzi, E. Garbin, M. Dalla Benetta, C. Modena, In-plane strengthening of timber floors for the seismic improvement of masonry buildings, Proc. 11th World Conference on Timber Engineering WCTE2010, Riva del Garda, Italy, (2010) (CD-Rom).

DOI: 10.4028/www.scientific.net/amr.778.682

[13] S. Timoshenko, Theory of Elasticity, McGraw-Hill, New York, US, (1934).

[14] UNI9091-1. 1987, Wood. Determination of moisture content. Electrical method.

[15] UNI: Milano, Italy. UNI EN 12512. 2006, Timber structures. Test methods. Cyclic testing of joints made with mechanical fasteners, UNI, Milano, Italy, (2006).

DOI: 10.3403/02536208
