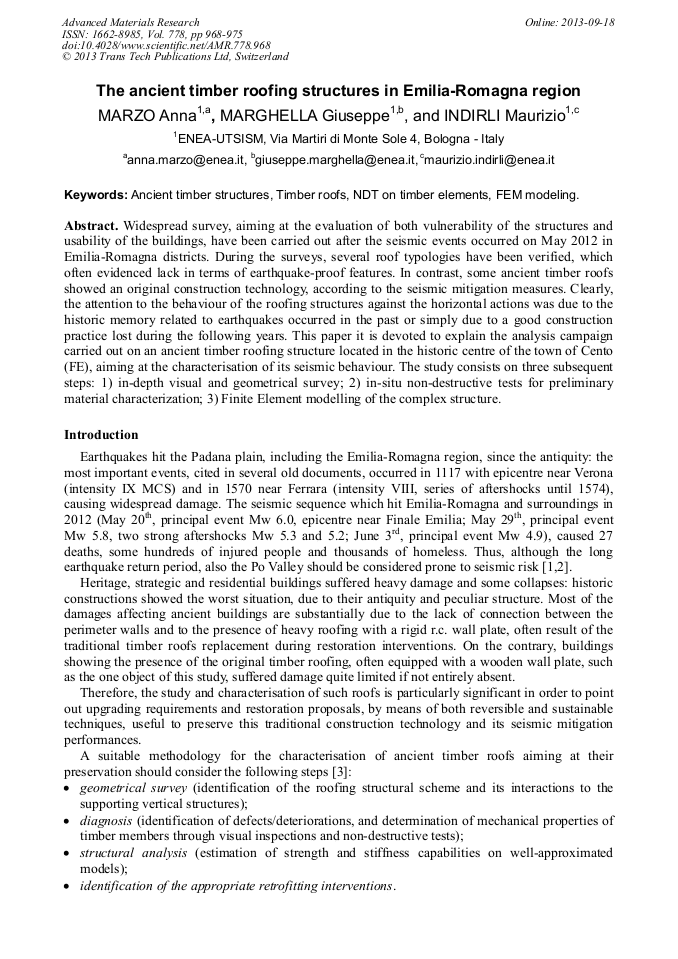

The Ancient Timber Roofing Structures in Emilia-Romagna Region

Abstract:

Widespread survey, aiming at the evaluation of both vulnerability of the structures and usability of the buildings, have been carried out after the seismic events occurred on May 2012 in Emilia-Romagna districts. During the surveys, several cover typologies have been verified, which often evidenced lack in terms of earthquake-proof features. In contrast, some ancient timber roofs showed an original construction technology, according to the seismic mitigation measures. Clearly, the attention to the behaviour of the covering structures against the horizontal actions was due to the historic memory related to earthquakes occurred in the past or simply due to a good construction practice lost during the following years.This paper it is devoted to explain the analysis campaign carried out on an ancient timber covering structure located in the historic centre of the town of Cento (FE), aiming at the characterisation of its seismic behaviour. The study consists on three subsequent steps: 1) in-depth visual and geometrical survey; 2) in-situ non-destructive tests for material characterization; 3) Finite Element modelling of the complex structure.

• Periodical: Advanced Materials Research (Volume 778)
• Pages: 968-975
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.778.968
• Online since: September 2013
• Authors: Anna Marzo, Giuseppe Marghella, Maurizio Indirli
• Keywords: Ancient Timber Structure, FEM Modeling, NDT on Existing Timber Elements, Timber Historical Roofs

References

[1] M. Indirli, B. Carpani, G. Marghella, A. Marzo, Earthquakes and Cultural Heritage: the 2012 seismic event in Emilia-Romagna, Proceedings of the XV ANIDIS 2013, Padua, Italy, (accepted for publication).

[2] M. Indirli, G. Marghella, A. Marzo, Damage and collapse mechanisms in churches during the Pianura Padana Emiliana earthquake, Energia Ambiente e Innovazione (ENEA periodical publication) 4-5 part II, 2012, pp.69-94.

[3] F. M. Mazzolani, B. Faggiano, A. Marzo, M. R. Grippa, The ancient timber structures of the Royal Palace of Naples: diagnosis, analysis and retrofitting, Proceedings of the World Conference on Timber Structures, Riva del Garda, Italy, (2010).

DOI: 10.4028/www.scientific.net/amr.778.831

[4] B. Faggiano, M.R. Grippa, A. Marzo, F.M. Mazzolani, Combined non-destructive and destructive tests for the mechanical characterization of old structural timber elements, Proceedings of the World Conference on Timber Structures, Riva del Garda, Italy, (2010).

DOI: 10.1007/s13349-011-0011-y

[5] WoodPecker hammer - Instruction manual 1. 01, 2012, (in Italian).

[6] S. Wu, J. Xu, G. Li, V. Risto, Z. Lu, B. Li, W. Wang, Use of the pilodyn for assessing wood properties in standing trees of Eucalyptus clones, Journal of Forestry Research, 2010, pp.68-72.

DOI: 10.1007/s11676-010-0011-5

[7] UNI 11035-2: 2003, Structural timber – Rules for the visual grading according to strength and values characteristic of the common Italian structural timber typologies.

[8] Computers & Structures Inc., Berkeley, California, (2011).

[9] NTC 08, Italian Construction Technical Rules, D.M. January 14th, 2008 (in Italian).

[10] UNI 11119: 2004, Cultural heritage. Wooden artefact. Load bearing structures. On site inspections for diagnosis of timber members (in Italian).

[11] N. Macchioni, Italian standardisation activity in the field of diagnosis and restoration, PROHITECH 09, F. M. Mazzolani Editor, CRC Press, Rome, 2009, Vol. 1, pp.349-353.

[12] F.M. Mazzolani, B. Faggiano, A. Marzo, M. R. Grippa, The Diplomatic hall of the Royal Palace of Naples: Diagnosis, analysis and retrofitting of the timber structured. Proceedings of the PROHITECH 09, F. M. Mazzolani Editor, CRC Press, Rome, Italy, Vol. 1, pp.367-373.

DOI: 10.4028/www.scientific.net/amr.778.831
