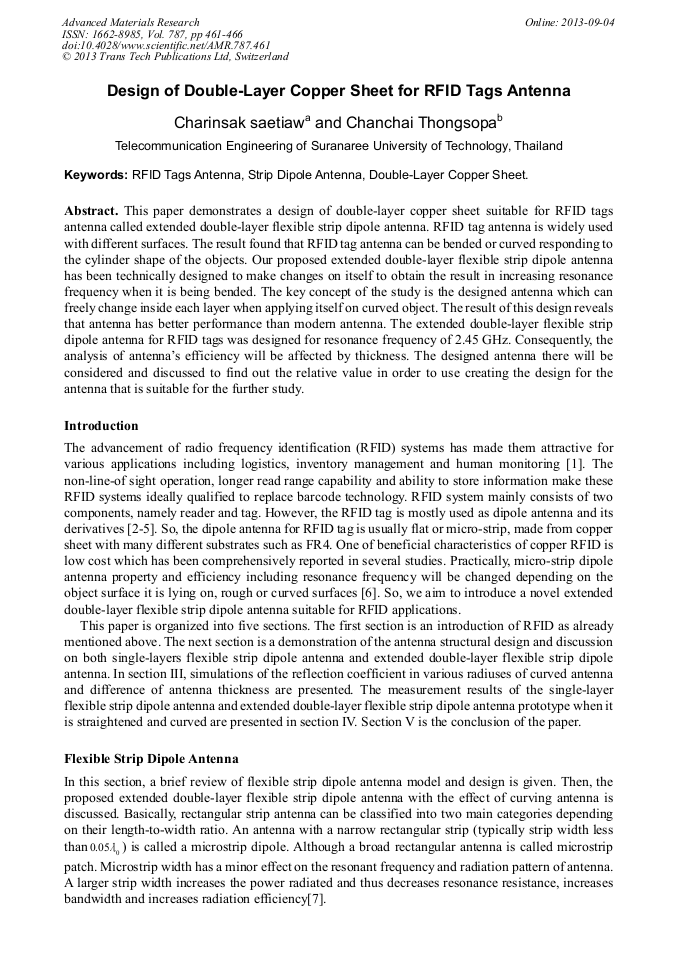

Design of Double-Layer Copper Sheet for RFID Tags Antenna

Abstract:

This paper demonstrates a design of double-layer copper sheet suitable for RFID tags antenna called extended double-layer flexible strip dipole antenna. RFID tag antenna is widely used with different surfaces. The result found that RFID tag antenna can be bended or curved responding to the cylinder shape of the objects. Our proposed extended double-layer flexible strip dipole antenna has been technically designed to make changes on itself to obtain the result in increasing resonance frequency when it is being bended. The key concept of the study is the designed antenna which can freely change inside each layer when applying itself on curved object. The result of this design reveals that antenna has better performance than modern antenna. The extended double-layer flexible strip dipole antenna for RFID tags was designed for resonance frequency of 2.45 GHz. Consequently, the analysis of antennas efficiency will be affected by thickness. The designed antenna there will be considered and discussed to find out the relative value in order to use creating the design for the antenna that is suitable for the further study.

• Periodical: Advanced Materials Research (Volume 787)
• Pages: 461-466
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.787.461
• Online since: September 2013
• Authors: Charinsak Saetiaw, Chanchai Thongsopa
• Keywords: Double-Layer Copper Sheet, RFID Tags Antenna, Strip Dipole Antenna

References

[1] K. Finkenzeller, RFID handbook: fundamentals and applications in contactless smart cards, radio frequency identification and near-field communication: Wiley, (2010).

DOI: 10.1002/9780470665121

[2] Z. N. Chen, Antennas for portable devices: Wiley, (2007).

[3] D. M. Dobkin, The RF in RFID: passive UHF RFID in practice: Newnes, (2007).

[4] M. Svanda and M. Polivka, Dualband wearable UHF RFID antenna, in The Second European Conference on Antennas and Propagation, 2007., (2007), pp.1-5.

DOI: 10.1049/ic.2007.1546

[5] F. Alimenti, G. Orecchini, M. Virili, V. Palazzari, P. Mezzanotte, and L. Roselli, Design of paper-substrate dipole antennas magnetically coupled to UHF RFID silicon chips, in 2011 IEEE International Conference on RFID-Technologies and Applications (RFID-TA), (2011).

DOI: 10.1109/rfid-ta.2011.6068641

[6] P. Salonen and Y. Rahmat-Samii, Textile antennas: Effects of antenna bending on input matching and impedance bandwidth, Aerospace and Electronic Systems Magazine, IEEE, vol. 22 (2007), pp.10-14.

DOI: 10.1109/maes.2007.4408597

[7] R. Garg, P. Bhartia, I. Bahl, and A. Ittipiboon, Microstrip antenna design handbook: Artech House, (2001).

[8] C. Saetiaw, C. Thongsopa, and A. Intarapanich, RFID Tag Antenna Design Using Flexible Double-Layer Strip Dipole Antenna, in International Symposium on Antennas and Propagation, The Lotte Hotel Jeju, Jeju, Korea, (2011).

DOI: 10.1109/ieecon.2017.8075825

[9] CST-Microwave Studio, ed, (2009).

[10] M. H. Jamaluddin, M. K. A. Rahim, M. Z. A. A. Aziz, and A. Asrokin, Microstrip dipole antenna analysis with different width and length at 2. 4 GHz, in Asia-Pacific Conference on Applied Electromagnetics(APACE), 2005., (2005), p.4 pp.

DOI: 10.1109/apace.2005.1607770

[11] J. Siden, P. Jonsson, T. Olsson, and G. Wang, Performance degradation of RFID system due to the distortion in RFID tag antenna, in 11th International Conference on Microwave and Telecommunication Technology, 2001. (2001), pp.371-373.

DOI: 10.1109/crmico.2001.961592
