Design of the Centralized Control Circuit for Large Ship Borne Squid Jigging Machine

Abstract:

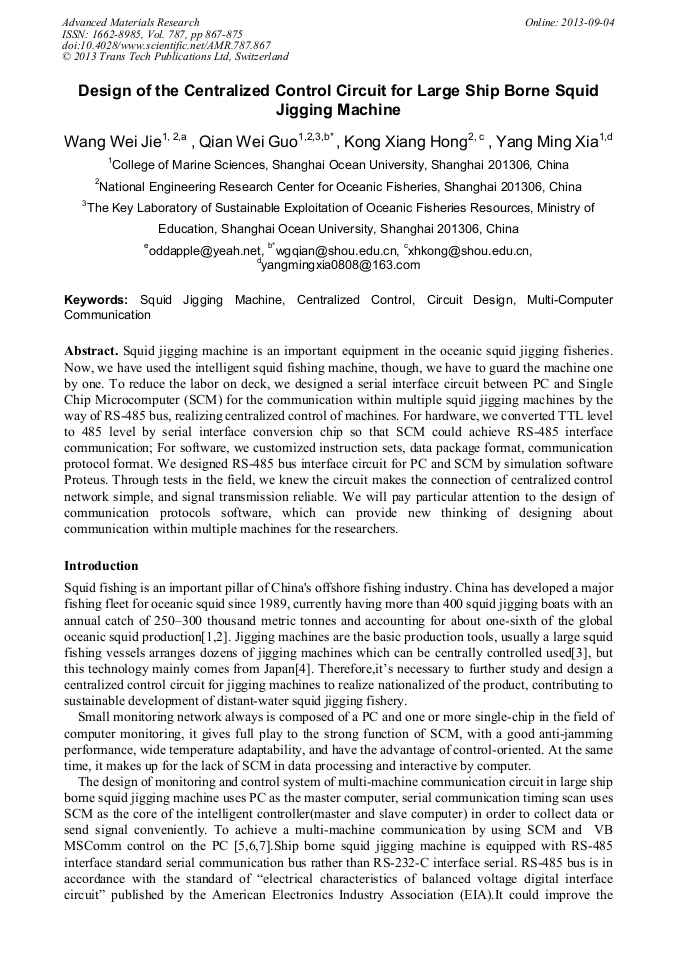

Squid jigging machine is an important equipment in the oceanic squid jigging fisheries. Now, we have used the intelligent squid fishing machine, though, we have to guard the machine one by one. To reduce the labor on deck, we designed a serial interface circuit between PC and Single Chip Microcomputer (SCM) for the communication within multiple squid jigging machines by the way of RS-485 bus, realizing centralized control of machines. For hardware, we converted TTL level to 485 level by serial interface conversion chip so that SCM could achieve RS-485 interface communication; For software, we customized instruction sets, data package format, communication protocol format. We designed RS-485 bus interface circuit for PC and SCM by simulation software Proteus. Through tests in the field, we knew the circuit makes the connection of centralized control network simple, and signal transmission reliable. We will pay particular attention to the design of communication protocols software, which can provide new thinking of designing about communication within multiple machines for the researchers.

• Periodical: Advanced Materials Research (Volume 787)
• Pages: 867-875
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.787.867
• Online since: September 2013
• Authors: Wei Jie Wang, Wei Guo Qian, Xiang Hong Kong, Ming Xia Yang
• Keywords: Centralized Control, Circuit Design, Multi-Computer Communication, Squid Jigging Machine
