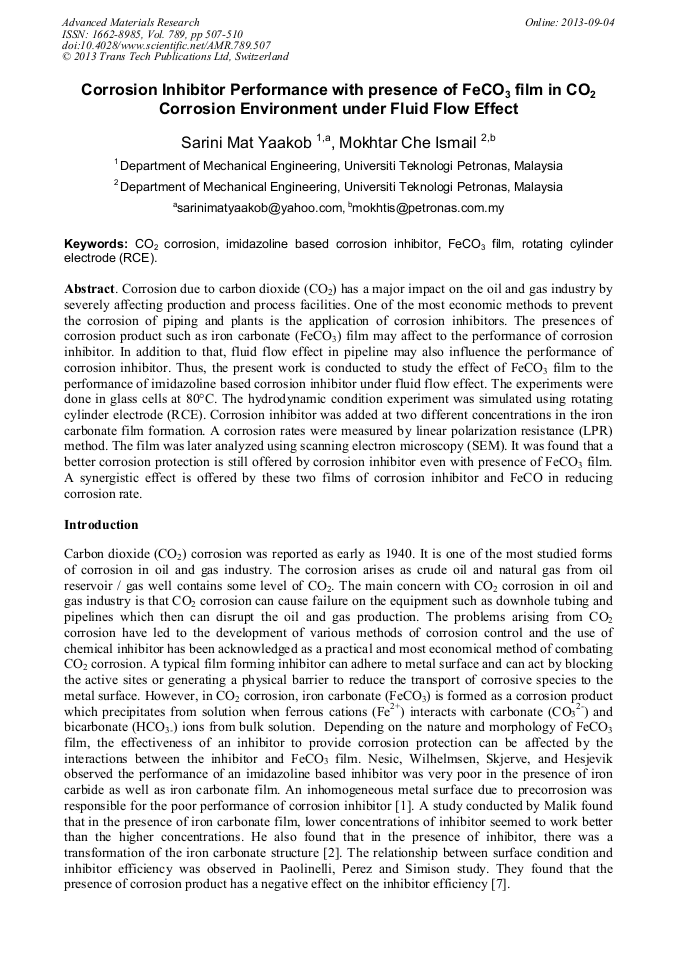

Corrosion Inhibitor Performance with Presence of FeCO₃ Film in CO₂ Corrosion Environment under Fluid Flow Effect

Abstract:

Corrosion due to carbon dioxide (CO₂) has a major impact on the oil and gas industry by severely affecting production and process facilities. One of the most economic methods to prevent the corrosion of piping and plants is the application of corrosion inhibitors. The presences of corrosion product such as iron carbonate (FeCO₃) film may affect to the performance of corrosion inhibitor. In addition to that, fluid flow effect in pipeline may also influence the performance of corrosion inhibitor. Thus, the present work is conducted to study the effect of FeCO₃ film to the performance of imidazoline based corrosion inhibitor under fluid flow effect. The experiments were done in glass cells at 80°C. The hydrodynamic condition experiment was simulated using rotating cylinder electrode (RCE). Corrosion inhibitor was added at two different concentrations in the iron carbonate film formation. A corrosion rates were measured by linear polarization resistance (LPR) method. The film was later analyzed using scanning electron microscopy (SEM). It was found that a better corrosion protection is still offered by corrosion inhibitor even with presence of FeCO₃ film. A synergistic effect is offered by these two films of corrosion inhibitor and FeCO in reducing corrosion rate.

• Periodical: Advanced Materials Research (Volume 789)
• Pages: 507-510
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.789.507
• Online since: September 2013
• Authors: Sarini Mat Yaakob, M. Che Ismail
• Keywords: CO₂ Corrosion, FeCO₃ Film, Imidazoline Based Corrosion Inhibitor, Rotating Cylinder Electrode (RCE)

References

[1] S. Nesic, et al., "Testing of inhibitors for carbon dioxide corrosion using the electrochemical techniques," in Proceedings of the 8th European ymposium on corrosion inhibitors, Ann. Univ. Ferrara, 1995, p.1163.

[2] H. Malik, "Influence of C16 quarternary amine on surface films and polarization resistance of mild steel in carbon dioxide saturated 5% sodium chloride," Corrosion Engineering Science and Technology, vol. 51, p.321, 1995.

DOI: 10.5006/1.3293597

[3] K. D. Efird, "Jet impingement testing for flow accelerated corrosion," Corrosion/1990, NACE International, Houstan, Texas, paper no. 00052, 2000.

[4] A. Y. Musa, et al., "Stability of layer forming for corrosion inhibitor on mild steel surface under hydrodynamic conditions," Int. J. Electrochem. Sci., vol. 4, pp.707-716, 2009.

[5] S. Nesic, "Acid gas corrosion of mild steel," Corrosion and Multiphase Technology, Ohio University, Athens.

[6] R. H. Hausler and G. Schmitt, "Hydrodynamic and flow effects on corrosion inhibiton," Reviews on Corrosion Inhibitor Science and Technology, vol.3, Edited by A. Rahman, P. Labine, and M.A. Quraishi, NACE, 2004.

[7] L.D. Paolinelli, T. Perez and S.N. Simison, ''The effect of pre-corrosion and steel microstructure on inhibitor performance in CO2 corrosion, " Corrosion Science, vol. 50, pp.2456-2464,2008.

DOI: 10.1016/j.corsci.2008.06.031
