Research on Surface Overpressure and Deformation of Underground Frame Beam under Internal Blast Loads

Abstract:

The finite element model of a separately built one-storey underground frame was set up with software ANSYS/LS-DYNA and numerical simulation was done to study on surface overpressure and deformation of the underground frame beam under internal blast loads. It is found that the overpressure peak values on the beam end and middle surface are both much higher when the explosive is below the middle of beam and the peak on the middle surface goes up with the increment of explosive height while that on the beam end surface is not sensitive to the height. The numerical result also indicates that the soil around the frame nearly has no effect on surface overpressure of the frame beam. However, whether there is soil or not the beam deformation has much difference and the increment of the deformation is closely all the same for different soil thicknesses but under the circumstance of thicker soil the beam obtains less deformation upward in a short time after explosion.

You might also be interested in these eBooks

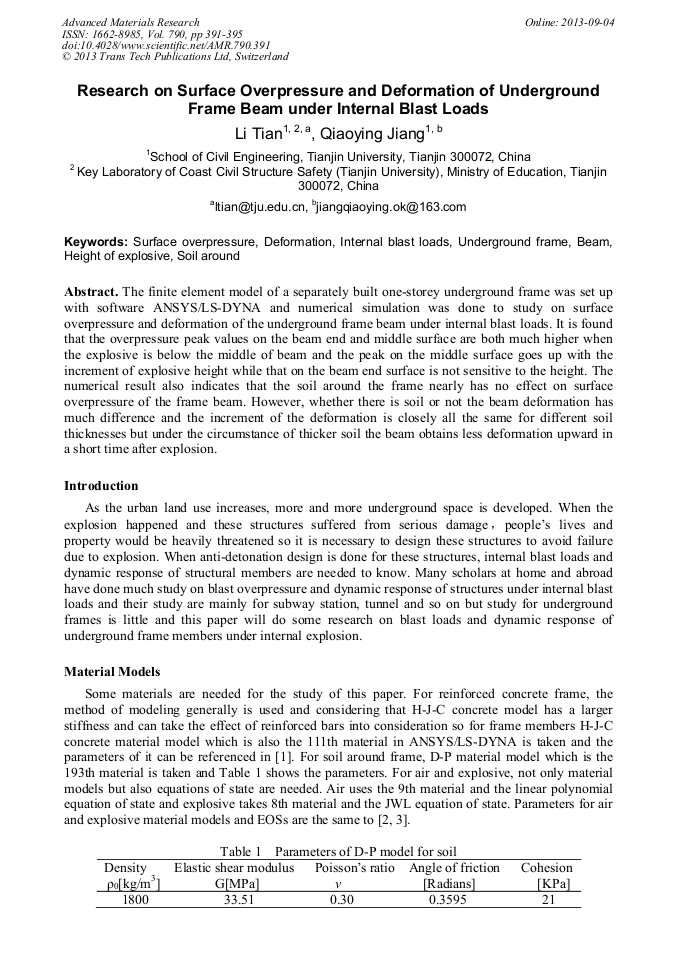

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 790)

Pages:

391-395

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.790.391

Citation:

Cite this paper

Online since:

September 2013

Authors:

Tian Li, Qiao Ying Jiang

Keywords:

Beam, Deformation, Height of Explosive, Internal Blast Loads, Soil Around, Surface Overpressure, Underground Frame

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] T.J. Holmquist, G.R. Johnson and W.H. Cook: 14th International Symposium on Ballistics (Quebec, Canada, September, 1993), p.591.

Google Scholar

[2] Y.S. Tai, T.L. Chu and H.T. Hu: Theoretical and Applied Fracture Mechanics, Vol. 56 (2011), p.140.

Google Scholar

[3] G.D. Williams, E.B. Williamson: Journal of Bridge Engineering, Vol. 17 (2012), p.490.

Google Scholar

[4] Z.K. Guo, F.L. Song, F. Liu: Journal of PLA University of Science and Technology, Vol. 9 (2008) No. 4, p.345. In Chinese.

Google Scholar

[5] LS-DYNA, Keyword user's manual. Livermore Software Technology Corporation. Livermore (California); (2006).

Google Scholar

[6] Q. Zhou: Distribution Law and Simplified Computation of Overpressure on Walls Due to Explosion inside the Closed Space (MS., Tianjin University, China 2008). p.22. In Chinese.

Google Scholar

[7] D.Y. Shi, Y.C. Li and S.M. Zhang: Do Explicit Analyses Based on ANSYS/LS-DYNA 8. 1 (The Press of Tsinghua University, China 2005), p.184. In Chinese.

Google Scholar

[8] Information on http: /www. lstc. com.

Google Scholar
