Effect of Extrusion Route on Grain Refinement during ECAP Process

Chun Yan Ban; Hai Tao Gao; Chuan Qiang  Li; Dong  Han; Jian Zhong  Cui

doi:10.4028/www.scientific.net/AMR.790.90

Paper Titles

Application of Nanoscale Zero Valent Iron Combined with Impatiens Balsamina to Remediation of E-Waste Contaminated Soils
p.73

Removal of Reactive Dyes from Wastewater by Magnesium Hydroxide Coagulation Assisted with Ultrasonic
p.77

Preparation of Hydrophobic Microporous Polypropylene/Isotactic Polypropylene Blending Membranes via Thermally Induced Phase Separation for Vacuum Membrane Distillation
p.81

Anodic Behavior of Pb-Ag-Ca-Sr Alloy in Zinc Electrowinning
p.85

Effect of Extrusion Route on Grain Refinement during ECAP Process
p.90

Influence of Caustic Soda Flakes-Phosphogypsum on Activation and Microstructure of Carbide Slag-Flyash
p.94

Study on the Performance of Mg/Al Composite Anode
p.98

Effects of Insolation on Optical Properties of Tricot Invisible Curtain
p.102

Analysis of the Reinforced Masonry on Shear Capacity
p.109

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 790Effect of Extrusion Route on Grain Refinement...

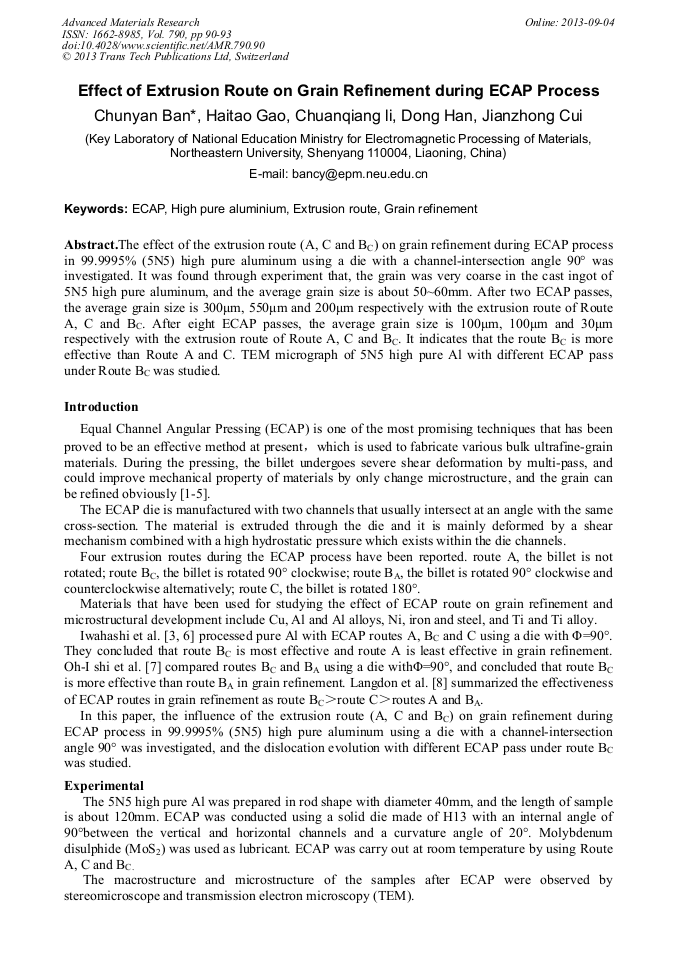

Effect of Extrusion Route on Grain Refinement during ECAP Process

Abstract:

The effect of the extrusion route (A, C and B_C) on grain refinement during ECAP process in 99.9995% (5N5) high pure aluminum using a die with a channel-intersection angle 90° was investigated. It was found through experiment that, the grain was very coarse in the cast ingot of 5N5 high pure aluminum, and the average grain size is about 50~60mm. After two ECAP passes, the average grain size is 300μm, 550μm and 200μm respectively with the extrusion route of Route A, C and B_C. After eight ECAP passes, the average grain size is 100μm, 100μm and 30μm respectively with the extrusion route of Route A, C and B_C. It indicates that the route B_C is more effective than Route A and C. TEM micrograph of 5N5 high pure Al with different ECAP pass under Route B_C was studied.
