The Thermal Insulation Design for Refuge Chamber

Abstract:

For provide outstanding thermal insulation capacity for the refuge chambers, this paper firstly put forward a 5 layer heat insulation structure for refuge chambers. Mineral wool and acrogel were used as the heat insulation materials because of their excellent heat insulation and fire resistance capability. Then the paper determined the thickness of each layer by theoretic analyze using heat transfer theory, and found two 10 mm layers of acrogel and a 62mm layer mineral wool were ideal thickness. Then the paper designed the cooling system, according the heat analysis. And found the ice cake was best fit for refuge chambers, but it must equip with air flue to keep the enclosed air flowing. At last, 8 people were employed in the closed chamber for 106 hours, and raised outside temperature to 55°C for 5 hours. The chambers inside temperature was most controlled under 35°C. Then the paper increased the thickness of acrogel layer according to the experiment results at last. Theory analysis and experiment show that the designed heat insulation structure and cooling system had an excellent thermal protection capability.

You might also be interested in these eBooks

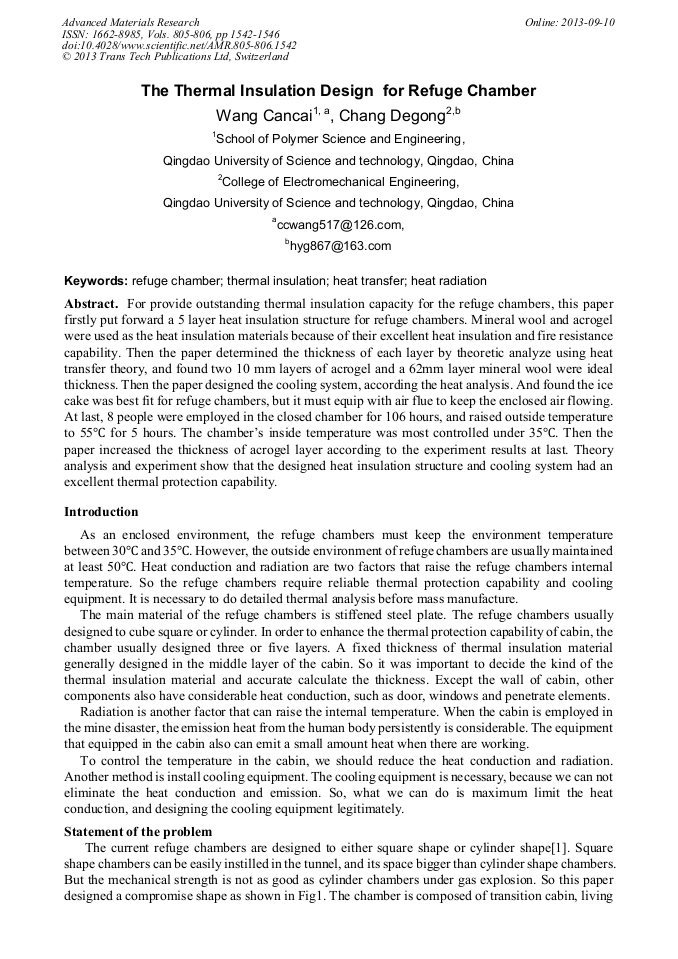

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 805-806)

Pages:

1542-1546

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.805-806.1542

Citation:

Cite this paper

Online since:

September 2013

Authors:

Can Cai Wang, De Gong Chang

Keywords:

Heat Radiation, Heat Transfer, Refuge Chamber, Thermal Insulation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Michael A．Fasouletos．Parametric Design of a Coal Mine Refuge Chamber[D]．West Virginia University，2007.

Google Scholar

[2] Wang Sheng, Jin longzhe. Study of heat protection performance of refuge chamber[J]. Safety in coal Mines. Vol. 41 (1992), pp.16-19.

Google Scholar

[3] Wang Sheng, Jin longzhe. Analysis of thermal environment of mine refuge chamber[J]. Journal of china coal society . Vol. 36(2011), pp.1524-1528.

Google Scholar

[4] Li Jing, Jin longzhe, et al. Respiratory quotient calculation of the human body at a confined space in coal mine[J]. Journal of University of science and technology Beijing. Vol. 32(2010), pp.963-967.

Google Scholar

[5] Wang Puxiu. Aerospace environmental control and life support engineering fundamentals[M]. Beijing, National Defense Industry Press, 2003.

Google Scholar

[6] ASHRAE. ASHRAE handbook-fundamentals[M]. Atlanta: ASHRAE Inc. (1997).

Google Scholar

[7] BS EN ISO 7726: 2001. Ergonomics of the thermal environment-instruments for measuring physical quantities[S]. (2001).

Google Scholar
