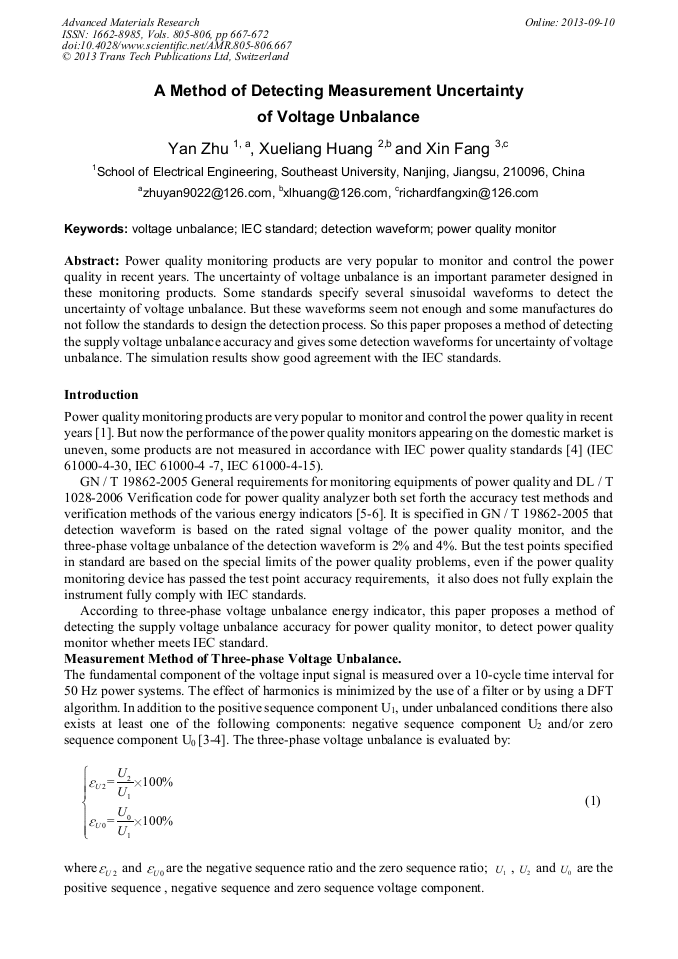

A Method of Detecting Measurement Uncertainty of Voltage Unbalance

Abstract:

Power quality monitoring products are very popular to monitor and control the power quality in recent years. The uncertainty of voltage unbalance is an important parameter designed in these monitoring products. Some standards specify several sinusoidal waveforms to detect the uncertainty of voltage unbalance. But these waveforms seem not enough and some manufactures do not follow the standards to design the detection process. So this paper proposes a method of detecting the supply voltage unbalance accuracy and gives some detection waveforms for uncertainty of voltage unbalance. The simulation results show good agreement with the IEC standards.

• Periodical: Advanced Materials Research (Volumes 805-806)
• Pages: 667-672
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.805-806.667
• Online since: September 2013
• Authors: Yan Zhu*, Xue Liang Huang, Xin Fang
• Keywords: Detection Waveform, IEC Standard, Power Quality Monitor, Voltage Unbalance

References

[1] M. Kezunovic and A. Abur : Advanced Tools and Methodologies for Power Quality Assessment, European Conference Power Quality 97, (1997).

[2] Senjyu. T, Yonaha. Yu, Nakasone. N, Yona. A, Chul-Hwan Kim, Electrical Machines and Systems, 2008, 1101-1106.

[3] GB/T 15543-2008, Power quality-Three-phase voltage unbalance [S]. 2008. In Chinese.

[4] IEC 61000-4-30, Testing and measurement techniques-Power quality measurement methods [S]. (2008).

[5] GB/T 19862-2005, General requirements for monitoring equipments of power quality [S]. 2005. In Chinese.

[6] DL/T 1028-2006, Verification code for power quality analyzer [S]. 2006. In Chinese.
