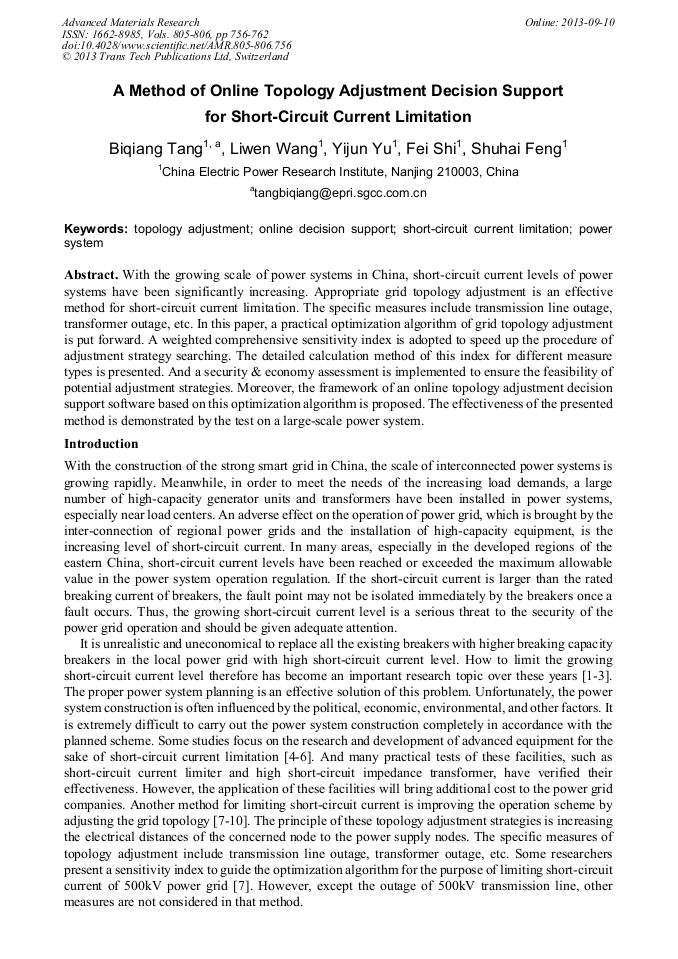

A Method of Online Topology Adjustment Decision Support for Short-Circuit Current Limitation

Abstract:

With the growing scale of power systems in China, short-circuit current levels of power systems have been significantly increasing. Appropriate grid topology adjustment is an effective method for short-circuit current limitation. The specific measures include transmission line outage, transformer outage, etc. In this paper, a practical optimization algorithm of grid topology adjustment is put forward. A weighted comprehensive sensitivity index is adopted to speed up the procedure of adjustment strategy searching. The detailed calculation method of this index for different measure types is presented. And a security & economy assessment is implemented to ensure the feasibility of potential adjustment strategies. Moreover, the framework of an online topology adjustment decision support software based on this optimization algorithm is proposed. The effectiveness of the presented method is demonstrated by the test on a large-scale power system.

• Periodical: Advanced Materials Research (Volumes 805-806)
• Pages: 756-762
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.805-806.756
• Online since: September 2013
• Authors: Bi Qiang Tang*, Li Wen Wang, Yi Jun Yu, Fei Shi, Shu Hai Feng
• Keywords: Online Decision Support, Power System, Short-Circuit Current Limitation, Topology Adjustment

References

[1] X. Yang, L. Li, Y. Li, et al, Operation schemes for limiting short-circuit current of 500kV network in Guangdong power grid, Automation of Electric Power Systems, vol. 33, no. 7, p.104–107, 2009 (In Chinese).

[2] L. Chen, M. Huang, H. Zhang, et al, An optimization strategy for limiting short circuit current, Automation of Electric Power Systems, vol. 33, no. 11, p.38–42, 2009 (In Chinese).

[3] J. Yuan, W. Liu, M. Dong, et al, Application of measures limiting short circuit currents in northwest China power grid, Power System Technology, vol. 31, no. 10, p.42–45, 2007 (In Chinese).

[4] K. Hongesombut, Y. Mitani, K. Tsujj, Optimal location assignment and design of superconducting fault current limiters applied to loop power systems, IEEE Trans on Applied Superconductivity, vol. 13, no 2, p.1828–1831, (2003).

DOI: 10.1109/tasc.2003.812901

[5] R. Kreutz, J. Bock, F. Breuer, et al, System technology and test of CURL 10, a 10 kV, 10 MVA resistive high-Tc superconducting fault current limiter, IEEE Trans on Applied Superconductivity, vol. 15, no 2, p.1961–1964, (2005).

DOI: 10.1109/tasc.2005.849345

[6] T. Hoshino, I. Muta, T. Nakamura, et al, Non-inductive variable reactor design and computer simulation of rectifier type superconducting faultcurrent limiter, IEEE Trans on Applied Superconductivity, vol. 15, no. 2, p.2063–2066, (2005).

DOI: 10.1109/tasc.2005.849452

[7] Y. Zhang, Z. Cai, A. Li, et al, An optimization algorithm for short-circuit current limitation of 500kV power grid by adjusting power grid configuiation, Automation of Electric Power Systems, vol. 33, no. 22, p.34–38, 2009 (In Chinese).

[8] D. Yang, Y. Liu, X. Niu, Integrated decision method of operation schemes for limiting short-circuit currents in district grids, Automation of Electric Power Systems, vol. 34, no. 12, p.34–38, 2010 (in Chinese).

[9] X. Xu, T. Ding, Q. Wan, 220kV power grid district-dividing optimization for limiting fault current, Automation of Electric Power Systems, vol. 33, no. 22, p.98–101, 2009 (In Chinese).

[10] Y. Gao, Z. Shi, X. Ling, Operational practice of transmission network reconfiguration in Shanghai power grid, East China Electric Power, vol. 35, no. 9, p.54–57, 2007 (In Chinese).
