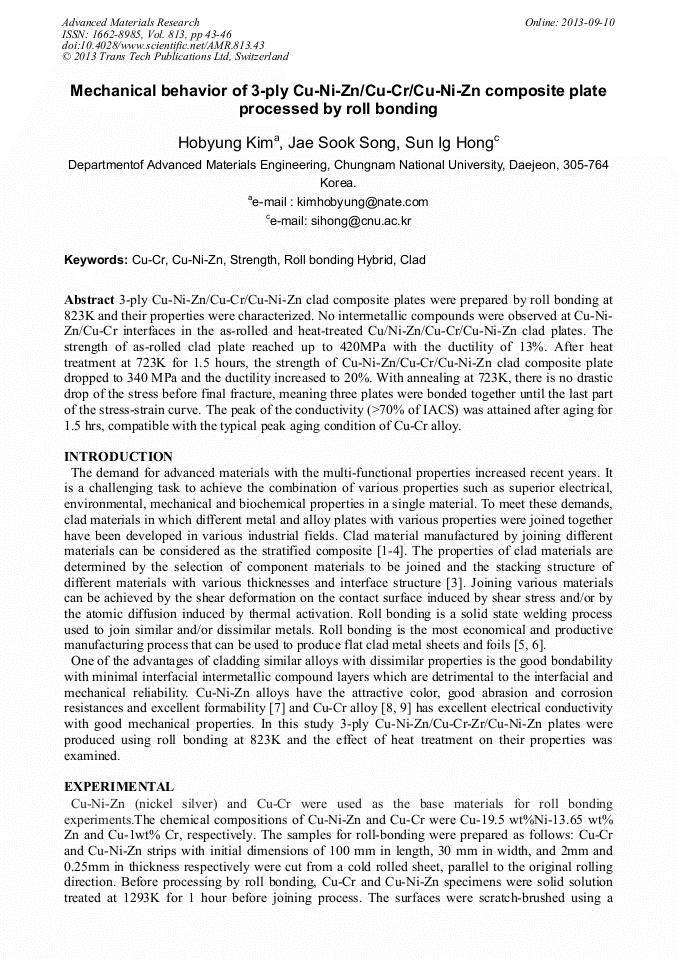

Mechanical Behavior of 3-ply Cu-Ni-Zn/Cu-Cr/Cu-Ni-Zn Composite Plate Processed by Roll Bonding

Abstract:

3-ply Cu-Ni-Zn/Cu-Cr/Cu-Ni-Zn clad composite plates were prepared by roll bonding at 823K and their properties were characterized. No intermetallic compounds were observed at Cu-Ni-Zn/Cu-Cr interfaces in the as-rolled and heat-treated Cu/Ni-Zn/Cu-Cr/Cu-Ni-Zn clad plates. The strength of as-rolled clad plate reached up to 420MPa with the ductility of 13%. After heat treatment at 723K for 1.5 hours, the strength of Cu-Ni-Zn/Cu-Cr/Cu-Ni-Zn clad composite plate dropped to 340 MPa and the ductility increased to 20%. With annealing at 723K, there is no drastic drop of the stress before final fracture, meaning three plates were bonded together until the last part of the stress-strain curve. The peak of the conductivity (>70% of IACS) was attained after aging for 1.5 hrs, compatible with the typical peak aging condition of Cu-Cr alloy.

• Periodical: Advanced Materials Research (Volume 813)
• Pages: 43-46
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.813.43
• Online since: September 2013
• Authors: Hob Yung Kim, Jae Sook Song, Sun Ig Hong
• Keywords: Clad, Cu-Cr, Cu-Ni-Zn, Roll Bonding Hybrid, Strength

References

[1] I. K. Kim and S. I. Hong. Mater. Des. 47. 590. (2013).

[2] K.H. Oh, H. B Kim, S. I. Hong, A. M. R. Vols. 557-559 (2012) pp.1161-1165.

[3] I. K. Kim and S. I. Hong. Mater. Des. in press. (2013).

[4] Kim, J.K., Yu, T.X., 1997. J. M. P. T. 63., 33–42.

[5] J. Y. Song, I. K. Kim, Y. S. Lee and S. I. Hong : Korean J. Met. Mater., 49. 910. (2011).

[6] M. A., M. R. Toroghinejad ,J. M. P. T. 210 (2010) 560–563.

[7] J. Y. Song, S. I. Hong : Materials and Design., 1790-1795. (2010).

[8] Zs. Kov´acsa, S. H´obora, P.J. Szabo´ b, J. Lendvaia, A.P. Zhilyaevc, A´ . Re´ve´sz :M. Sci. E., 1139-1142. (2007).

[9] Matti J. Saarivirta : Trans. Met. Soc., AIME., 431-437. (1960).

[10] S.I. Hong, G. T. Gray III, Lewandowski : ActaMetall, Mater., 41. 8. (1993).
