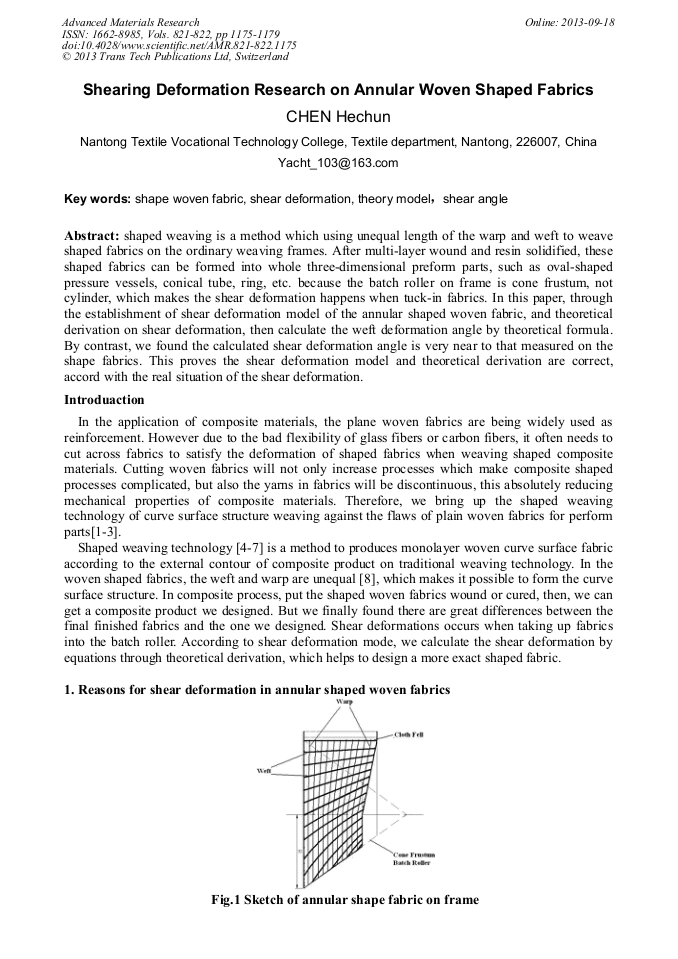

Shearing Deformation Research on Annular Woven Shaped Fabrics

Abstract:

shaped weaving is a method which using unequal length of the warp and weft to weave shaped fabrics on the ordinary weaving frames. After multi-layer wound and resin solidified, these shaped fabrics can be formed into whole three-dimensional preform parts, such as oval-shaped pressure vessels, conical tube, ring, etc. because the batch roller on frame is cone frustum, not cylinder, which makes the shear deformation happens when tuck-in fabrics. In this paper, through the establishment of shear deformation model of the annular shaped woven fabric, and theoretical derivation on shear deformation, then calculate the weft deformation angle by theoretical formula. By contrast, we found the calculated shear deformation angle is very near to that measured on the shape fabrics. This proves the shear deformation model and theoretical derivation are correct, accord with the real situation of the shear deformation. Key words: shape woven fabric, shear deformation, theory model,shear angle

• Periodical: Advanced Materials Research (Volumes 821-822)
• Pages: 1175-1179
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.821-822.1175
• Online since: September 2013
• Authors: He Chun Chen
• Keywords: Shape Woven Fabric, Shear Angle, Shear Deformation, Theory Model

References

[1] X.F. Guo, C.Y. Liu and R. Wang: Weaving Principle and Design of the Annular Shaped Woven Fabrics, Journal of Textile Research. 2006，Vol. 27-No. 1，12-15.

[2] J.Z. Xu, M. Qiao, B. You and X.Y. Wang: The Research of In- situ Modeling Process for Fiber Winding Composite Shell. Materials Science & Technology. Apr., 2009, Vo l1 17 N o1 2.

[3] S.J. Peng and X.F. Guo: The weaving technology of monolayer camber weaving. Progress in Textile Science & Technology, 2005, （2）：18-20.

[4] Z.J. Hao, L.P. Xu and X.F. Guo: Study on the Weaving Methods of Cone-Shaped Tubular Woven Preforms. Industrial Textile. 2005，23（12）：23-25.

[5] X.F. Guo and J.Q. Li: A Method for Woven Fabrics. Chinese Patent. CN 02129080. 6, 2005203223.

[6] Busgen A. Gewebte: formen-standund ausblick neuer webtechnologien. Melliand Textilberichte, 1999 , (6) : 502 - 505.

[7] Robert G. James and H. Michael H: Composite overwrapped pressure vessels for space applications. SAMPE Journal, 2003, 39(2): 44-50.

[8] S.J. Peng, X.F. Guo and H.C. Chen: Design and Weaving of Annular Cloth, Joutnal of Tianjin Polytechnic University. 2005，22（4）：18-20.

[9] J.X. Chen, J. Xu and H. Li: Research of Surface Developing Technology and Application, Journal of Yangzhou University. 2003，Aug, 6(3)：54-70.

[10] Li Li, Z.L. Wang: MATLAB Engineering Calculation and Application. Post & Telecom Press. 2001: 162-165.
