Direct Synthesis of Nanocrystalline HZSM-5 Zeolite via Varying-Temperature Hydrothermal Synthesis

Jun Fang Wei; Fang Zhu

doi:10.4028/www.scientific.net/AMR.821-822.1303

Paper Titles

Study on the Acrylic Resin Coating Agent Modified by Nanocrystalline Cellulose
p.1287

Anti-UV Nanoparticles Surface Modification Technology
p.1291

The Application of the Nanometer Materials in Textile
p.1295

Polymer-Assistant Hydrothermal Synthesis of 2.6 nm-Sized Lead Zirconate Titanate Nanoparticles
p.1299

Direct Synthesis of Nanocrystalline HZSM-5 Zeolite via Varying-Temperature Hydrothermal Synthesis
p.1303

Preparation and Characterization of Microporous Hemp Stem-Based Activated Carbons
p.1307

Hydrothermal Synthesis of Ni-Fe Layered Double Hydroxide with High Crystallinity Using Homogeneous Precipitation Method
p.1313

A Study of HZSM-5 Membrane Synthesis on α-Al₂O₃ Supports
p.1317

Electrospinning of Pullulan Nanofibers for Food Package Materials
p.1321

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 821-822Direct Synthesis of Nanocrystalline HZSM-5 Zeolite...

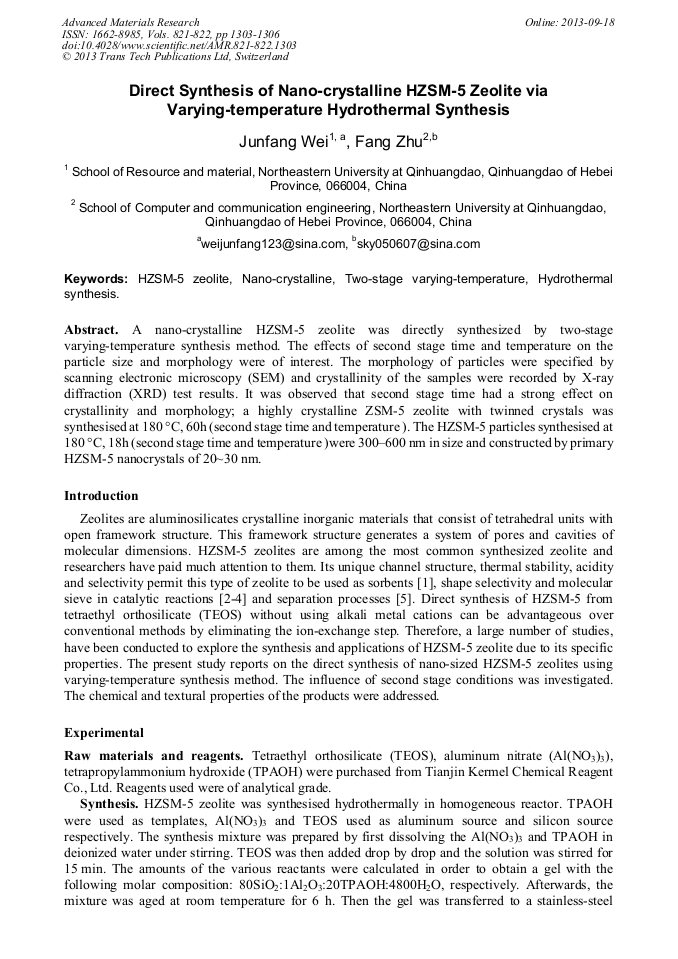

Direct Synthesis of Nanocrystalline HZSM-5 Zeolite via Varying-Temperature Hydrothermal Synthesis

Abstract:

A nanocrystalline HZSM-5 zeolite was directly synthesized by two-stage varying-temperature synthesis method. The effects of second stage time and temperature on the particle size and morphology were of interest. The morphology of particles were specified by scanning electronic microscopy (SEM) and crystallinity of the samples were recorded by X-ray diffraction (XRD) test results. It was observed that second stage time had a strong effect on crystallinity and morphology; a highly crystalline ZSM-5 zeolite with twinned crystals was synthesised at 180 °C, 60h (second stage time and temperature ). The HZSM-5 particles synthesised at 180 °C, 18h (second stage time and temperature ) were 300600 nm in size and constructed by primary HZSM-5 nanocrystals of 20~30 nm.
