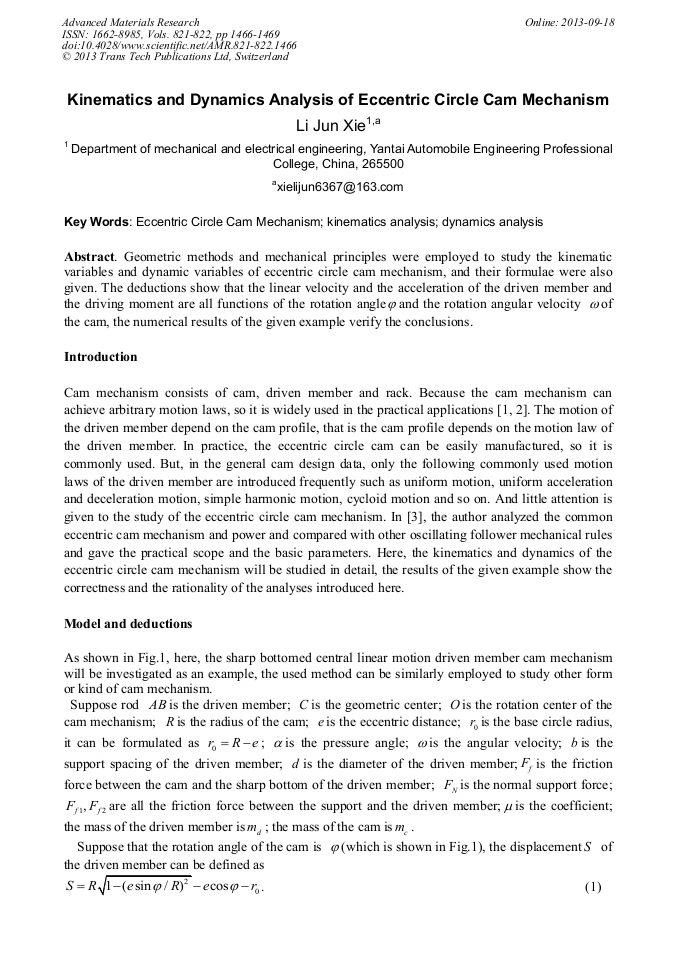

Kinematics and Dynamics Analysis of Eccentric Circle Cam Mechanism

Abstract:

Geometric methods and mechanical principles were employed to study the kinematic variables and dynamic variables of eccentric circle cam mechanism, and their formulae were also given. The deductions show that the linear velocity and the acceleration of the driven member and the driving moment are all functions of the rotation angleand the rotation angular velocity of the cam, the numerical results of the given example verify the conclusions.
