Study of Viscosity and Stability of SiO2 Sol Prepared by Sol-Gel Method

Kun Peng; Ming Yue Yuanyin; Jia Jun Zhu; De Yi Li; Ling Ping Zhou

doi:10.4028/www.scientific.net/AMR.834-836.454

Paper Titles

Hot Deformation Behavior and Processing Map of a Nickel-Base Superalloy GH4169
p.432

Study of the Effect of Oxygen Annealing on YBCO Platelet Aggregates Synthesized by a Biomimetic Method
p.437

The Mechanism Study of Sewage Scaling in Gas Filed Containing H₂S
p.445

Amino Acid Catalyzed Conjugate Addition of Thiol to Dienone
p.450

Study of Viscosity and Stability of SiO₂ Sol Prepared by Sol-Gel Method
p.454

The Study of Catalytic Oxidation of NOx Using Mn₃O₄/GO/PMS
p.458

Effects of Catalyst on the Transmittance and Stability of SiO₂ Antireflective Film Prepared by Sol-Gel Method
p.462

Morphology and Electrochemical Performance of Amorphous Nickel Hydroxide Added Anion
p.466

Photostability of Monoazo Disperse Dyes in Different Solvents
p.472

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 834-836Study of Viscosity and Stability of SiO2 Sol...

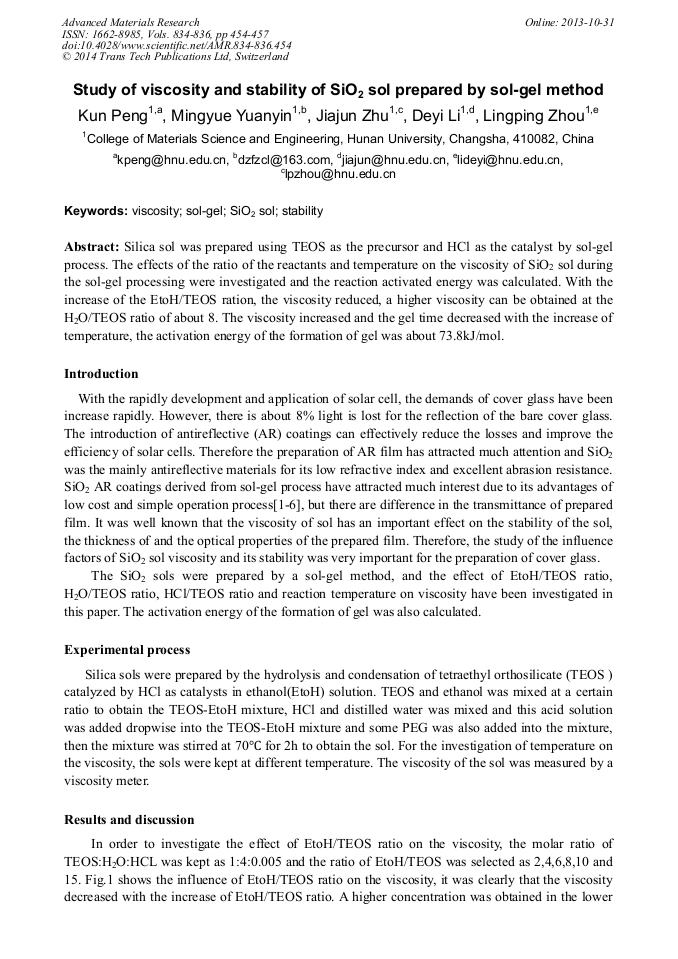

Study of Viscosity and Stability of SiO₂ Sol Prepared by Sol-Gel Method

Abstract:

Silica sol was prepared using TEOS as the precursor and HCl as the catalyst by sol-gel process. The effects of the ratio of the reactants and temperature on the viscosity of SiO₂ sol during the sol-gel processing were investigated and the reaction activated energy was calculated. With the increase of the EtoH/TEOS ration, the viscosity reduced, a higher viscosity can be obtained at the H₂O/TEOS ratio of about 8. The viscosity increased and the gel time decreased with the increase of temperature, the activation energy of the formation of gel was about 73.8kJ/mol.
