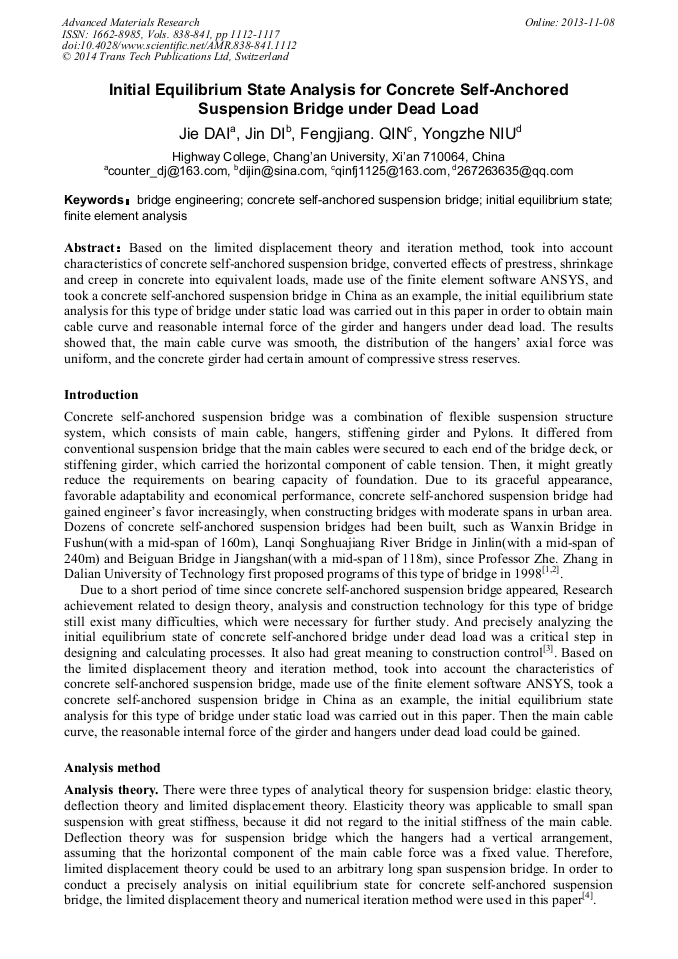

Initial Equilibrium State Analysis for Concrete Self-Anchored Suspension Bridge under Dead Load

Abstract:

Based on the limited displacement theory and iteration method, took into account characteristics of concrete self-anchored suspension bridge, converted effects of prestress, shrinkage and creep in concrete into equivalent loads, made use of the finite element software ANSYS, and took a concrete self-anchored suspension bridge in China as an example, the initial equilibrium state analysis for this type of bridge under static load was carried out in this paper in order to obtain main cable curve and reasonable internal force of the girder and hangers under dead load. The results showed that, the main cable curve was smooth, the distribution of the hangers axial force was uniform, and the concrete girder had certain amount of compressive stress reserves.

• Periodical: Advanced Materials Research (Volumes 838-841)
• Pages: 1112-1117
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.838-841.1112
• Online since: November 2013
• Authors: Jie Dai*, Jin Di, Feng Jiang Qin, Yong Zhe Niu
• Keywords: Bridge Engineering, Concrete Self-Anchored Suspension Bridge, Finite Element Analysis (FEA), Initial Equilibrium State

References

[1] John A. Ochsendorf, David P. Billington. Self-Anchored Suspension Bridges [J]. Journal of Bridge Engineering, 1999, 4(3): 151-156.

DOI: 10.1061/(asce)1084-0702(1999)4:3(151)

[2] Zhe. Zhang. Concrete Self-Anchored Suspension Bridge(In Chinese) [M]. Beijing: China Communications Press, (2005).

[3] Jin. Di, Jun. Wu. Calculation Methods for Cable Curve of Self-Anchored Suspension Bridge(In Chinese) [J]. Journal of Traffic and Transportation Engineering, 2004, 4(3): 38-43.

[4] Munenobu Kondoh, Motoi Okuda, Kouji Kawaguchi, Takefumi Yamazaki. Design Method of a Hanger System for Long-Span Suspension Bridge [J]. Journal of Bridge Engineering, 2001, (6): 176-182.

DOI: 10.1061/(asce)1084-0702(2001)6:3(176)

[5] Donglian. Tan. Decision Method on Reasonable Design State of Self-Anchored Suspension Bridge(In Chinese) [J]. China Journal of Highway and Transport, 2005, 18(2): 51-55.

[6] Qin. Yang, Chengming. Li. ANSYS Form Finding and Catenary Simulation of Cable Structure(In Chinese) [J]. Journal of Information Technology in Civil Engineering and Architecture, 2010, 2(4): 61-65.

[7] Wei. Zhou, Wenzhong. Zheng, Unified Method and Simplification for Calculating Prestressing Equivalent Load(In Chinese) [J]. Journal of Harbin Institute of Technology, 2005, 37(1): 49-51.

[8] Ministry of Transport of the People's Republic of China. Code for Design of Highway Reinforced Concrete and Prestressed Concrete Bridges and Culverts(In Chinese) [S]. Beijing: China Communications Press, (2004).

[9] Bathe K J. Finite Element Procedures in Engineering Analysis [M]. New Jersey: Prentice-Hall Inc., (1982).
