A Novel Planar Dipole Antenna with Distributed Inductive Load for Size Reduction

Abstract:

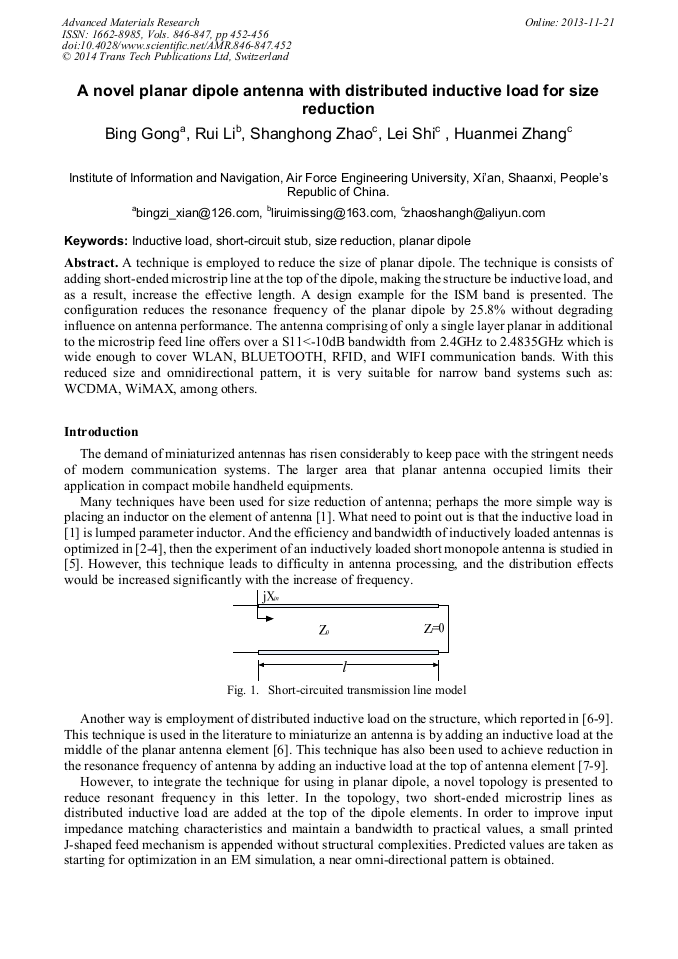

A technique is employed to reduce the size of planar dipole. The technique is consists of adding short-ended microstrip line at the top of the dipole, making the structure be inductive load, and as a result, increase the effective length. A design example for the ISM band is presented. The configuration reduces the resonance frequency of the planar dipole by 25.8% without degrading influence on antenna performance. The antenna comprising of only a single layer planar in additional to the microstrip feed line offers over a S11<-10dB bandwidth from 2.4GHz to 2.4835GHz which is wide enough to cover WLAN, BLUETOOTH, RFID, and WIFI communication bands. With this reduced size and omnidirectional pattern, it is very suitable for narrow band systems such as: WCDMA, WiMAX, among others.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 846-847)

Pages:

452-456

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.846-847.452

Citation:

Cite this paper

Online since:

November 2013

Authors:

Bing Gong*, Rui Li, Shang Hong Zhao, Lei Shi, Huan Mei Zhang

Keywords:

Inductive Load, Planar Dipole, Short-Circuit Stub, Size Reduction
