Effect of Cold Rolling on Sensitization of 304 Stainless Steel Weldments

M. Milad; N. Zreiba

doi:10.4028/www.scientific.net/AMR.856.60

Paper Titles

Machinability of Short Potassium Titanate Fiber Reinforced Aluminum Alloy Composites Fabricated by Squeeze Casting
p.36

The Effect of Silver and Silver-Platinum Doped Into 5A Zeolite on the Degradation of Naptalam
p.43

Preparation and Characterization of Au/Al₂O₃ and Au-Fe/Al₂O₃ Materials, Active and Selective Catalysts in Oxidation of Cyclohexene
p.48

In Situ Growth of Zinc Oxide Nanoparticles on Cotton Fabric Using Sonochemical Method
p.53

Effect of Cold Rolling on Sensitization of 304 Stainless Steel Weldments
p.60

Synthesis, Characterization and Evaluation of Property Profile of Hybrid Ion- Exchanger
p.64

Preparation and Characterization of Activated Carbons Based on Lignocellulosic Residues
p.69

Experimental and Numerical Study of Plain-Woven Aramid Fabric
p.74

Preparation of Three Dimensional Products Using Flow Deformability of Wood Treated by Small Molecular Resins
p.79

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 856Effect of Cold Rolling on Sensitization of 304...

Effect of Cold Rolling on Sensitization of 304 Stainless Steel Weldments

Abstract:

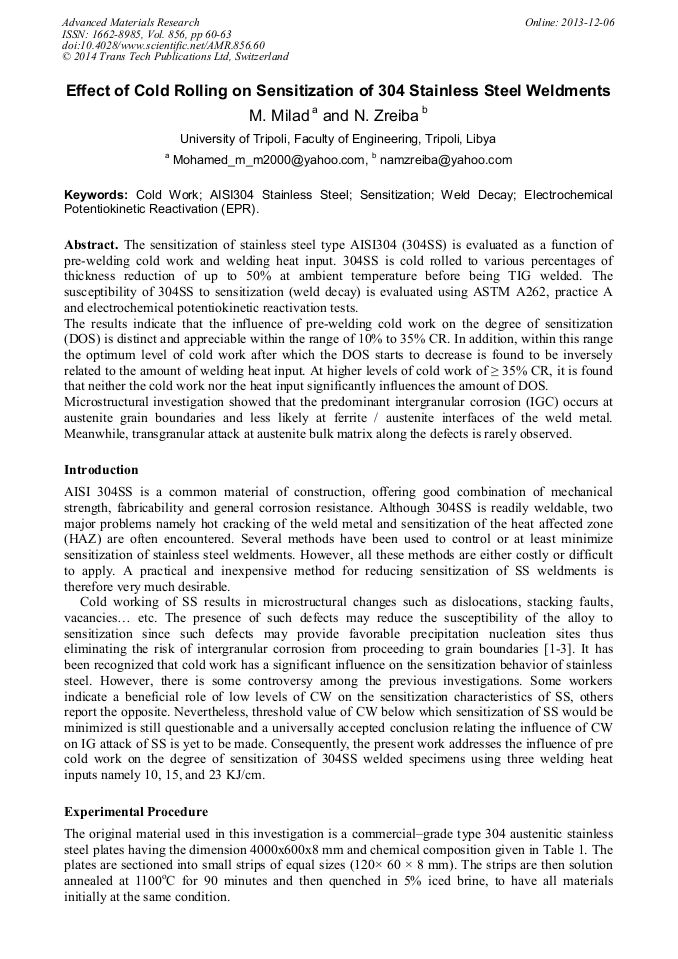

The sensitization of stainless steel type AISI304 (304SS) is evaluated as a function of pre-welding cold work and welding heat input. 304SS is cold rolled to various percentages of thickness reduction of up to 50% at ambient temperature before being TIG welded. The susceptibility of 304SS to sensitization (weld decay) is evaluated using ASTM A262, practice A and electrochemical potentiokinetic reactivation tests. The results indicate that the influence of pre-welding cold work on the degree of sensitization (DOS) is distinct and appreciable within the range of 10% to 35% CR. In addition, within this range the optimum level of cold work after which the DOS starts to decrease is found to be inversely related to the amount of welding heat input. At higher levels of cold work of ≥ 35% CR, it is found that neither the cold work nor the heat input significantly influences the amount of DOS. Microstructural investigation showed that the predominant intergranular corrosion (IGC) occurs at austenite grain boundaries and less likely at ferrite / austenite interfaces of the weld metal. Meanwhile, transgranular attack at austenite bulk matrix along the defects is rarely observed.
