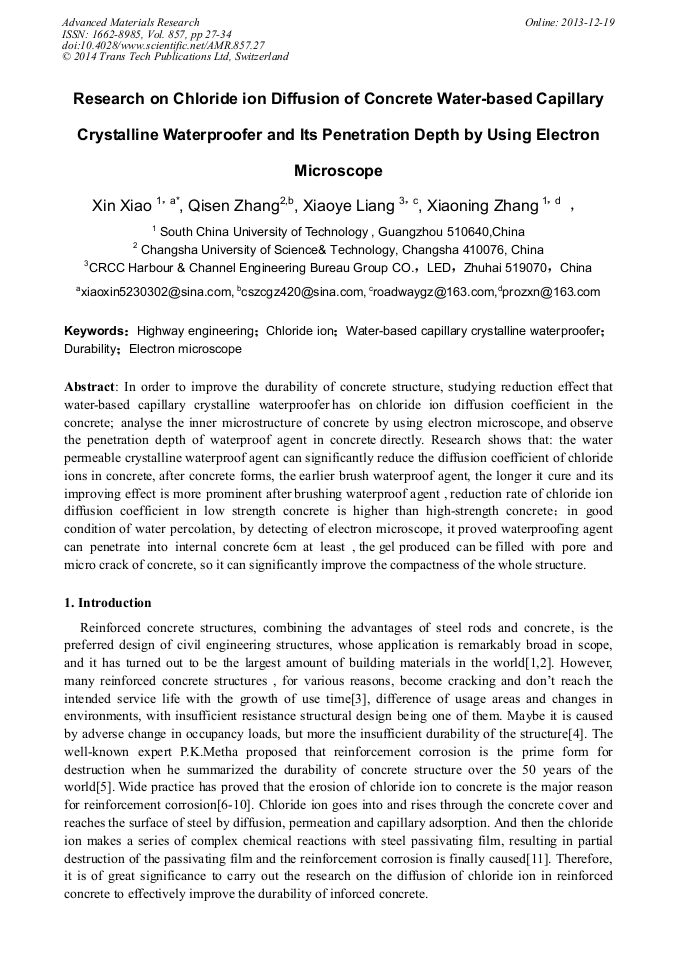

Research on Chloride Ion Diffusion of Concrete Water-Based Capillary Crystalline Waterproofer and its Penetration Depth by Using Electron Microscope

Abstract:

In order to improve the durability of concrete structure, studying reduction effect that water-based capillary crystalline waterproofer has on chloride ion diffusion coefficient in the concrete; analyse the inner microstructure of concrete by using electron microscope, and observe the penetration depth of waterproof agent in concrete directly. Research shows that: the water permeable crystalline waterproof agent can significantly reduce the diffusion coefficient of chloride ions in concrete, after concrete forms, the earlier brush waterproof agent, the longer it cure and its improving effect is more prominent after brushing waterproof agent , reduction rate of chloride ion diffusion coefficient in low strength concrete is higher than high-strength concrete;in good condition of water percolation, by detecting of electron microscope, it proved waterproofing agent can penetrate into internal concrete 6cm at least , the gel produced can be filled with pore and micro crack of concrete, so it can significantly improve the compactness of the whole structure.

• Periodical: Advanced Materials Research (Volume 857)
• Pages: 27-34
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.857.27
• Online since: December 2013
• Authors: Xin Xiao*, Qi Sen Zhang, Xiao Ye Liang, Xiao Ning Zhang
• Keywords: Chloride Ion, Durability, Electron Microscope, Highway Engineering, Water-Based Capillary Crystalline Waterproofer

References

[1] NIU Ditao. Durability and Life Forecast of Reinforced Concrete Structures [M]. Beijing: Science Press, 2003: 1-28. (in Chinese).

[2] FANG Yonghao, YU Tao, LU Zhenglong. Recent Developments on Chloride Penetration of Concrete Subjected to Loading[J]. Journal of the Chinese Ceramic Society, 2012, 40(11): 1537-1543. (in Chinese).

[3] WU Ke, XU Chun. Discussion on Durability Design of Concrete Structure. [J]. Engineering Journal of Wuhan University, 2012, 5(Supplement): 52-55. (in Chinese).

[4] JIN Weiliang, ZHAO Yuxi. Durability of Concrete Structures[M]. Beijing: Science Press, 2002：1-12. (in Chinese).

[5] ZHU Jichao. Durability Study of Reinforced Concrete Bridge under Chloride Ion Environment[D]. Changsha: Hunan University, 2008. (in Chinese).

[6] SUN Congtao. Study on Concrete Durability and Service Life Prediction Based on Chloride Corrosion[D]. Xi，an: Xi，an University of Architecture and Technology, 2011. (in Chinese).

[7] ZHANG Weiping, GUAN Xiaojun, REN Jiajun et al. Experimental Study on Chloride Permeability of Concrete Surface-Treated with Epoxy Resin[J]. Journal of Building Materials, 2008, 11(3): 340-344. (in Chinese).

[8] PAGE C L. Initiation of chloride-induced corrosion of steel in concrete: role of the interfacial zone [J]. Mater Corros, 2009, 60(8): 586–592.

DOI: 10.1002/maco.200905278

[9] Morris W, Vico A, Vazquez M. Chloride induced corrosion of reinforcing steel evaluated by concrete resistivity measurements[J]. Electrochemica Acta, 2007, 49(25): 4447-4453.

DOI: 10.1016/j.electacta.2004.05.001

[10] XU Chen, WANG Chuankun, JIN Wei liang. Interaction Effect of Chlorie Attack and Carbonization in Concrete[J]. Journal of Building Materials, 2011, 14(3): 376-380. (in Chinese).

[11] SHI Jinjie, SUN Wei. Recent Research on Steel Corrosion in Concrete[J]. Journal of the Chinese Ceramic Society, 2010, 38(9): 1753-1764. (in Chinese).

[12] JTG/T B07-01-2006, Specification for Deterioration Prevention of Highway Concrete Structure[S]. Beijing: China Communications Press, 2006. (in Chinese).

[13] LIANG Xiaoye. Waterbased Capillary Inorganic Waterproofer on the Durability of Concrete[D]. Changsha: Changsha University of Technology, 2009. (in Chinese).

[14] JC/T 1018-2006, Waterbased Capillary Inorganic Waterproofer[S]. Beijing: China Standard Press, 2006. (in Chinese).

[15] Leng Faguang, Tian Guanfei. Investigation of test methods of chloride ion Penetration in concrete[J]. Journal of Southeast University(Natural Science Editon) 2006, 36(SupplementⅡ): 32-38. (in Chinese).

[16] WU Jianhua, ZHANG Yamei. Overview of test methods of chloride ion penetration in concrete[J]. Concrete, 2009(2): 38-46. (in Chinese).
