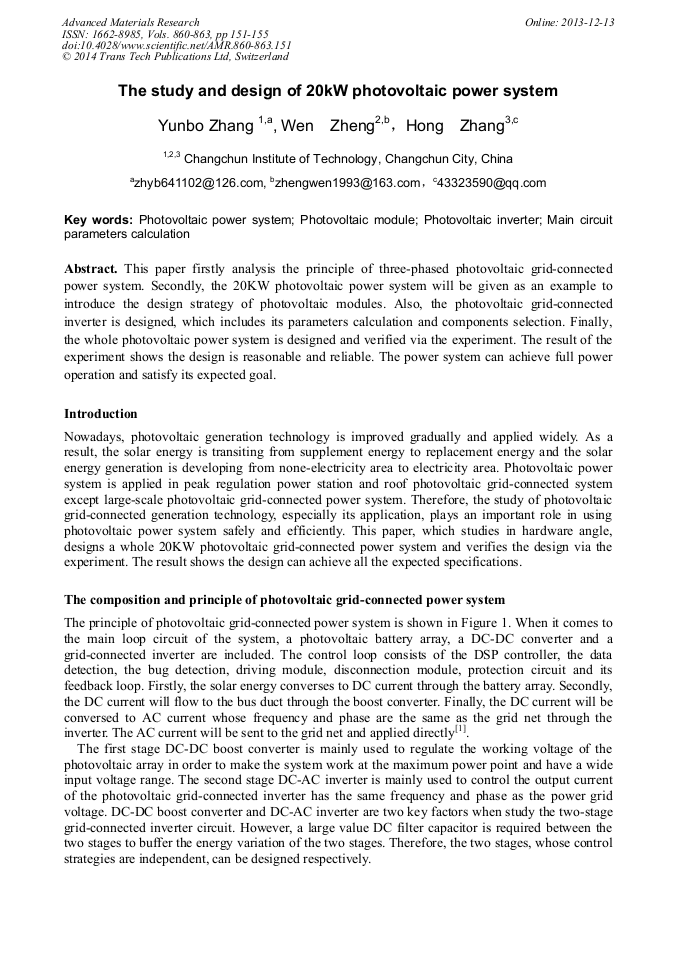

The Study and Design of 20kW Photovoltaic Power System

Abstract:

This paper firstly analysis the principle of three-phased photovoltaic grid-connected power system. Secondly, the 20KW photovoltaic power system will be given as an example to introduce the design strategy of photovoltaic modules. Also, the photovoltaic grid-connected inverter is designed, which includes its parameters calculation and components selection. Finally, the whole photovoltaic power system is designed and verified via the experiment. The result of the experiment shows the design is reasonable and reliable. The power system can achieve full power operation and satisfy its expected goal.

• Periodical: Advanced Materials Research (Volumes 860-863)
• Pages: 151-155
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.860-863.151
• Online since: December 2013
• Authors: Yun Bo Zhang*, Wen Zheng, Hong Zhang
• Keywords: Main Circuit Parameters Calculation, Photovoltaic Inverter, Photovoltaic Module, Photovoltaic Power System

References

[1] Zeng Cong, Liu Dichen: Algorithm and simulation research on space vector pulse width modulation[J]. Electric power science and engineering, 2009, 25(8): 5-9 (in Chinese).

[2] Liang Xue-feng, Zeng Guohong, Jiang, Jiu-chun: Design of Hardware System for 3 kW Singlephase Photovoltaic Grid-connected Inverter[J]. Power Electronics, 2008, 42(8): 28-29(in Chinese).

[3] Qiu Xue-na, Xu qing-he, Zhang Xue-jun: A System Design of 100KW Photovoltaic Grid-connected Inverter. Control Engineering of China, Vol. 20, No. 1: 72-75. (in Chinese).

[4] Xia Yun, Yi Ying-ping: The Main Circuit Parameter Design of 10 kW Three-phase Photovoltaic Grid-connected Inverter. Journal of Hunan Institute of Engineering, 2012, Vol. 22, No. 3: 9-12. (in Chinese).
