The Design Method of V-Tooth Coupling

Abstract:

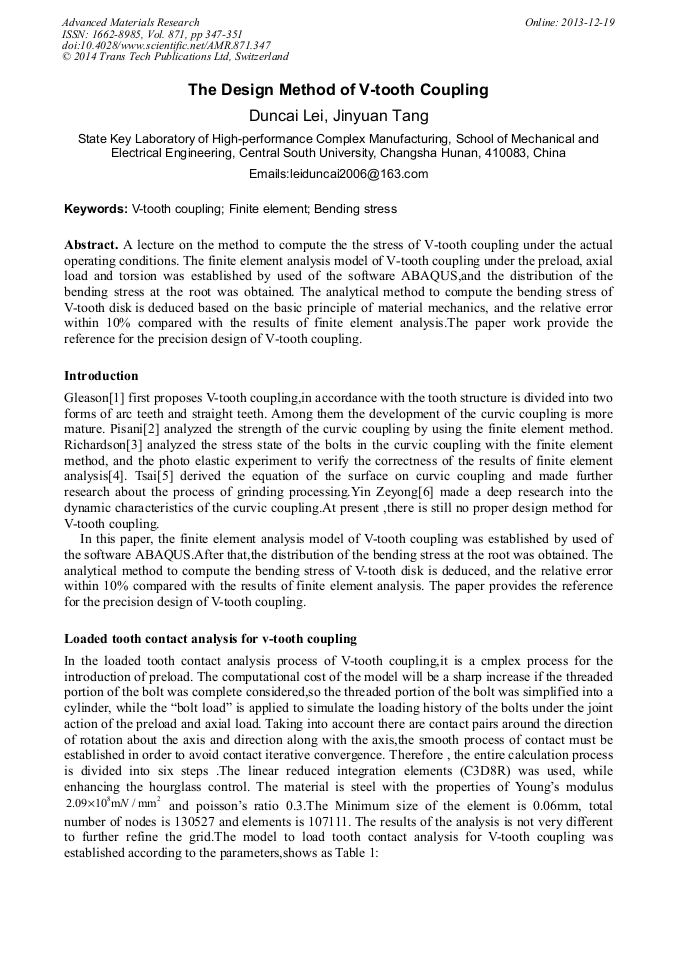

A lecture on the method to compute the the stress of V-tooth coupling under the actual operating conditions. the finite element analysis model of V-tooth coupling under the preload, axial load and torsion was established by used of the software ABAQUS,and the distribution of the bending stress at the root was obtained. The analytical method to compute the bending stress of V-tooth disk is deduced based on the basic principle of material mechanics, and the relative error within 10% compared with the results of finite element analysis.The paper work provide the reference for the precision design of V-tooth coupling.
