Properties of Copper-Based Composite Reinforced with Al2O3 Particles of Different Size

Viseslava Rajkovic; Dusan Bozic; Jelena Stasic; Milan T. Jovanovic; Huai Wen Wang

doi:10.4028/www.scientific.net/AMR.875-877.318

Paper Titles

Affection of Post-Nitrogen-Doping of TiO₂ Nanoparticle Film Photo-Anode on Performance of Dye-Sensitized Solar Cells
p.300

Preparation, Characterization and Catalytic Activity of Highly Dispersed Gold Catalyst
p.304

Composition of the Middle Phase Microemulsion Formed by Sodium Dodecyl Sulfonate/1-Alcohol/n-Alkane/Water
p.308

A New Route for the Synthesis of Pure Bi₄(SiO₄)₃ Crystals by Glass Melt-Cooling Method
p.313

Properties of Copper-Based Composite Reinforced with Al₂O₃ Particles of Different Size
p.318

Local Materials for Building Houses: Laterite Valorization in Africa
p.324

Biomimetic Nanofiber Scaffolds for Tendon-to-Bone Insertion Repair
p.331

Fillers in Electrical Papers for Power Transformers
p.335

Application of Plasma Electrolytic Oxidation for the Formation of Magnetoactive Oxide Layes
p.341

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 875-877Properties of Copper-Based Composite Reinforced...

Properties of Copper-Based Composite Reinforced with Al₂O₃ Particles of Different Size

Abstract:

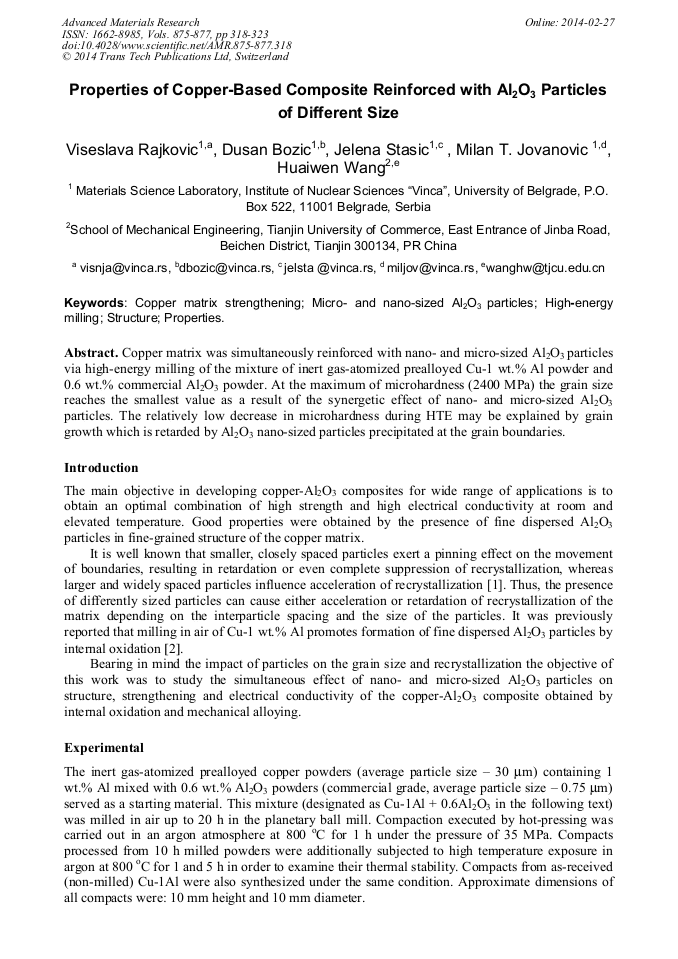

Copper matrix was simultaneously reinforced with nano- and micro-sized Al2O3 particles via high-energy milling of the mixture of inert gas-atomized prealloyed Cu-1 wt.% Al powder and 0.6 wt.% commercial Al2O3 powder. At the maximum of microhardness (2400 MPa) the grain size reaches the smallest value as a result of the synergetic effect of nano- and micro-sized Al2O3 particles. The relatively low decrease in microhardness during HTE may be explained by grain growth which is retarded by Al2O3 nano-sized particles precipitated at the grain boundaries.
