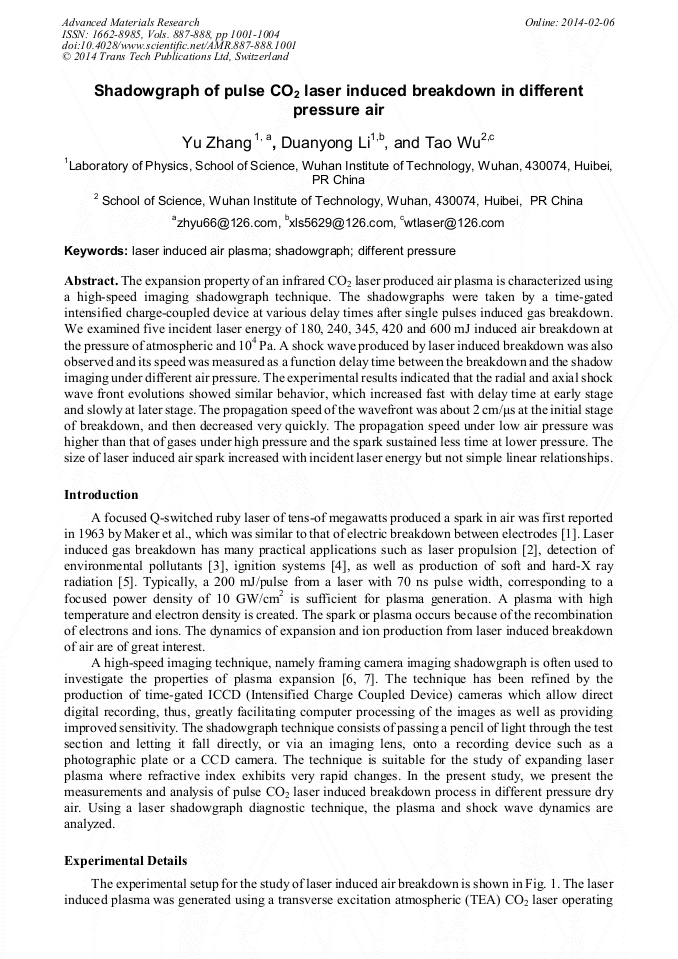

Shadowgraph of Pulse CO₂ Laser Induced Breakdown in Different Pressure Air

Abstract:

The expansion property of an infrared CO₂ laser produced air plasma is characterized using a high-speed imaging shadowgraph technique. The shadowgraphs were taken by a time-gated intensified charge-coupled device at various delay times after single pulses induced gas breakdown. We examined five incident laser energy of 180, 240, 345, 420 and 600 mJ induced air breakdown at the pressure of atmospheric and 10⁴ Pa. A shock wave produced by laser induced breakdown was also observed and its speed was measured as a function delay time between the breakdown and the shadow imaging under different air pressure. The experimental results indicated that the radial and axial shock wave front evolutions showed similar behavior, which increased fast with delay time at early stage and slowly at later stage. The propagation speed of the wavefront was about 2 cm/μs at the initial stage of breakdown, and then decreased very quickly. The propagation speed under low air pressure was higher than that of gases under high pressure and the spark sustained less time at lower pressure. The size of laser induced air spark increased with incident laser energy but not simple linear relationships.

You might also be interested in these eBooks

Advances in Materials and Materials Processing IV

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 887-888)

Pages:

1001-1004

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.887-888.1001

Citation:

Cite this paper

Online since:

February 2014

Authors:

Yu Zhang*, Duan Yong Li, Tao Wu

Keywords:

Different Pressure, Laser Induced Air Plasma, Shadowgraph

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] P. D. Maker, R.W. Terhune, and C. M. Savage, Optical third harmonic generation, In third International Conference on Quantum Electronics Proceeding, Paris, (1963).

Google Scholar

[2] A. Kantrowitz, Propulsion to orbit by ground-based lasers, , Astronautics and Aeronautics. 10, No. 5, 74-76 (1972).

Google Scholar

[3] B.W. Smith, D. W. Hahn, E. Gibb, I. Gornushkin, and J. D. Winefordner, Laser Induced Plasma Spectroscopy for the Characterization of Aerosols and Particulates, KONA, No. 19, 25-33(2001).

DOI: 10.14356/kona.2001008

Google Scholar

[4] D. Bradley, C. G. W. Sheppard, I .M. Suardjaja, and R. Woolley, Fundamentals of high-energy spark ignition with lasers, Combust. Flame 138, 55-77(2004).

DOI: 10.1016/j.combustflame.2004.04.002

Google Scholar

[5] L. J Radziemski and D. A. Cremers, Laser-Induced Plasmas and Applications, Marcel Dekker, New York, (1989).

Google Scholar

[6] R. Mark Rennie, D. Goorskey, M. R. Whitele, and E. J. Jumper, Wavefront measurements of a laser-induced breakdown spark in still air, Appl. Opt., 51, 2306-2314, (2012).

DOI: 10.1364/ao.51.002306

Google Scholar

[7] N. Zhang, Z. H. Wu, K. H. Xu, and X. N. Zhu, Characteristics of micro air plasma produced by double femtosecond laser pulses, Opt. Express, 20, 2528-2538, (2012).

DOI: 10.1364/oe.20.002528

Google Scholar
