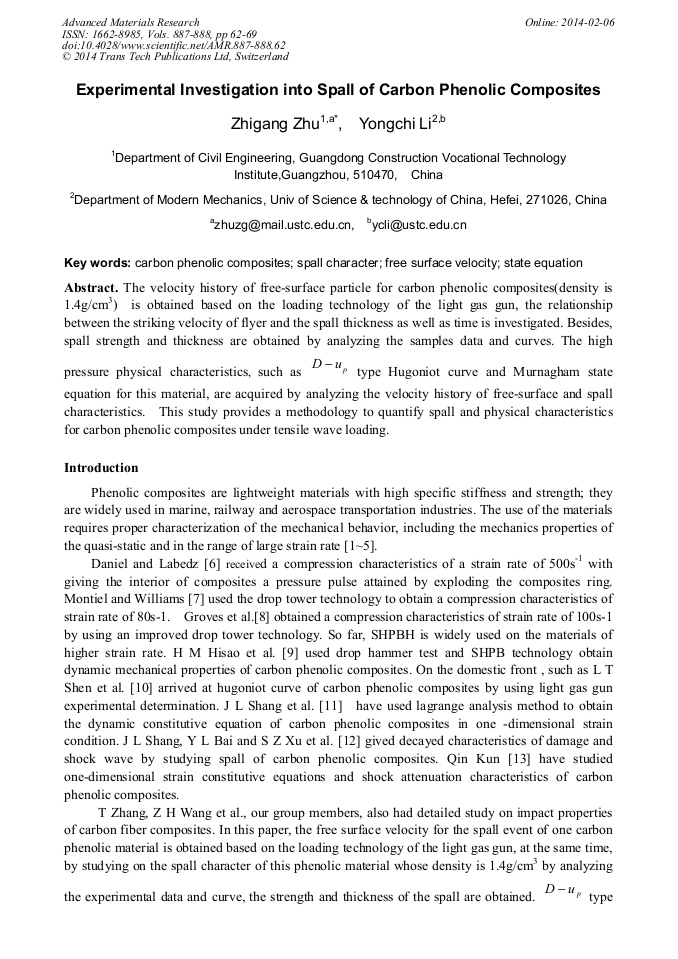

Experimental Investigation into Spall of Carbon Phenolic Composites

Abstract:

The velocity history of free-surface particle for carbon phenolic composites (density is 1.4g/cm³) is obtained based on the loading technology of the light gas gun, the relationship between the striking velocity of flyer and the spall thickness as well as time is investigated. Besides, spall strength and thickness are obtained by analyzing the samples data and curves. The high pressure physical characteristics, such as type Hugoniot curve and Murnagham state equation for this material, are acquired by analyzing the velocity history of free-surface and spall characteristics. This study provides a methodology to quantify spall and physical characteristics for carbon phenolic composites under tensile wave loading.

• Periodical: Advanced Materials Research (Volumes 887-888)
• Pages: 62-69
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.887-888.62
• Online since: February 2014
• Authors: Zhi Gang Zhu, Yong Chi Li
• Keywords: Carbon Phenolic Composites, Free Surface Velocity, Spall Character, State Equation

References

[1] T Zhang. Study on dynamic mechanical behavior and propagation law in carbon fiber reinforced phenolic aldehyde. Thesis for Master degree. University of Science and Technology of China, Anhui. (2006).

[2] Z L Wang, etc. A study on mechanical properties of carbon/phenolic composites. Mechanics of Materials 40 (4/5): 418–426. (2008).

[3] Y C Li, Z L Wang, T Zhang, Z. H Wang. Experimental and theoretical study on static and dynamic mechanical properties of new type phenol-formaldehyde reinforced with carbon-fibers. Research Technology Report, USTC, Anhui. (2006).

[4] Z. H Wang, Y. C Li, etc. Study on state equation of neotype carbon fiber reinforced phenolic aldehyde. Journal of Experimental Mechanics 21(5): 624–629. (2006).

[5] Z.G. Zhu,. Experimental study and numerical simulation of spall failure for a porous phenolic material. Thesis for Master degree. University of Science and Technology of China, Anhui. (2007).

[6] I.M. Daniel and R. h. Labedz. Method for Compression Testing of Composite Materials at high Strain Rates, Compression Testing of Homogeneous Materials and Composites, ASTM STP808,R. Chail and R. Papirno(eds. ), American Society for Testing and Materials, Philadelphia, pp: 121-139. (1983).

DOI: 10.1520/stp36200s

[7] D.M. Montiel and C.J. Williams. A Method for Evaluating the High Strain Rate Compressive Properties of Composite Materials, Composite Materials: Testing and Design (Tench Volume), ASTM STP 1120,G.C. Grimes(ed. ), American Society for Testing and Materials, Philadelphia, pp: 54-65. (1992).

DOI: 10.1520/stp20144s

[8] S.E. Groves, R.J. Sanche, R.E. Lyon and A.E. Brown. High strain rate effects for composite materials, Composite Materials: Testing and Deaign(EElventh Volume), ASTM STP1206, E.T. Camponeschi(ed. ), American Society for Testing and Materials, Philadelphia, pp: 162-176. (1993).

DOI: 10.1520/stp12626s

[9] H.M. Hsiao, I.M. Danel, R.D. Cordes. Strain rate effects on the transverse compressive and shear behavier of unidirectional composites. [J]. Composite Materials, Vol. 33, No. 17, pp: 1621-1642. (1999).

DOI: 10.1177/002199839903301703

[10] L T Shen，etc. Hugniot determination of carbon phenolic composite. Research Report. Institute of Mechanics, Chinese Academy of Sciences. (1988).

[11] J L Shang, etc. Dynamic constitutive equation of carbon phenolic composite. Research Report. Institute of Mechanics, Chinese Academy of Sciences. (1990).

[12] J L Shang，Y L Bai，S Z Xu. Spall property of carbon fire reinforced phenolic-resin composite. Missiles and Space Vehicles. No 5: 47-53. (1995).

[13] K Qin. Basic Properties and Related Research on Carbon Phenolic Resin Composite Materials. Thesis for Master degree. Aerospace Industry Corporation 14th Institute, Beijing. (1993).

[14] Z G Zhu, Y C Li, Y Guo. etc. Spall study on a porous phenolic material. Journal of University of Science and Technology of China 38(11): 1294–1298. (2008).
