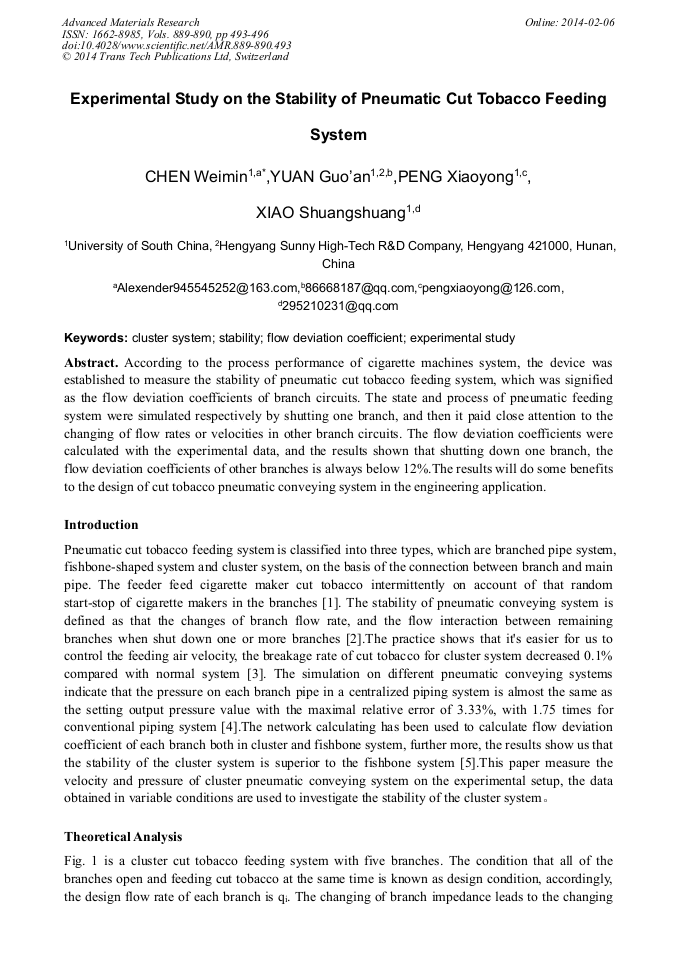

Experimental Study on the Stability of Pneumatic Cut Tobacco Feeding System

Abstract:

According to the process performance of cigarette machines system, the device was established to measure the stability of pneumatic cut tobacco feeding system, which was signified as the flow deviation coefficients of branch circuits. The state and process of pneumatic feeding system were simulated respectively by shutting one branch, and then it paid close attention to the changing of flow rates or velocities in other branch circuits. The flow deviation coefficients were calculated with the experimental data, and the results shown that shutting down one branch, the flow deviation coefficients of other branches is always below 12%.The results will do some benefits to the design of cut tobacco pneumatic conveying system in the engineering application.

You might also be interested in these eBooks

Engineering Solutions for Manufacturing Processes IV

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 889-890)

Pages:

493-496

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.889-890.493

Citation:

Cite this paper

Online since:

February 2014

Authors:

Wei Min Chen*, Guo An Yuan, Xiao Yong Peng, Shuang Shuang Xiao

Keywords:

Cluster System, Experimental Study, Flow Deviation Coefficient, Stability

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Z.L. Kuang, G.R. Li etc: Feasibility Analysis of Integration of Cut Tobacco Conveying System with Sliver Collecting System. Tobacco Science and Technology. Vol. 3(2010), pp.11-14.

Google Scholar

[2] Y.Z. Fu, K.Q. Wu: Stability Analysis of Closed-loop Water System. Fluid Machinery. Vol. 33(2005), pp.45-48.

Google Scholar

[3] H. Xie, X. Z Zheng, X.Y. Peng: Design and Application on the Constant Pressure Cluster Device Type of Tobacco Pneumatic Conveying. Packaging and Food Machinery. Vol. 30(2012), pp.6-69.

Google Scholar

[4] W.H. Wang S.L. Dai etc: 3D Simulation for Pneumatic System in Cigarette Makers of Different Piping Structure. Tobacco Science and Technology. Vol. 9(2012), pp.24-26.

Google Scholar

[5] J. F Li, G.R. Li etc: Stability Analysis of Structure of Pipe in Pneumatic Cut Tobacco Feeding System of Cigarette Maker. Journal of University of South China (Science and Technology). Vol. 26(2012), pp.51-55.

Google Scholar

[6] B. Huang: The Application of Pneumatic Conveying in Cigarette Industry. China Light Industry Press.

Google Scholar

[7] X. Zhang, G.R. Li: Measurement of Air Velocity in Cut Tobacco Pneumatic Conveying Tube. Tobacco Science & Technology. Vol. 2(2006), pp.18-21.

Google Scholar

[8] W.B. Zhang: The Selection and Calculation of Blast System Parameter in Cigarette Factory. Journal of Beijing Vocational & Technical Institute of Industry. Vol. 4 (2005), pp.38-40.

Google Scholar
