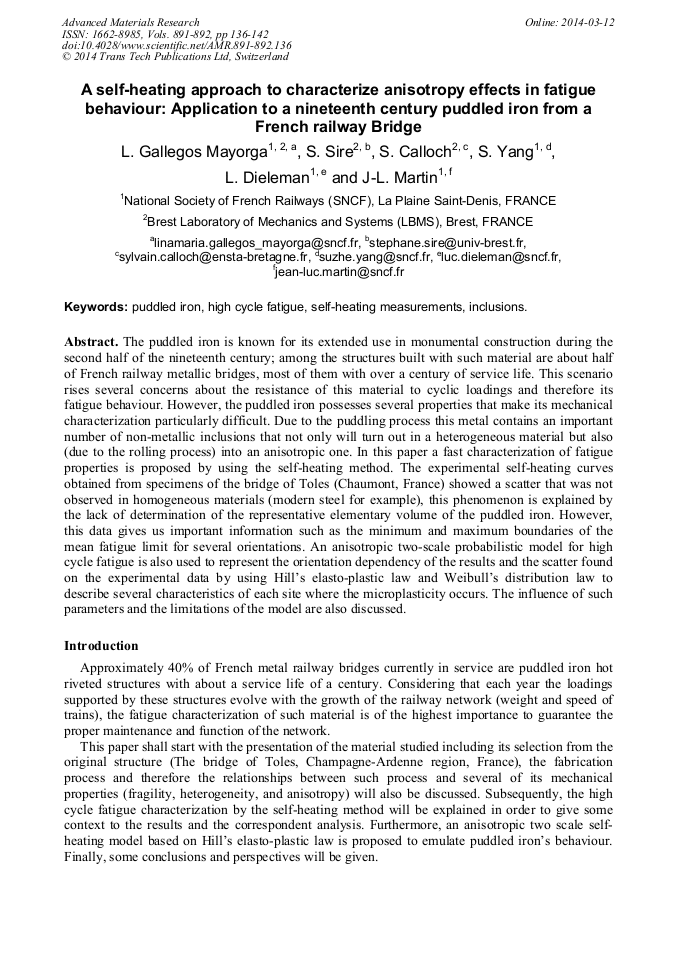

A Self-Heating Approach to Characterize Anisotropy Effects in Fatigue Behaviour: Application to a Nineteenth Century Puddled Iron from a French Railway Bridge

Abstract:

The puddled iron is known for its extended use in monumental construction during the second half of the nineteenth century; among the structures built with such material are about half of French railway metallic bridges, most of them with over a century of service life. This scenario rises several concerns about the resistance of this material to cyclic loadings and therefore its fatigue behaviour. However, the puddled iron possesses several properties that make its mechanical characterization particularly difficult. Due to the puddling process this metal contains an important number of non-metallic inclusions that not only will turn out in a heterogeneous material but also (due to the rolling process) into an anisotropic one. In this paper a fast characterization of fatigue properties is proposed by using the self-heating method. The experimental self-heating curves obtained from specimens of the bridge of Toles (Chaumont, France) showed a scatter that was not observed in homogeneous materials (modern steel for example), this phenomenon is explained by the lack of determination of the representative elementary volume of the puddled iron. However, this data gives us important information such as the minimum and maximum boundaries of the mean fatigue limit for several orientations. An anisotropic two-scale probabilistic model for high cycle fatigue is also used to represent the orientation dependency of the results and the scatter found on the experimental data by using Hills elasto-plastic law and Weibulls distribution law to describe several characteristics of each site where the microplasticity occurs. The influence of such parameters and the limitations of the model are also discussed.

• Periodical: Advanced Materials Research (Volumes 891-892)
• Pages: 136-142
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.891-892.136
• Online since: March 2014
• Authors: Linamaría Gallegos Mayorga*, Stéphane Sire, Sylvain Calloch, Suzhe Yang, Luc Dieleman, Jean Luc Martin
• Keywords: High Cycle Fatigue (HCF), Inclusion, Puddled Iron, Self-Heating Measurements

References

[1] S. Suresh, Fatigue of Materials, Cambridge University Press, Cambridge (UK), Second edition, (1998).

[2] Sire S, Gallegos Mayorga L, Martin JL, Doudard C, Calloch S. Fast characterization of fatigue properties of a French historical railway bridge puddle iron. In: Jasienko J, editor. Proc of the Int Conf on Structural Analysis of Historical Constructions, Wroclaw: DWE; 2012, vol. 3, pp.2231-7.

[3] M. P. Luong, Infrared thermography of fatigue in metals, SPIE, 1682: 222 - 233, (1992).

[4] G. A. Kurilenko, Advanced infrared examining of the metals fatigue, Proceedings of International workshop on Advanced Infrared Technology and Applications, pages 253 - 262, Capry (Italy), 1996; Atti della Fondazione G. Ronchianno LI.

[5] J. -C. Krapez, D. Pacon & C. Bertin, Application of lock-in thermography to a rapid evaluation of the fatigue limit in metals. In Ed. E. Grinzato et Al. Editors, 5th AITA, International workshop on Advanced Infrared Technology and Applications, pages 379 - 385, Venezia (Italy), (1999).

[6] G. La Rosa & A. Risitano, Thermographic methodology for rapid determination of the fatigue limit of materials and mechanical components, International Journal of Fatigue, 22 (1): 65 - 73, (2000).

DOI: 10.1016/s0142-1123(99)00088-2

[7] P. K. Liaw, H. Wang, L. Jiang, B. Yang, J. Y. Huang, R. C. Kuo & J. C. Huang. Thermographic detection of fatigue damage of pressure vessels steels at 1000Hz and 20Hz. Scripta Materiala, 42 (4): 389 - 395, (2000).

DOI: 10.1016/s1359-6462(99)00358-9

[8] C. Mabru & A. Chrysochoos. Dissipation et couplages accompagnant la fatigue des matériaux métalliques. In Y. Berthaud, M. Cottron; J. -C. Dupré, F. Morestin, J. -J. Orteu & V. Valle Editors, Photomécanique 2001, pages 375 - 382, GAMAC, (2001).

[9] Doudard C., Calloch S., Cugy P. Galtier A. & Hild F, A probabilistic two-scale model for high-cycle fatigue life predictions, Fatigue and Fracture of Engineering Materials and Structures, 28(3), 279-288, (2005).

DOI: 10.1111/j.1460-2695.2005.00854.x
