Experimental Study on Enhancement of Steel Mechanical Properties by High Pressure Jet Quenching

Chia Hao Chang; Fang Zhou Lin; Zong Han Lee; Bo Han Wang; Rin Yo Huang; Cheng En Wu; Chin Chuan Huang; Chia Min Wei

doi:10.4028/www.scientific.net/AMR.893.634

Paper Titles

Load Bearing Capacity Tests of Mechanical Joining on Timber-Concrete Beam
p.614

Experimental Research on Cutting Temperature of AISI 1045 in High Speed Milling Process
p.621

Effect of Hot Processing Parameters on the Deformation Behavior of Superalloy GH4169
p.625

Monitoring Welding Discontinuities with Fuzzy Control Chart
p.630

Experimental Study on Enhancement of Steel Mechanical Properties by High Pressure Jet Quenching
p.634

The Cutting Residual Stress Included in the Surface Integrity
p.638

Influence of the Intermediate Annealing on Deformation Ability of the Cold Rolled Ring
p.644

Effect on the Grinding Performance by the Different Elements of the Auxiliary Material
p.649

Influence of Minimum Quantity Lubrication on Cutting Force and Tool Wear during Machining of GH4169
p.653

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 893Experimental Study on Enhancement of Steel...

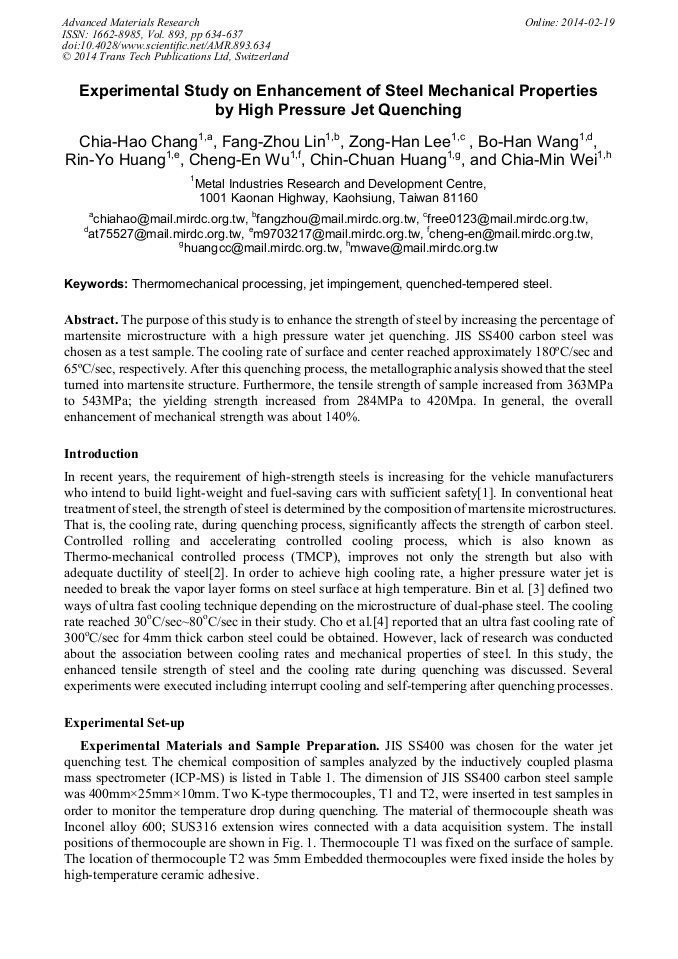

Experimental Study on Enhancement of Steel Mechanical Properties by High Pressure Jet Quenching

Abstract:

The purpose of this study is to enhance the strength of steel by increasing the percentage of martensite microstructure with a high pressure water jet quenching. JIS SS400 carbon steel was chosen as a test sample. The cooling rate of surface and center reached approximately 180oC/sec and 65oC/sec, respectively. After this quenching process, the metallographic analysis showed that the steel turned into martensite structure. Furthermore, the tensile strength of sample increased from 363MPa to 543MPa; the yielding strength increased from 284MPa to 420Mpa. In general, the overall enhancement of mechanical strength was about 140%.
