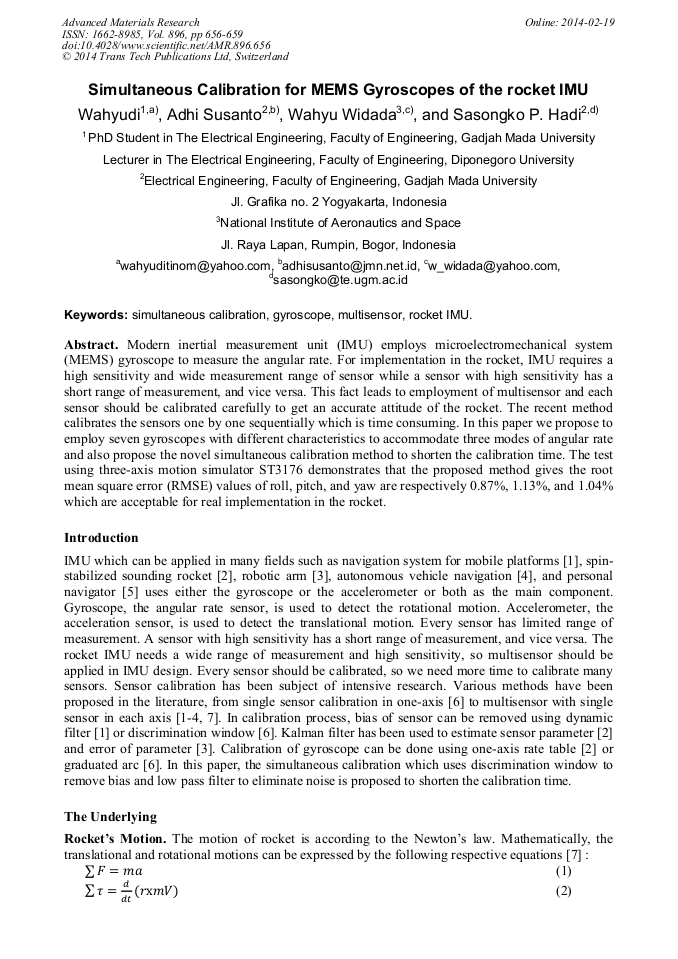

Simultaneous Calibration for MEMS Gyroscopes of the Rocket IMU

Abstract:

MEMS (Microelectromechanical System), as an advanced sensor technology, is low power, low cost, and small size. Gyroscope sensor produced with microelectromechanical technology is an angular rate sensor. IMU (Inertial Measurement Unit) sensor for rocket should have a very wide range of measurements. At the beginning of the motion, the rocket accelereation is very high, for which the rocket IMU requires a multisensor with different sensitivity. This paper presents the design of the rocket IMU and its calibration method for all MEMS gyroscopes. Calibration for each sensor is necessary including its varying characteristics. The calibration of the gyroscope sensors use three-axis motion simulator model ST 3176 with resolutions 0.00001 for all axes. Simultaneous calibration was mutually applied which require a short calibration time. The results show that root mean square errors (RMSE) of the calibrated gyroscope for all axes are under 2.5 %. Therefore, that the calibrated gyroscope can be used in the proposed real application.

• Periodical: Advanced Materials Research (Volume 896)
• Pages: 656-659
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.896.656
• Online since: February 2014
• Authors: Wahyudi Wahyudi*, Adhi Susanto, Wahyu Widada, Sasongko P. Hadi
• Keywords: Gyroscope, Rocket IMU, Sensor, Simultaneous Calibration

References

[1] Batista, Pedro., C. Silvestre, Paulo Oliveira, and Bruno Cardeira, Accelerometer Calibration and Dynamic Bias and Gravity Estimation: Analysis, Design, and Experimental Evaluation, IEEE Transactions on Control System Technology, Vol. 19, No. 5, September 2011, pp.1128-1137.

DOI: 10.1109/tcst.2010.2076321

[2] Bekkeng, Jan K., Calibration of Novel MEMS Inertian Reference Unit, IEEE Transactions on Instrumentation and Measurement, Vol. 58, No. 6, June 2009, p.1967 – (1974).

DOI: 10.1109/tim.2008.2006126

[3] Beravs, T., J. Podobnik, and M. Munih, Three-Axial Accelerometer Calibration Using Kalman Filter Covariance Matrix for Online Estimation of Optimal Sensor Orientation IEEE Transactions on Instrumentation and Measurement, Vol. 61, No. 9, Sept. 2012, p.2501.

DOI: 10.1109/tim.2012.2187360

[4] Hossein, Tehrani Nik Nejad., Seiichi Mita, and Han Long, Multi-Sensor Data Fusion for Autonomous Vehicle Navigation through Adaptive Particle Filter, IEEE Intelligent Vehicles Symposium, San Diego, CA, USA June 21-24, 2010, p.752 – 759.

DOI: 10.1109/ivs.2010.5548052

[5] Moafipoor, S., D.A. Grejner-Brzezinska, and C. K. Toth, Multi-sensor Personal Navigator Supported by Adaptive Knowledge Based System : Performance Assessment, IEEE/ION Position, Location, and Navigation System, Monterey, CA, USA, 5-8 May 2008, p.129.

DOI: 10.1109/plans.2008.4570049

[6] Wahyudi, Adhi Susanto, Wahyu Widada, and Sasongko Pramono Hadi, Calibration Method of Rate-Gyroscope Sensor for IMU Rocket, Journal of Aerospace Technology, Vol. 10, No. 2, December 2012, p.105 – 111.

[7] Wahyudi, Adhi Susanto, Wahyu Widada, and Sasongko Pramono Hadi, Inertial Measurement Unit Using Multi-gain Accelerometer Sensor and Gyroscope Sensor, International Conference on Electrical Engineering and Informatics, Bandung, Indonesia, 17-19 July 2011, p.1.

DOI: 10.1109/iceei.2011.6021822
