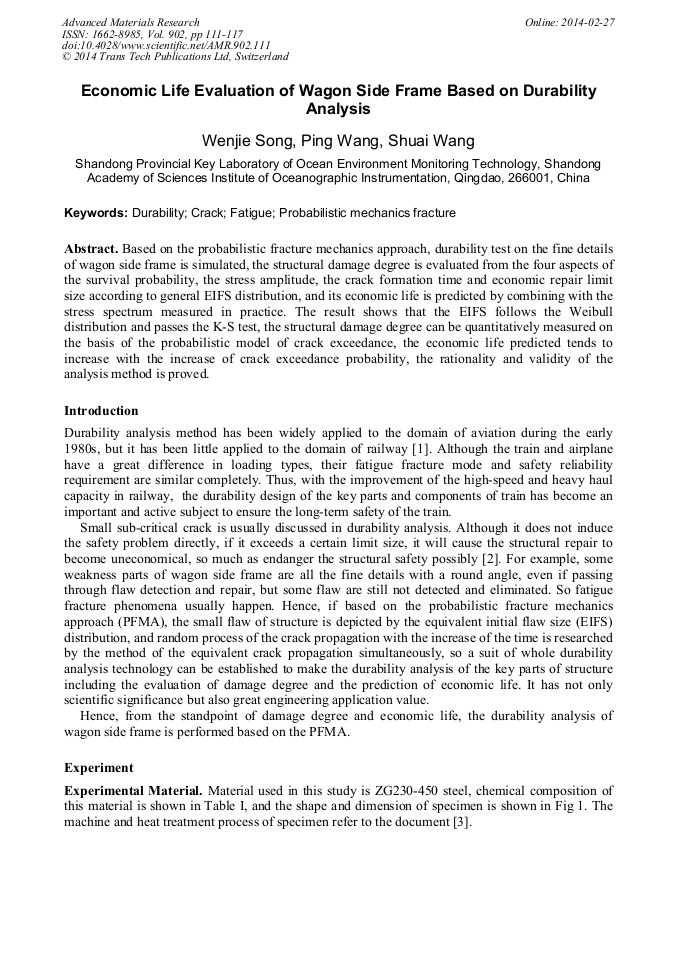

Economic Life Evaluation of Wagon Side Frame Based on Durability Analysis

Abstract:

Based on the probabilistic fracture mechanics approach, durability test on the fine details of wagon side frame is simulated, the structural damage degree is evaluated from the four aspects of the survival probability, the stress amplitude, the crack formation time and economic repair limit size according to general EIFS distribution, and its economic life is predicted by combining with the stress spectrum measured in practice. The result shows that the EIFS follows the Weibull distribution and passes the K-S test, the structural damage degree can be quantitatively measured on the basis of the probabilistic model of crack exceedance, the economic life predicted tends to increase with the increase of crack exceedance probability, the rationality and validity of the analysis method is proved.

• Periodical: Advanced Materials Research (Volume 902)
• Pages: 111-117
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.902.111
• Online since: February 2014
• Authors: Wen Jie Song*, Ping Wang, Shuai Wang
• Keywords: Crack, Durability, Fatigue, Probabilistic Mechanics Fracture

References

[1] Y. Moucun and N. Hong, Analysis approach to durability based on material initial fatigue quality and S-N curve, Chinese Journal of Aeronautics, 2007, vol. 20, Aug. 2007, pp.518-523.

DOI: 10.1016/s1000-9361(07)60076-4

[2] S. Barter and P. Sharp, Holden G. Initiation and early growth of fatigue cracks in an aerospace aluminum alloy, Fatigue Frac Eng Mate Struc, vol. 25, Feb. 2002, pp.111-125.

DOI: 10.1046/j.1460-2695.2002.00482.x

[3] Q. Limiao, Original crack distribution test research on the round angle detail of grade B cast steel bogie side-frame, [D]. Beijing: Beijing Jiaotong University, July, (2003).

[4] X. Jianxin, Initial fatigue quality of details with a R angle, Mechanical Science and Technology, vol, 17, Oct. 1998, pp.729-731.

[5] W. Zhiyi. A new experimental approach to determine initial fatigue quality with fastener holes, Engineering Fracture Mechanics, vol, 48, Oct. 1994, pp: 749-753.

DOI: 10.1016/0013-7944(94)90181-3

[6] K. M. Gruenberg, B. A. Craig and B. M. Hillberry, Probabilistic method for predicting the variability in the fatigue behavior of 7075-T6 aluminum, AIAA Journal, vol, 48, Oct. 1999, pp: 1304-1310.

DOI: 10.2514/3.14322

[7] L. Wenting, L Yi and T. Mingbo, The research on a model of probability damage tolerance analysis, Acta Aeronautica Et Astronautica Sinica, vol. 14, Feb. 1993, pp: 134-139.

[8] Zhu W Q, Lin Y K, Lei Y. On fatigue crack growth under random loading, Engineering Fracture Mechanics, vol, 43, Apri. 1992, pp: 1-12.

DOI: 10.1016/0013-7944(92)90307-z
