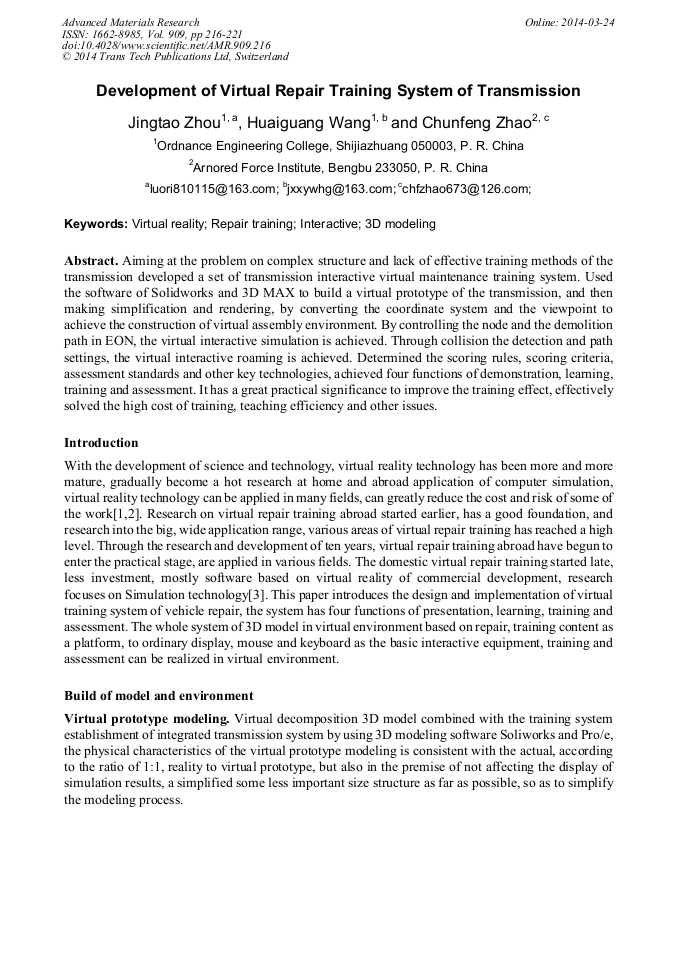

Development of Virtual Repair Training System of Transmission

Abstract:

Aiming at the problem on complex structure and lack of effective training methods of the transmission developed a set of transmission interactive virtual maintenance training system. Used the software of Solidworks and 3D MAX to build a virtual prototype of the transmission, and then making simplification and rendering, by converting the coordinate system and the viewpoint to achieve the construction of virtual assembly environment. By controlling the node and the demolition path in EON, the virtual interactive simulation is achieved. Through collision the detection and path settings, the virtual interactive roaming is achieved. Determined the scoring rules, scoring criteria, assessment standards and other key technologies, achieved four functions of demonstration, learning, training and assessment. It has a great practical significance to improve the training effect, effectively solved the high cost of training, teaching efficiency and other issues.

• Periodical: Advanced Materials Research (Volume 909)
• Pages: 216-221
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.909.216
• Online since: March 2014
• Authors: Jing Tao Zhou, Huai Guang Wang, Chun Feng Zhao
• Keywords: 3D Modeling, Interactive, Repair Training, Virtual Reality (VR)

References

[1] Xingren WANG, Chuanyuan WEN, Bohu LI, et al. Development of china's system model and simulation technology. Journal of System Simulation, 2009, 21 (21): 6683-6688.

[2] Qisheng GUO, Zhiming DONG, Liang LI, et al. System modeling and simulation. Beijing: National Defense Industry Press, (2007).

[3] Jishuai TAN, Jianping HAO, Songshan WANG. A summary of equipment virtual training system's research and development. Ordnance Industry Automation, 2007, 26(5): 6-7.

[4] Yuanchang ZHU, Yanqiang DI, Houde QUAN, et al. Simulation training system of general radar equipment and key technology. Journal of System Simulation, 2005, 17(11): 2633-2637.

[5] Jingcheng ZHAO. Design and practice of virtual simulation training system. Beijing: National Defense Industry Press, 2008: 19-20.

[6] Jiawu HE, Yukun LAI. Development of weapon equipment virtual maintenance training system. Science of Technology, 2010, 28(24): 71-74.

[7] Ying LIU, Yuanchemg ZHU, Yanqiang DI. Complex equipment modeling method for virtual training system. Journal of Ordnance Engineering College, 2008, 20(3): 4-7.

[8] Dan LI, Sixin YANG, Yuhang YANG. Helicopter maintenance training simulation system. Computer Engineering and Design, 2009, 30(5): 1212-1215.
