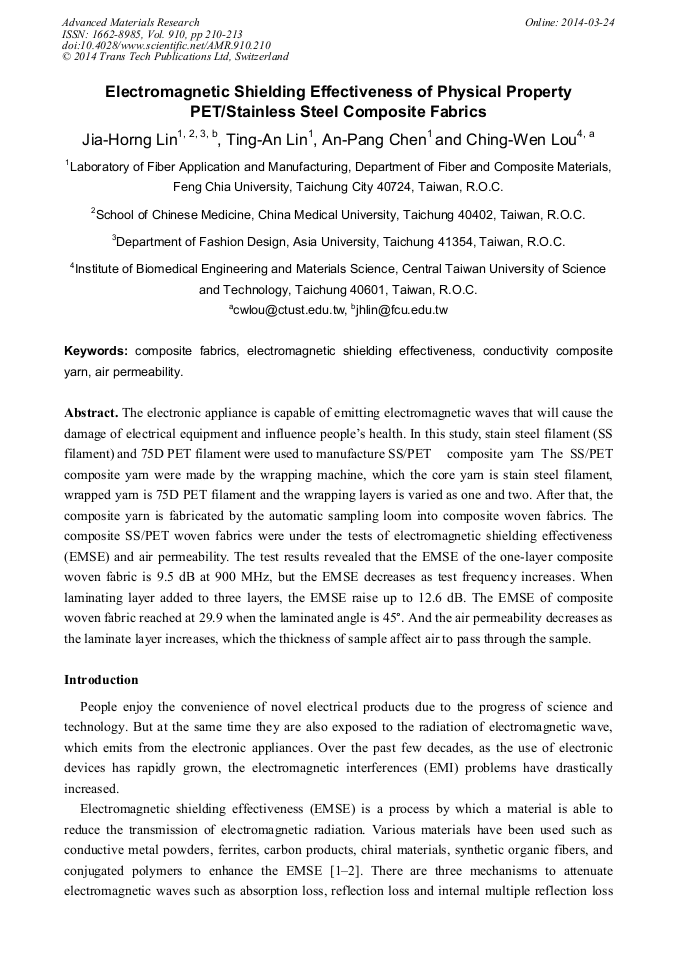

Electromagnetic Shielding Effectiveness of Physical Property PET/Stainless Steel Composite Fabrics

Abstract:

The electronic appliance is capable of emitting electromagnetic waves that will cause the damage of electrical equipment and influence peoples health. In this study, stain steel filament (SS filament) and 75D PET filament were used to manufacture SS/PET composite yarn The SS/PET composite yarn were made by the wrapping machine, which the core yarn is stain steel filament, wrapped yarn is 75D PET filament and the wrapping layers is varied as one and two. After that, the composite yarn is fabricated by the automatic sampling loom into composite woven fabrics. The composite SS/PET woven fabrics were under the tests of electromagnetic shielding effectiveness (EMSE) and air permeability. The test results revealed that the EMSE of the one-layer composite woven fabric is 9.5 dB at 900 MHz, but the EMSE decreases as test frequency increases. When laminating layer added to three layers, the EMSE raise up to 12.6 dB. The EMSE of composite woven fabric reached at 29.9 when the laminated angle is 45°. And the air permeability decreases as the laminate layer increases, which the thickness of sample affect air to pass through the sample.

• Periodical: Advanced Materials Research (Volume 910)
• Pages: 210-213
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.910.210
• Online since: March 2014
• Authors: Jia Horng Lin, Ting An Lin, An Pang Chen, Ching Wen Lou*
• Keywords: Air Permeability, Composite Fabrics, Conductivity Composite Yarn, Electromagnetic Shielding Effectiveness

References

[1] J. Cao, W. Y. Fu, H. B. Yang, Q. J. Yu and Y. Y. Zhang: J. Phys. Chem. B. Vol. 113(2009), p.4642.

[2] N. J. Tang, W. Zhong, C. Au, Y. Yang, M. G. Han, K. J. Lin and Y. W. Du: J Phys. Chem. B. Vol. 112 (2008), p.19316.

[3] B.W. Li, Y. Shen, Z.X. Yue and C.W. Nan: Appl. Phys. Lett. Vol. 89 (2006), p.132504.

[4] K. Rajendrakumar and G. Thilagavathi: Indian. J. Fibre. Text. Res. Vol. 37 (2012), p.133.

[5] T. Brzeziński, T. Rybicki, G. Malinowska, I. Karbownik, E. Rybicki and L. Lech Szugajew: Fibres Text. East. Eur. Vol. (72) (2009), p.60.

[6] J.H. Lin, A.P. Chen, C.M. Lin, C.W. Lin, C.T. Hsieh and C.W. Lou: Fiber. Polym. Vol. 11 (2010), p.856.

[7] C.M. Lin, C.C. Huang, C.W. Lou, A.P. Chen, S.E. Liou and J.H. Lin: Fibres Text. East. Eur. Vol. 19 (2011), p.28.

[8] C.W. Lou, C.M. Lin, A.P. Chen and J.H. Lin: Text. Res. J. Vol. 81(2011), p.1331.
