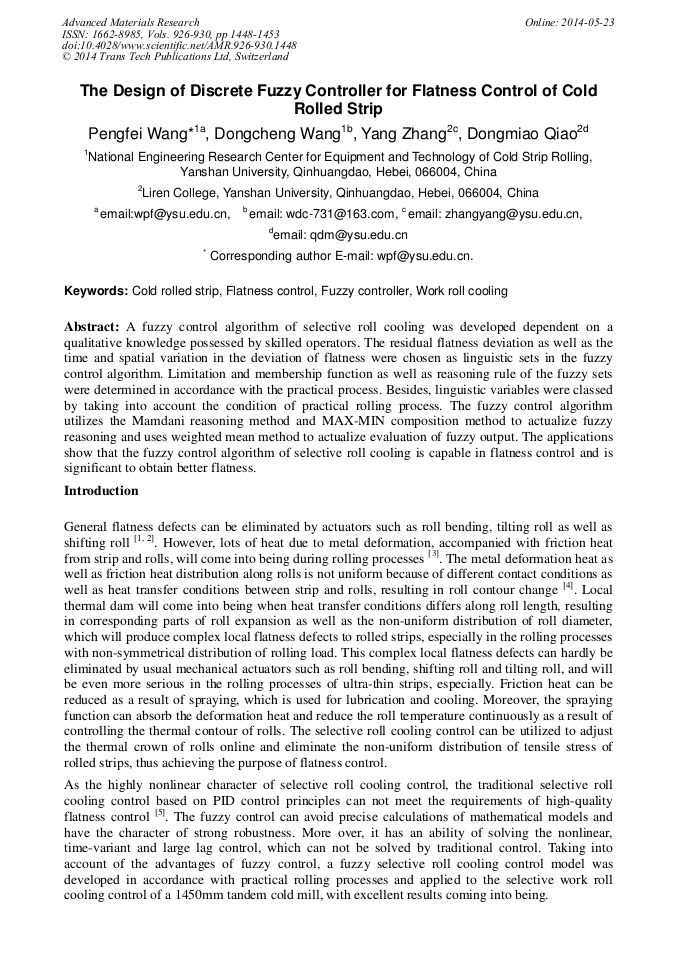

The Design of Discrete Fuzzy Controller for Flatness Control of Cold Rolled Strip

Abstract:

A fuzzy control algorithm of selective roll cooling was developed dependent on a qualitative knowledge possessed by skilled operators. The residual flatness deviation as well as the time and spatial variation in the deviation of flatness were chosen as linguistic sets in the fuzzy control algorithm. Limitation and membership function as well as reasoning rule of the fuzzy sets were determined in accordance with the practical process. Besides, linguistic variables were classed by taking into account the condition of practical rolling process. The fuzzy control algorithm utilizes the Mamdani reasoning method and MAX-MIN composition method to actualize fuzzy reasoning and uses weighted mean method to actualize evaluation of fuzzy output. The applications show that the fuzzy control algorithm of selective roll cooling is capable in flatness control and is significant to obtain better flatness.

• Periodical: Advanced Materials Research (Volumes 926-930)
• Pages: 1448-1453
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.926-930.1448
• Online since: May 2014
• Authors: Peng Fei Wang*, Dong Cheng Wang, Yang Zhang, Dong Miao Qiao
• Keywords: Cold Rolled Strip, Flatness Control, Fuzzy Controller, Work Roll Cooling

References

[1] Alberto Bemporad, Daniele Bernardini, Francesco Alessandro Cuzzola, et al. Optimization-based automatic flatness control in cold tandem rolling [J], Journal of Process Control, 2010, 20(4): 396-407.

DOI: 10.1016/j.jprocont.2010.02.003

[2] Liu Hong-min, He Hai-tao, Shan Xiu-ying, et al. Flatness control based on dynamic effective matrix for cold strip mills [J]. Chinese journal of mechanical engineering, 2009, 22(2): 287-296.

DOI: 10.3901/cjme.2009.02.287

[3] Xiong Fei, Li Shan-qing. Thermal process in cold rolling and its effect on strip flatness [J]. World Iron & Steel, 2010, (1): 60-64(In Chinese).

[4] YIN Feng-fu, LI Mou-wei, ZHU Qi-jian, et al. The simulation of influence on convective heat transfer in aluminum strip mill [J]. Metallurgical Equipment, 2002, (5): 6-9(In Chinese).

[5] HUR Yone-gi, CHOI Young-kiu. A Fuzzy Shape Control Method for Stainless Steel Strip on Sendzimir Rolling Mill [J], Journal of Iron and Steel Research, International, 2011, 18(3): 17-23.

DOI: 10.1016/s1006-706x(11)60031-9

[6] WANG Pengfei, LIU Hongmin, PENG Yan, et al. Actuator Efficiency Adaptive Flatness Control Model and Its Application in 1250 mm Reversible Cold Strip Mill[J], journal of iron and steel research, international, 2013, 20(6): 13-20.

DOI: 10.1016/s1006-706x(13)60105-3
