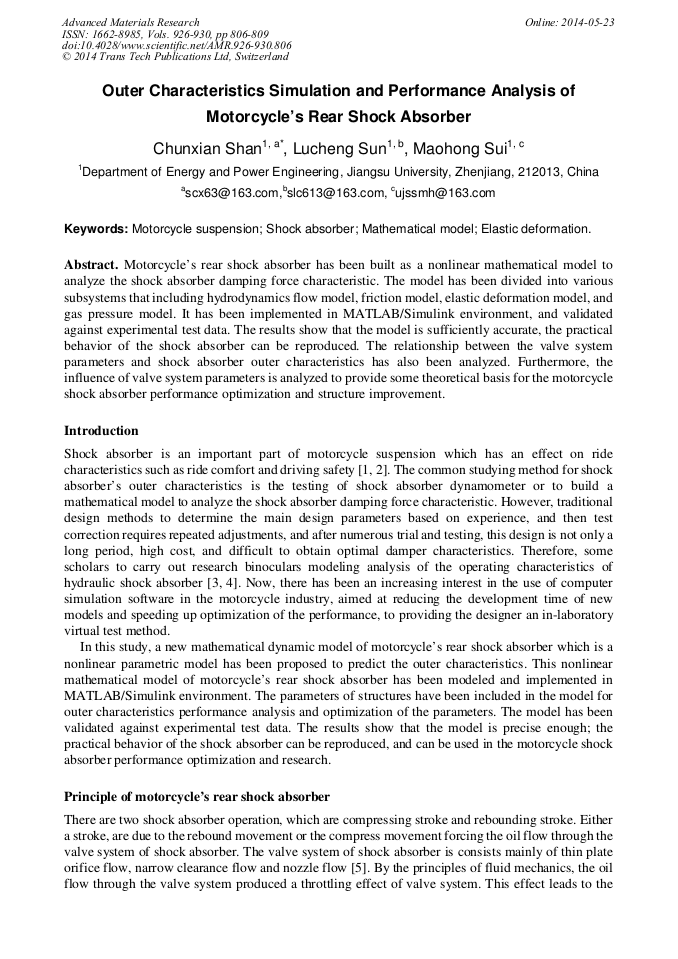

Outer Characteristics Simulation and Performance Analysis of Motorcycle’s Rear Shock Absorber

Abstract:

Motorcycle’s rear shock absorber has been built as a nonlinear mathematical model to analyze the shock absorber damping force characteristic. The model has been divided into various subsystems that including hydrodynamics flow model, friction model, elastic deformation model, and gas pressure model. It has been implemented in MATLAB/Simulink environment, and validated against experimental test data. The results show that the model is sufficiently accurate, the practical behavior of the shock absorber can be reproduced. The relationship between the valve system parameters and shock absorber outer characteristics has also been analyzed. Furthermore, the influence of valve system parameters is analyzed to provide some theoretical basis for the motorcycle shock absorber performance optimization and structure improvement.

• Periodical: Advanced Materials Research (Volumes 926-930)
• Pages: 806-809
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.926-930.806
• Online since: May 2014
• Authors: Chun Xian Shan*, Lu Cheng Sun, Mao Hong Sui
• Keywords: Elastic Deformation, Mathematical Models, Motorcycle Suspension, Shock Absorber

References

[1] Lu Zhenhua, Li Shimin, Technical status of dynamic simulation analysis developing for hydraulic shock absorber, Journal of Qinghua University. Beijing, vol. 42, p.1532–1536, November (2002).

[2] Li Shimin, Lu Zhenhua, Technology development of cylindrical fluid drag shock absorber for motor vehicle, Automobile Technology, Beijing, vol. 32, p.10–16, August (2001).

[3] L.H. Harvey. A study of the characteristics of automotive hydraulic dampers at high stroking frequencies [D]. Ph.D. Thesis, Department of Mechanical Engineering, University of Michigan, USA, December (1977).

[4] K. Reybrouck. A nonlinear parametric model of an automotive shock absorber [J]. Society of Automotive Engineers 940869 (1994) 79–86.

[5] Besinger F H, Cebon D, Cole D J. Damper models for heavy vehicle ride dynamics [J]. Vehicle SysDyna, 1995, 24: 35-64.

DOI: 10.1080/00423119508969081

[6] John C Dixon. The Shock Absorber Handbook [M]. Professional Engineering Publishing ltd. and John Wiley and Seas, ltd. (2007).

[7] Zhou Changcheng, Gu Liang, Superposition throttle slices opening size and characteristic test of telescope-damper, Chinese Journal of Mechanical Engineering, Beijing, vol. 43, p.210–215, June (2007).

DOI: 10.3901/jme.2007.06.210

[8] Zhou Changcheng, Gu Liang, Wang Li. Bending deformation and deformation coefficient for the throttle slice, Journal of Beijing University of Technology, Beijing, vol. 26, p.581–584, July (2006).
